Single Inverter Gate,74LVC1G04QC5G/TR Replace 74LVC1G04GW.
74LVC1G04QC5G
74LVC1G04QC5G.pdf
74LVC1G04QC5G.pdfFEATURES
• AEC-Q100 (Grade 1) Qualified for Automotive
Applications
TA = -40℃ to +125℃
• Wide Supply Voltage Range: 1.65V to 5.5V
• Inputs Accept Voltages up to 5.5V
• +24mA/-24mA Output Current at VCC = 3.3V
• Low Quiescent Current: ICC = 1μA (MAX)
• Propagation Delays:
4.5ns (MAX) at VCC = 3.3V and CL = 15pF
• Support Partial Power-Down Mode, Live
Insertion and Back-Drive Protection
• Latch-up Performance Exceeds 100mA
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SC70-5 and SOT-23-5 Packages

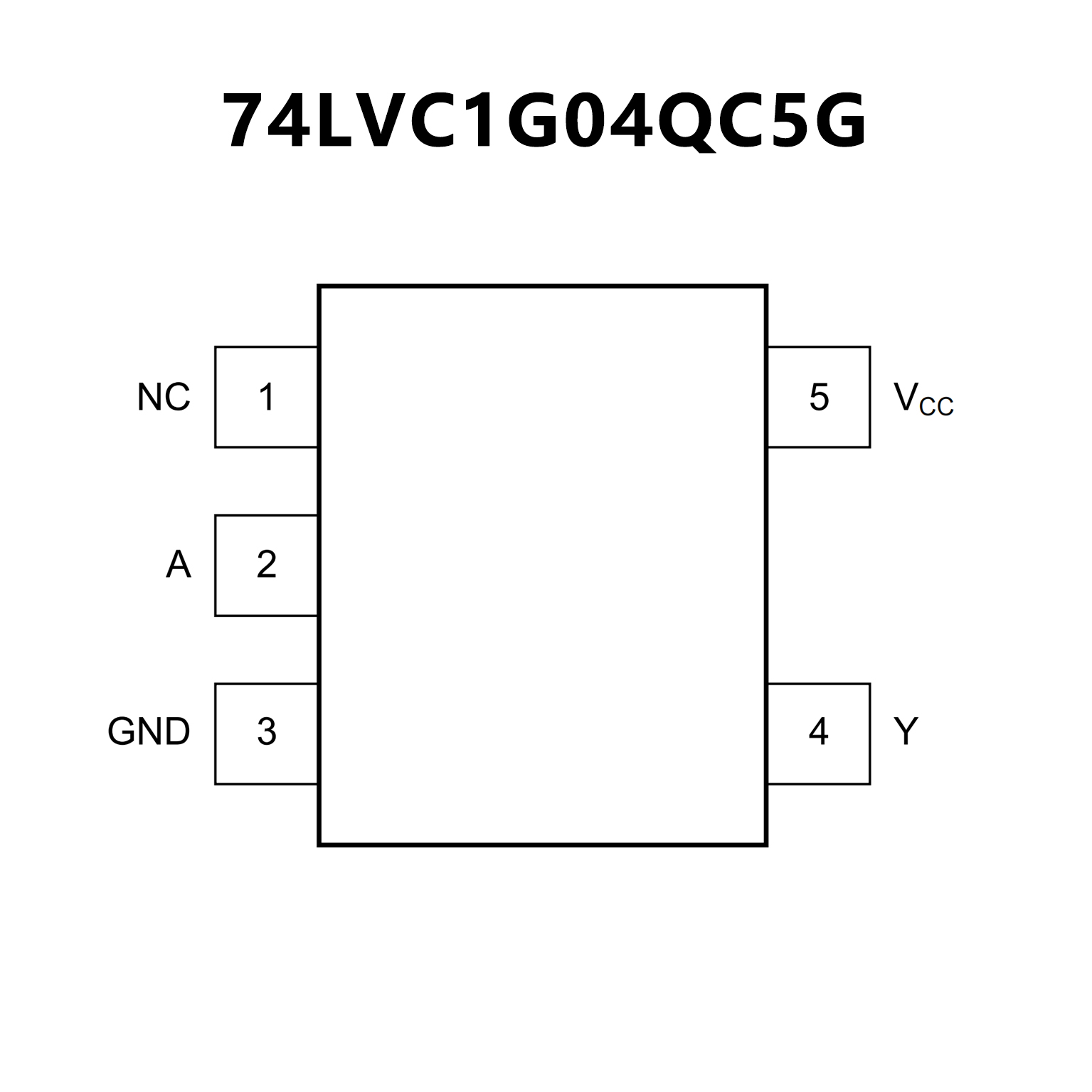

PIN CONFIGUTION
CROSS
FEATURES
• Wide supply voltage range from 1.65 V to 5.5 V
• Overvoltage tolerant inputs to 5.5 V
• High noise immunity
• CMOS low power dissipation
• IOFF circuitry provides partial Power-down mode operation
• ±24 mA output drive (VCC = 3.0 V)
• Latch-up performance exceeds 250 mA
• Direct interface with TTL levels
• Complies with JEDEC standard:
• JESD8-7 (1.65 V to 1.95 V)
• JESD8-5 (2.3 V to 2.7 V)
• JESD8C (2.7 V to 3.6 V)
• JESD36 (4.5 V to 5.5 V)
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 2000 V
• MM: JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 °C to +85 °C and -40 °C to +125 °C.

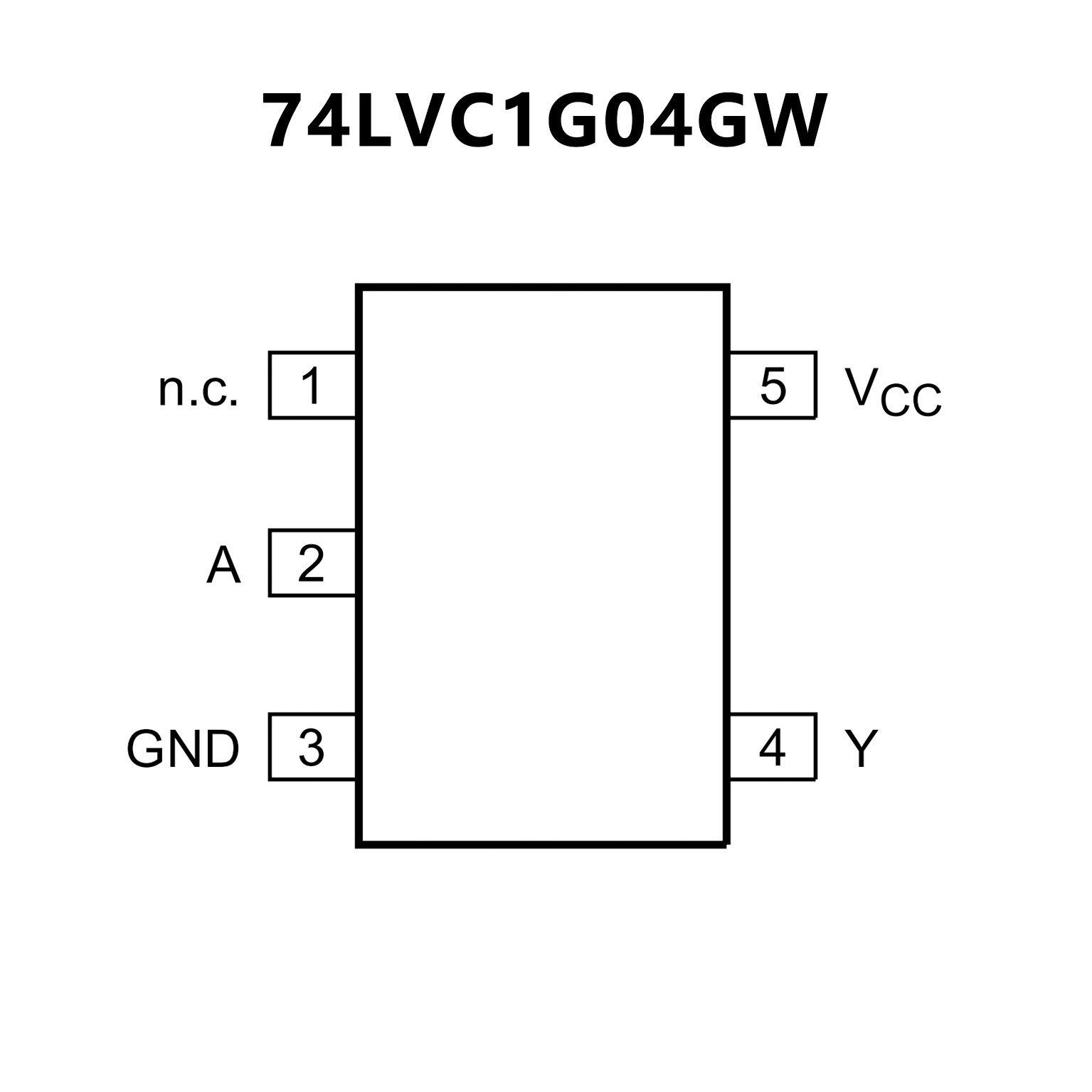

PIN CONFIGUTION
