Automotive Single 3-Input Positive AND Gate, 74LVC1G11QN6G/TR Replace 74LVC1G11GW.
74LVC1G11QN6G
74LVC1G11QN6G.pdf
74LVC1G11QN6G.pdfFEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Wide Supply Voltage Range: 1.65V to 5.5V
• Inputs Accept Voltages up to 5.5V
• +24mA/-24mA Output Current at VCC = 3.0V
• Low Quiescent Current: ICC = 0.1μA (TYP)
• Propagation Delay: 5.25ns (TYP) at VCC = 3.3V
• Support Partial Power-Down Mode
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SC70-6 and SOT-23-6 Packages

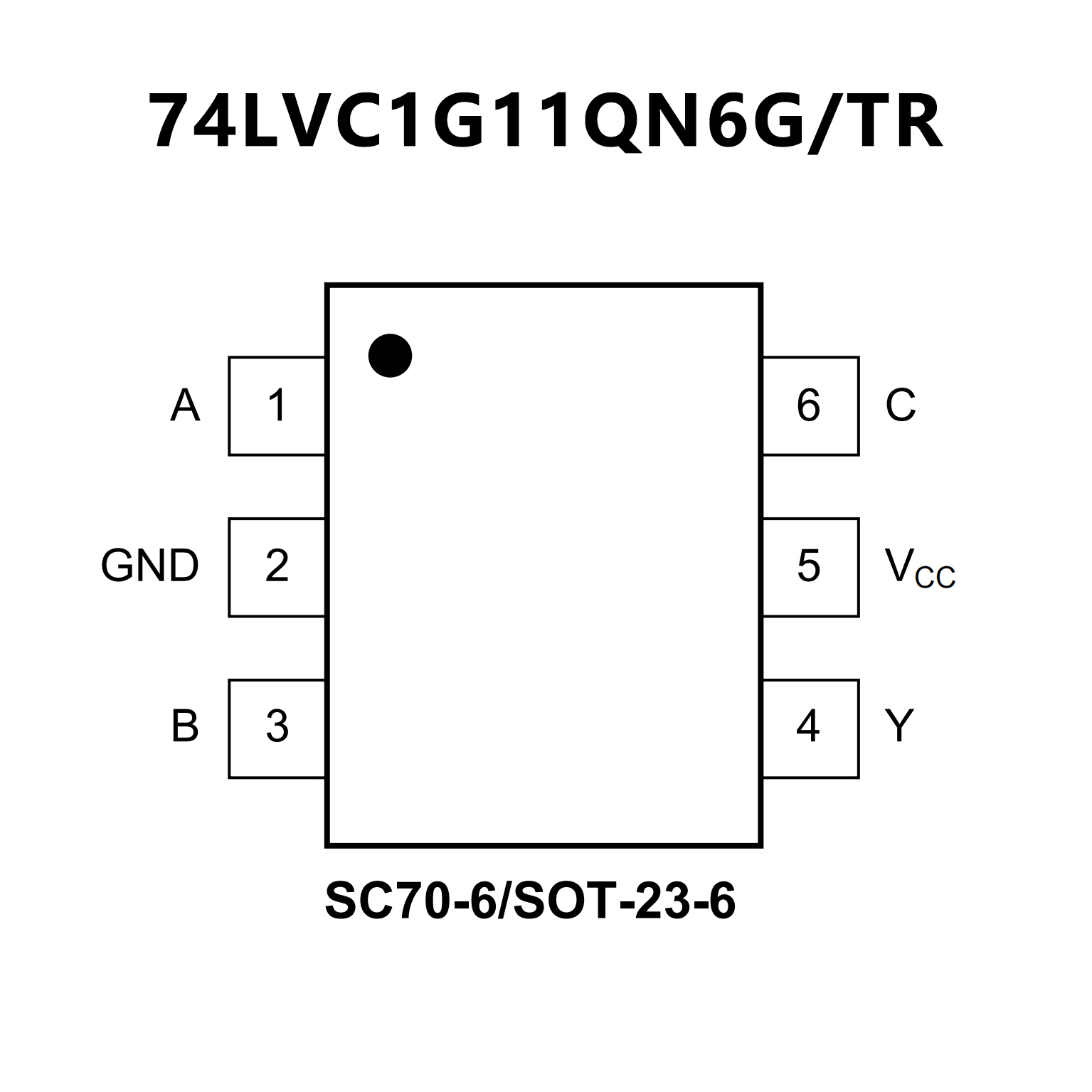

PIN CONFIGUTION
CROSS
FEATURES
• Wide supply voltage range from 1.65 V to 5.5 V
• Overvoltage tolerant inputs to 5.5 V
• High noise immunity
• ±24 mA output drive (VCC = 3.0 V)
• CMOS low power dissipation
• Direct interface with TTL levels
• IOFF circuitry provides partial
Power-down mode operation
• Latch-up performance exceeds 250 mA
• Complies with JEDEC standard:
• JESD8-7 (1.65 V to 1.95 V)
• JESD8-5 (2.3 V to 2.7 V)
• JESD8C (2.7 V to 3.6 V)
• JESD36 (4.5 V to 5.5 V)
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 °C to +85 °C and -40 °C to +125 °C

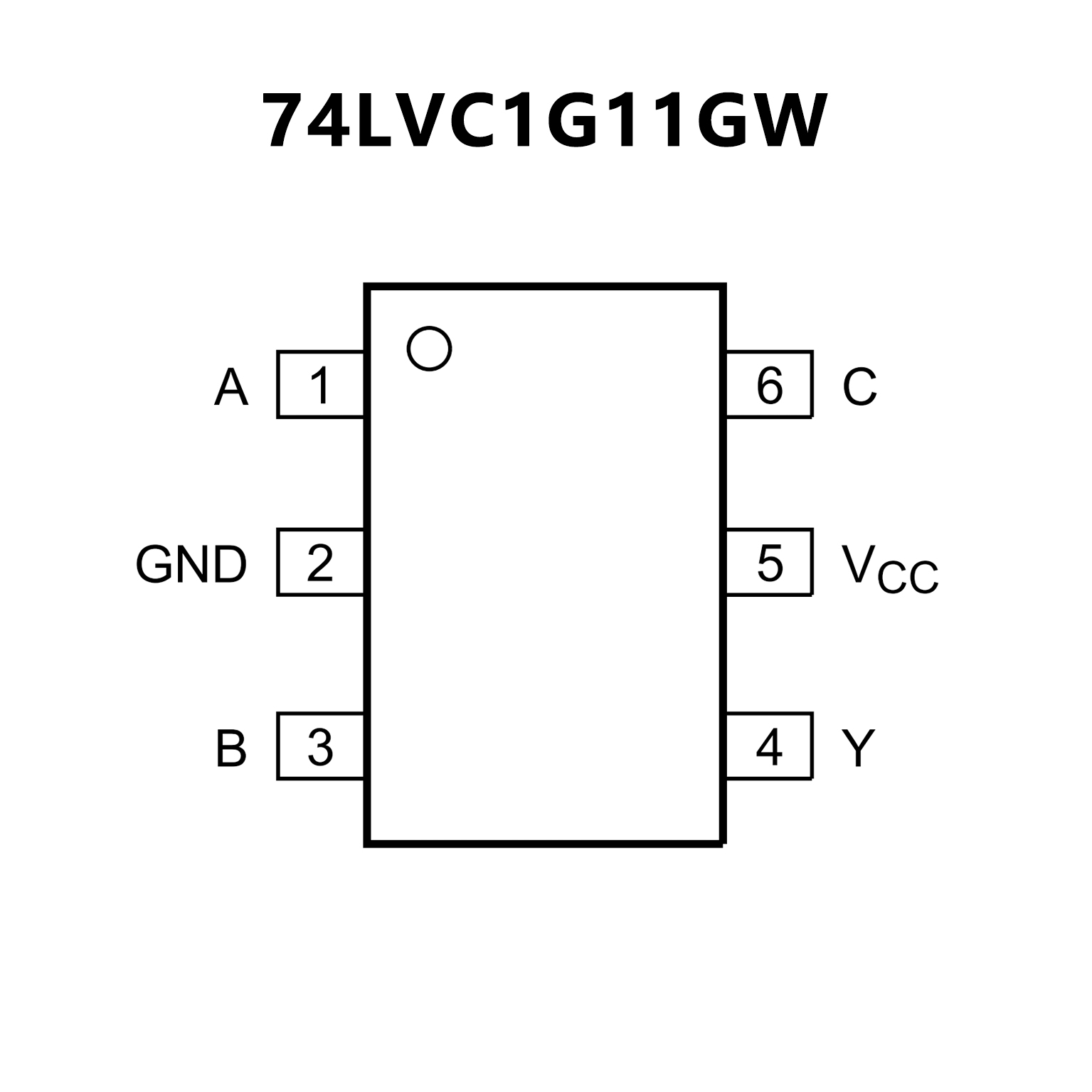

PIN CONFIGUTION
