Automotive Single Schmitt-Trigger Buffer,74LVC1G17QN5G 功能替代安世74LVC1G175GV-Q100.
74LVC1G17QN5G
74LVC1G17QN5G.pdf
74LVC1G17QN5G.pdfFEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Wide Supply Voltage Range: 1.65V to 5.5V
• Inputs Accept Voltages up to 5.5V
• +24mA/-24mA Output Current at VCC = 3.0V
• Low Quiescent Current: ICC = 0.1μA (TYP)
• Propagation Delay: 7.5ns (TYP) at VCC = 3.0V
• Support Partial Power-Down Mode
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SC70-5 and SOT-23-5 Packages

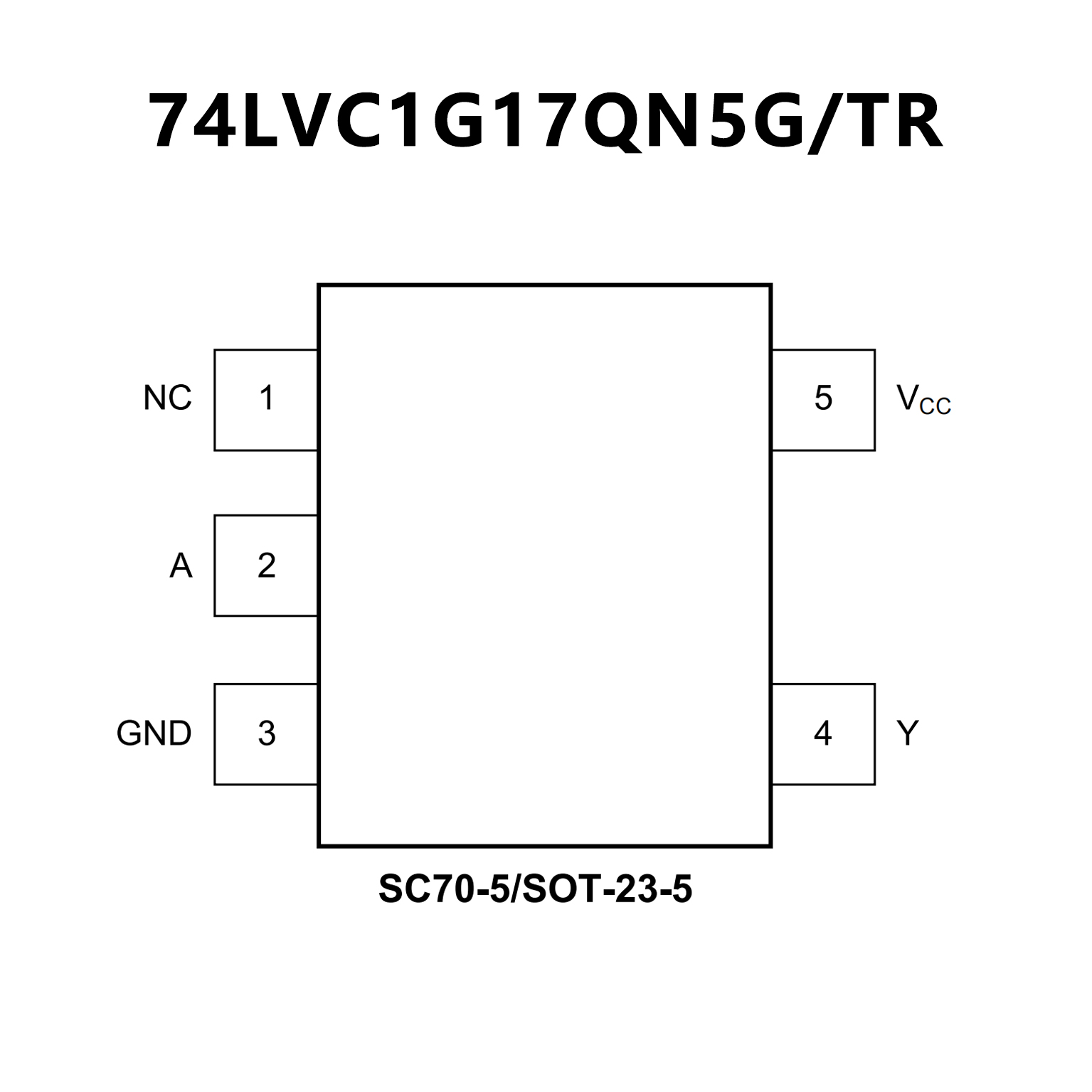

PIN CONFIGUTION
CROSS
FEATURES
• Automotive product qualification in accordance with
AEC-Q100 (Grade 1)
• Specified from -40°C to +85°C and from -40°C to +125°C
• Wide supply voltage range from 1.65V to 5.5V
• High noise immunity
• Overvoltage tolerant inputs to 5.5 V
• ±24 mA output drive (VCC = 3.0 V)
• CMOS low power dissipation
• Direct interface with TTL levels
• IOFF circuitry provides partial Power-down mode operation
• Latch-up performance exceeds 250 mA
• Complies with JEDEC standard:
• JESD8-7 (1.65 V to 1.95 V)
• JESD8-5 (2.3 V to 2.7 V)
• JESD8C (2.7 V to 3.6 V)
• JESD36 (4.5 V to 5.5 V)
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
• CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V

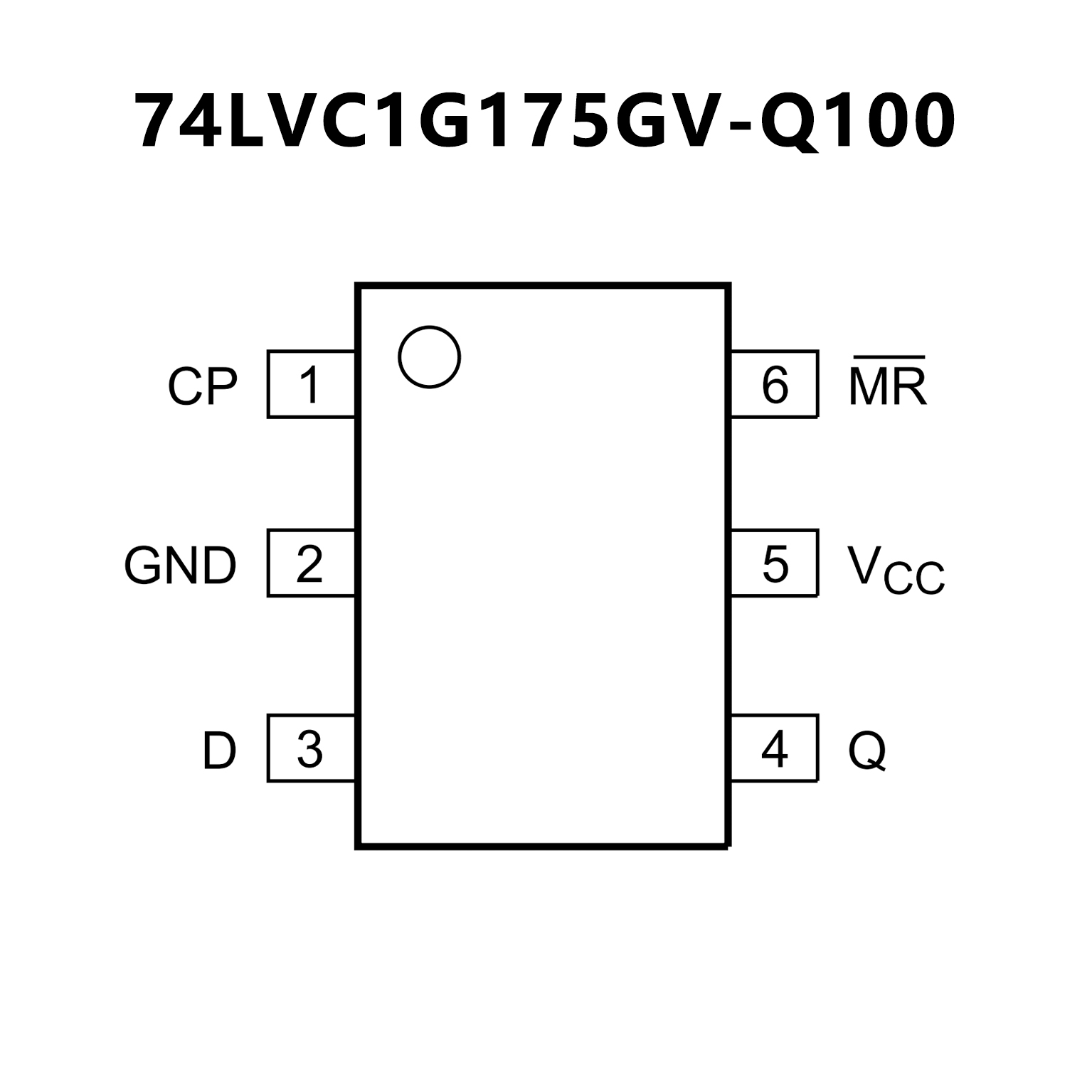

PIN CONFIGUTION
