Octal Buffer/Line Driverwith 3-State Outputs,74LVCN244 Replace MM74HCT244.
74LVCN244
74LVCN244.pdf
74LVCN244.pdfFEATURES
• 5V Tolerant Inputs/Outputs for Interfacing with5V Logic
• Wide Supply Voltage Range: 1.2V to 3.6V
• CMOS Low-Power Consumption
• Direct Interface with TTL Levels
• Inputs Accept Voltages up to 5.5V
• High-Impedance When VCC = 0V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-20 Package

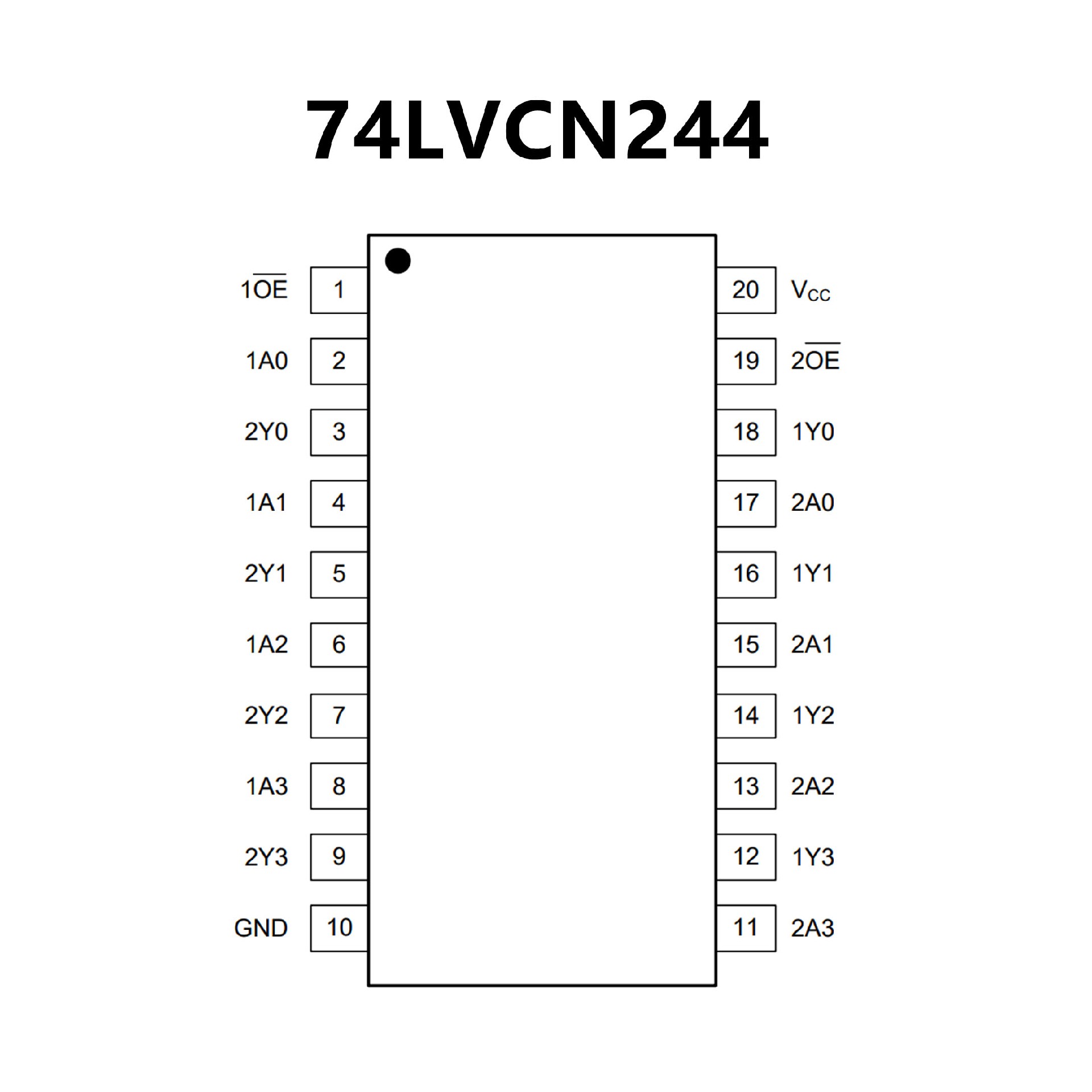

PIN CONFIGUTION
CROSS
FEATURES
• TTL input compatible
• Typical propagation delay: 14 ns
• 3-STATE outputs for connection to system buses
• Low quiescent current: 80 PA
• High output drive current: 6 mA (min)

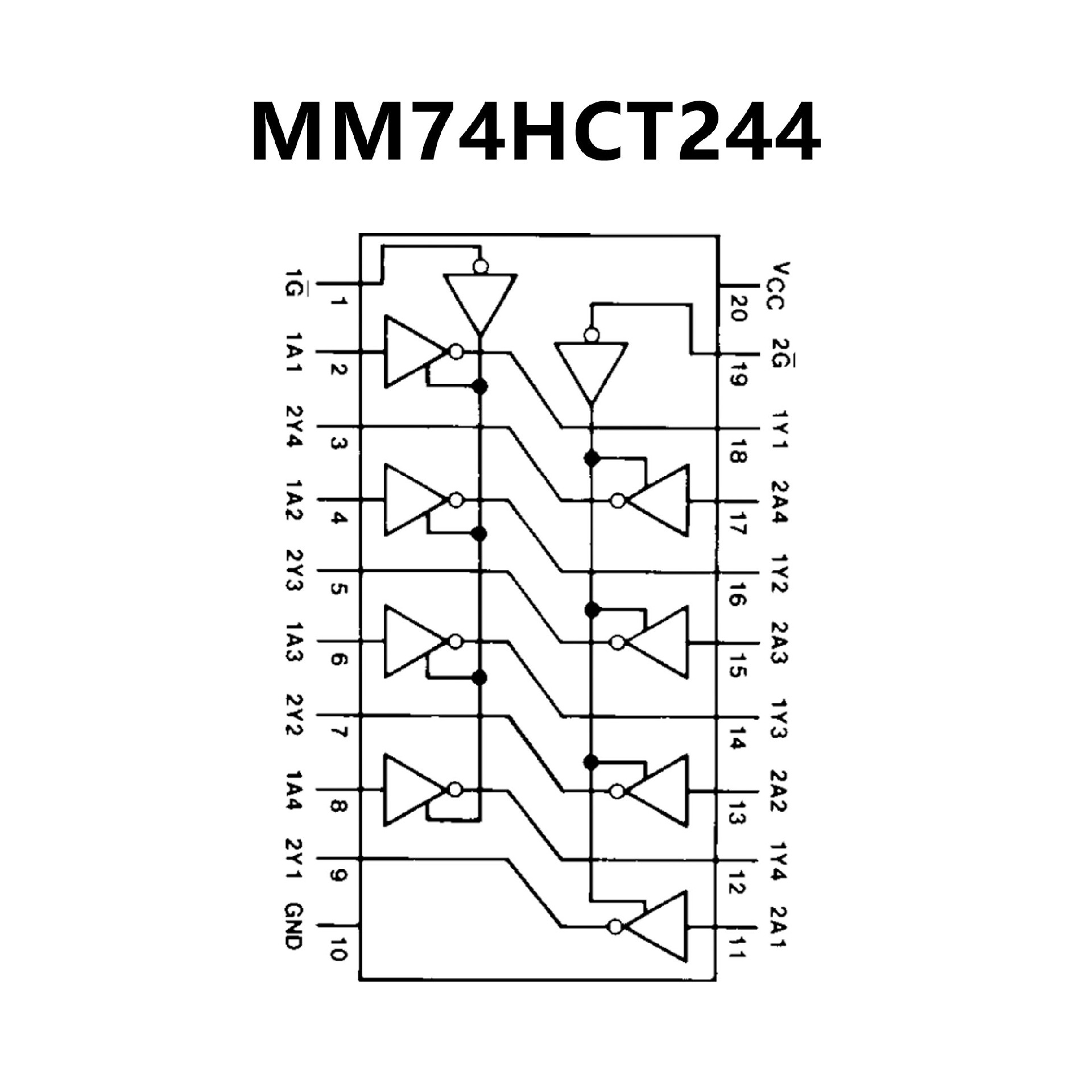

PIN CONFIGUTION
