20V,250mA Low Consumption LDO in SOT89, ACP1233 Replace XC6202.
ACP1233
ACP1233.pdf
ACP1233.pdfFEATURES
• Input Voltage Range: 2.5V to 16V
• Maximum Output Current: 250mA
• VOUT Range: 1.2V to 5V
• Maximum Output Current: 250mA
• Highly Accurate: ±2%
• Output Current Limit: 500mA
• Foldback Short Circuit Current: 85mA
• Small Dropout Voltage:
211mV@100mA (VOUT = 3.3V)
418mV@200mA (VOUT = 3.3V)
PIN CONFIGUTION
CROSS
FEATURES
• Maximum Output Current : 150mA (within Pd)
• Maximum Operational Voltage : 20V
• Output Voltage Range : 1.8V ~ 18V (0.1V increments)
• Highly Accurate : ±2%
• Low Power Consumption : 10μA (TYP.)
• Line Regulation : 0.01% / V (TYP.)
• Dropout Voltage : 200mV @ 30mA
670mV@100mA
• Operational Temperature Range : -40℃ ~ 85℃
• Low ESR Capacitor Compatible : Ceramic capacitor

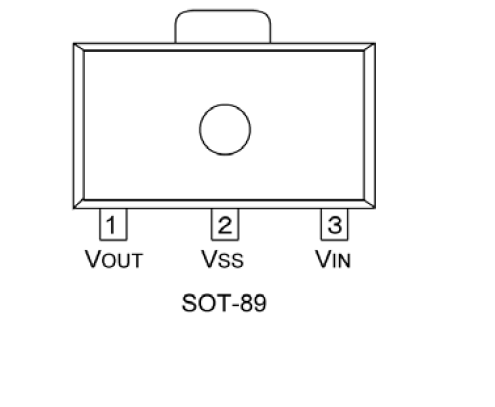

PIN CONFIGUTION
