ACP2829.pdf• VIN : 4.2V to 18V
• Output Voltage (VOUT) : 0.8V to 7V
• 2A Continuous Output Current
• 0.8V ± 1% Reference Voltage
• 150μA Low Quiescent Current
• 750KHz Switching Frequency (VIN = 12V, VOUT= 5V)
• Typically 85% Efficiency at 5mA Light Load
• Proprietary Gate Driver Design for Best EMI Reduction
• Under Voltage Lockout (UVLO)
• Cycle-by-Cycle Valley Current Limit
• Thermal Shutdown
• Wide 4.7V-to-16V Operating Input Range
• 163mΩ/86mΩ Low-RDS(ON) Internal Power MOSFETs
• Proprietary Switching-Loss–Reduction Technique
• High-Efficiency Synchronous-Mode Operation
• Fixed 500kHz Switching Frequency
• AAM Power-Save Mode for High Efficiency at Light Load
• Internal Soft-Start
• Over-Current Protection and Hiccup
• Thermal Shutdown
• Output Adjustable from 0.8V

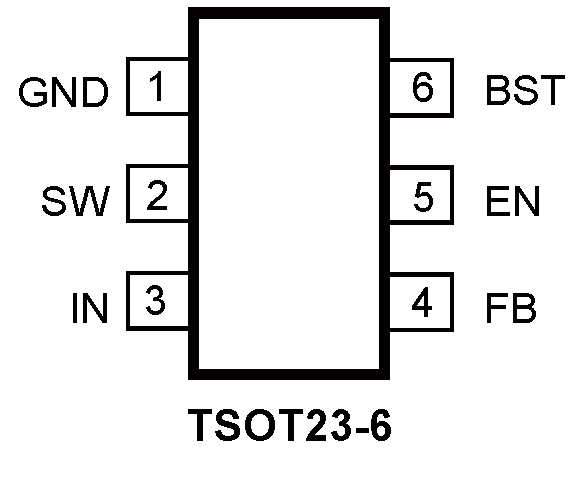

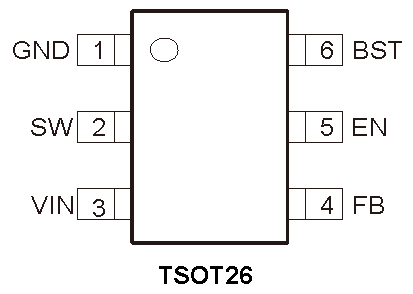

• Available in a 6-pin TSOT-23 package
