30V P-Channel MOSFET, AMP3407 Replace AO3403.
AMP3407
AMP3407.pdf
AMP3407.pdfFEATURES
• RDS(on)= Typ 42mΩ @VGS= -10V
• RDS(on)= Typ 62mΩ @VGS= -4.5V
• Pb-Free, RoHS Compliant
• Surface mount package
• channel switch with low RDS(on)
• Advanced trench technology

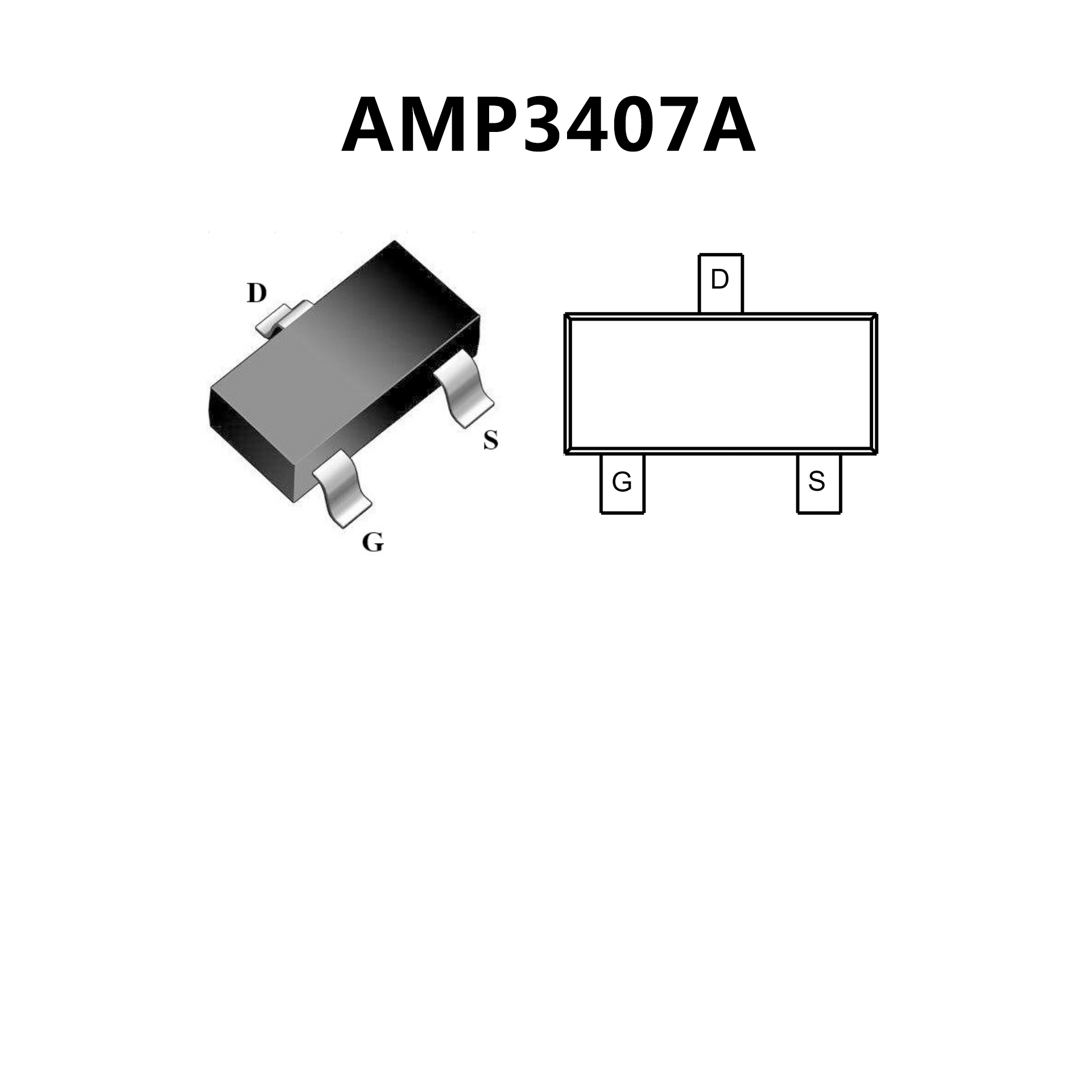

PIN CONFIGUTION
CROSS
FEATURES
• VDS -30
• ID (at VGS=-10V) -2.6A
• RDS(ON) (at VGS=-10V) < 115mΩ
• RDS(ON) (at VGS =-4.5V) < 150mΩ
• RDS(ON) (at VGS =-2.5V) < 200mΩ

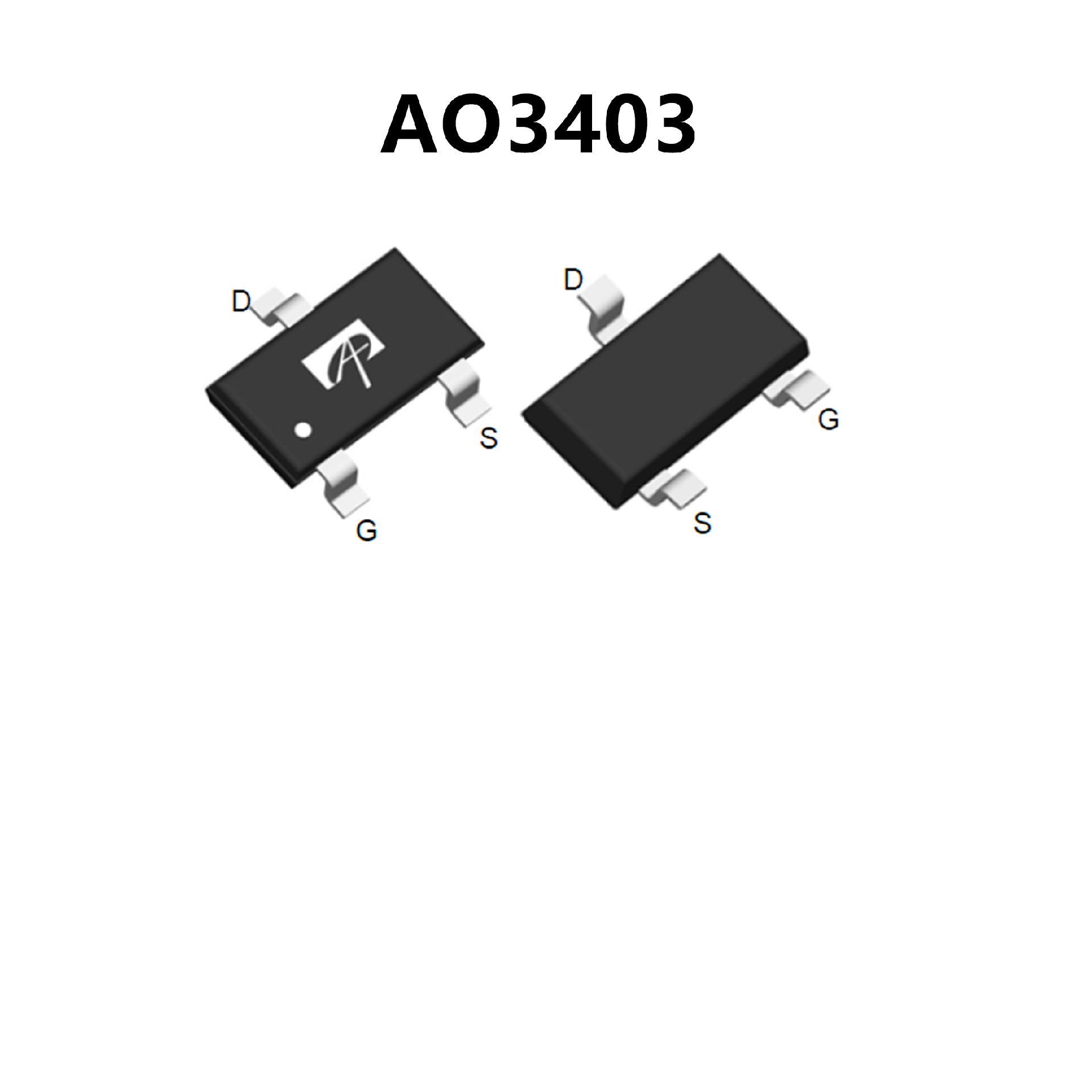

PIN CONFIGUTION
