PRE Biased NPN 150mW SOT-523 R1=47K R2=22K, Replace DTC144WET1G
DDTC144WE-7-F
DDTC144WE-7-F.pdf
DDTC144WE-7-F.pdfFEATURES
• Epitaxial Planar Die Construction
• Complementary PNP Types Available (DDTA)
• Built-In Biasing Resistors, R1≠R2

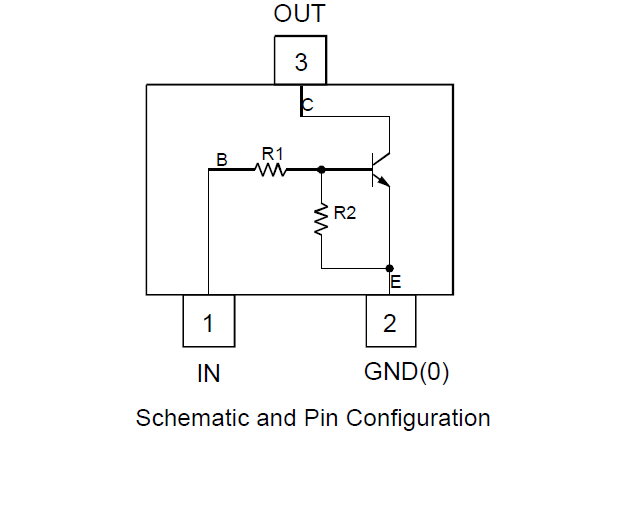

PIN CONFIGUTION
CROSS
FEATURES
• Simplifies Circuit Design
• Reduces Board Space
• Reduces Component Count
• We declare that the material of product compliance with
RoHS requirements.
PIN CONFIGUTION
