20V P-CHANNEL ENHANCEMENT MODE MOSFET,DMP2010UFV Replace Si7655ADN.
DMP2010UFV
DMP2010UFV.pdf
DMP2010UFV.pdfFEATURES
• Low RDS(ON) – Ensures On State Losses Are Minimized
• Small Form Factor Thermally Efficient Package Enables
Higher Density End Products
• Occupies Just 33% of The Board Area Occupied by SO-8
Enabling Smaller End Product
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

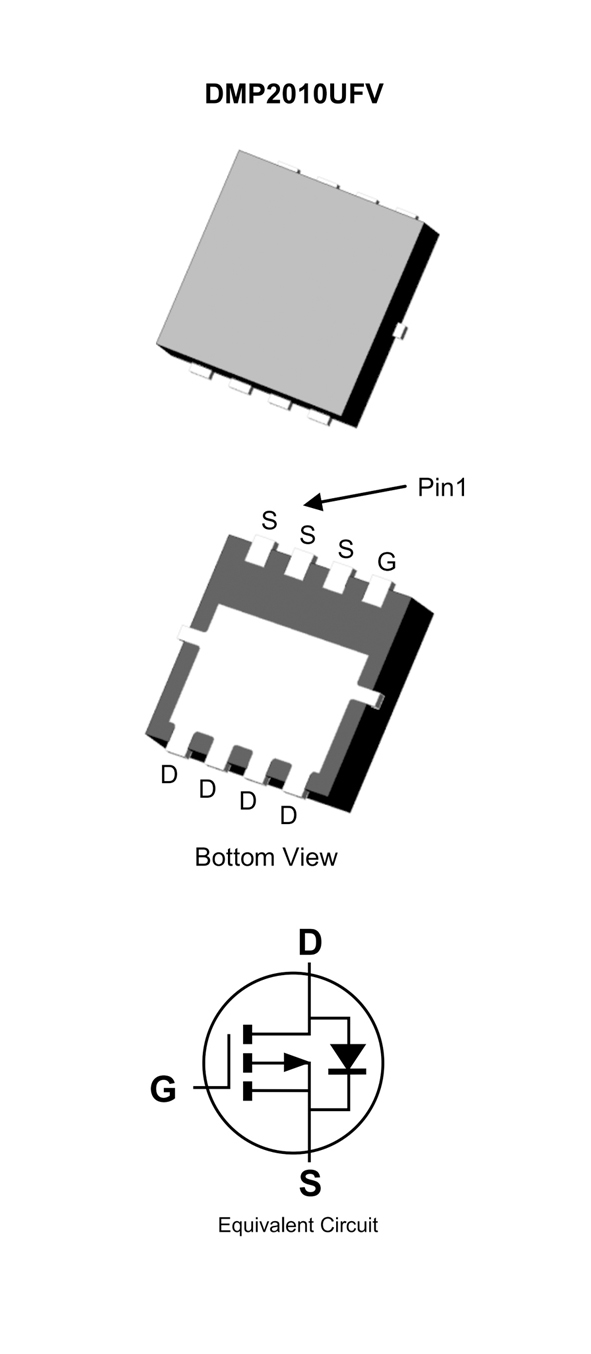

PIN CONFIGUTION
CROSS
FEATURES
• TrenchFET Power MOSFET
• Low Thermal Resistance PowerPAK Package
with Small Size and Low 0.75 mm Profile
• 100 % Rg and UIS Tested
PIN CONFIGUTION
