Advanced Stereo Headphone Amplifier, EUA6211 Replace MAX9724C.
EUA6211
EUA6211.pdf
EUA6211.pdfFEATURES
• No Bulky DC-Blocking Capacitors Required
• 2.5V to 5.5V Operation
• Fixed -1.5V/V Gain
• Low 0.03% THD+N
• High PSRR (80dB at 1kHz)
• Integrated Click-and-Pop Suppression
• Low Quiescent Current (3.8mA)
• Low-Power Shutdown Mode, < 0.1µA
• SNR>105dB
• Typical Vn<10µVms 20Hz-20kHz
• THD+N<0.005% at 10kΩ Load
• 2Vrms Output Voltage Into 600Ω Load
• Short Circuit and Thermal Protection
• ±8kV HBM ESD-Protected Outputs
• Available in TDFN-12 Package
• RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

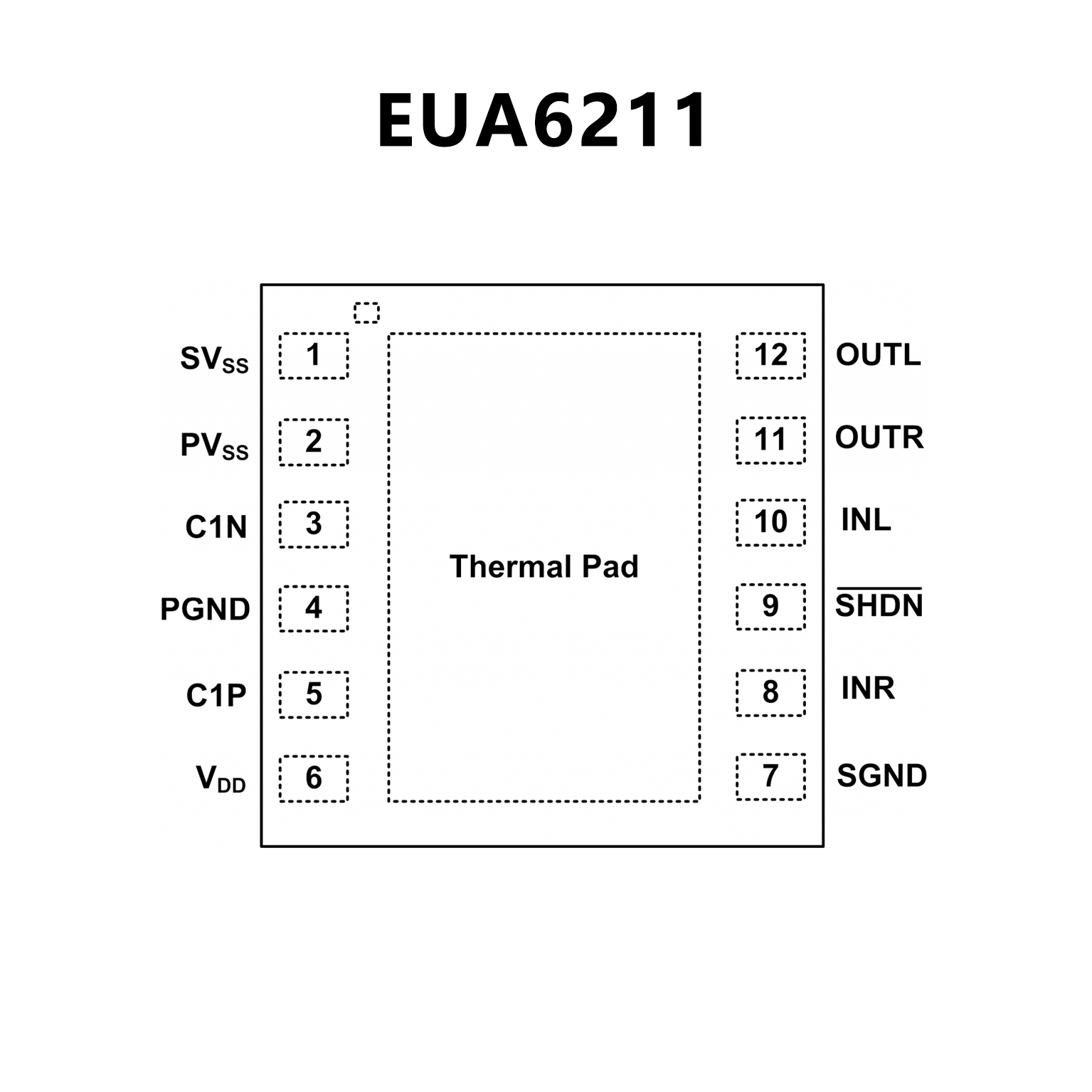

PIN CONFIGUTION
CROSS
FEATURES
• Improved RF Noise Rejection (Up to 67dB Over
Typical Amplifiers)
• No Bulky DC-Blocking Capacitors Required
• Low-Power Shutdown Mode, < 0.1µA
• Adjustable Gain (MAX9724C) or Fixed -1.5V/V
Gain (MAX9724D)
• Low 0.02% THD+N
• High PSRR (80dB at 1kHz) Eliminates LDO
• Integrated Click-and-Pop Suppression
• 2.5V to 5.5V Single-Supply Operation
• Low Quiescent Current (3.5mA)
• Available in Space-Saving Packages
12-Bump UCSP (1.5mm x 2mm)
12-Pin Thin QFN (3mm x 3mm x 0.8mm)

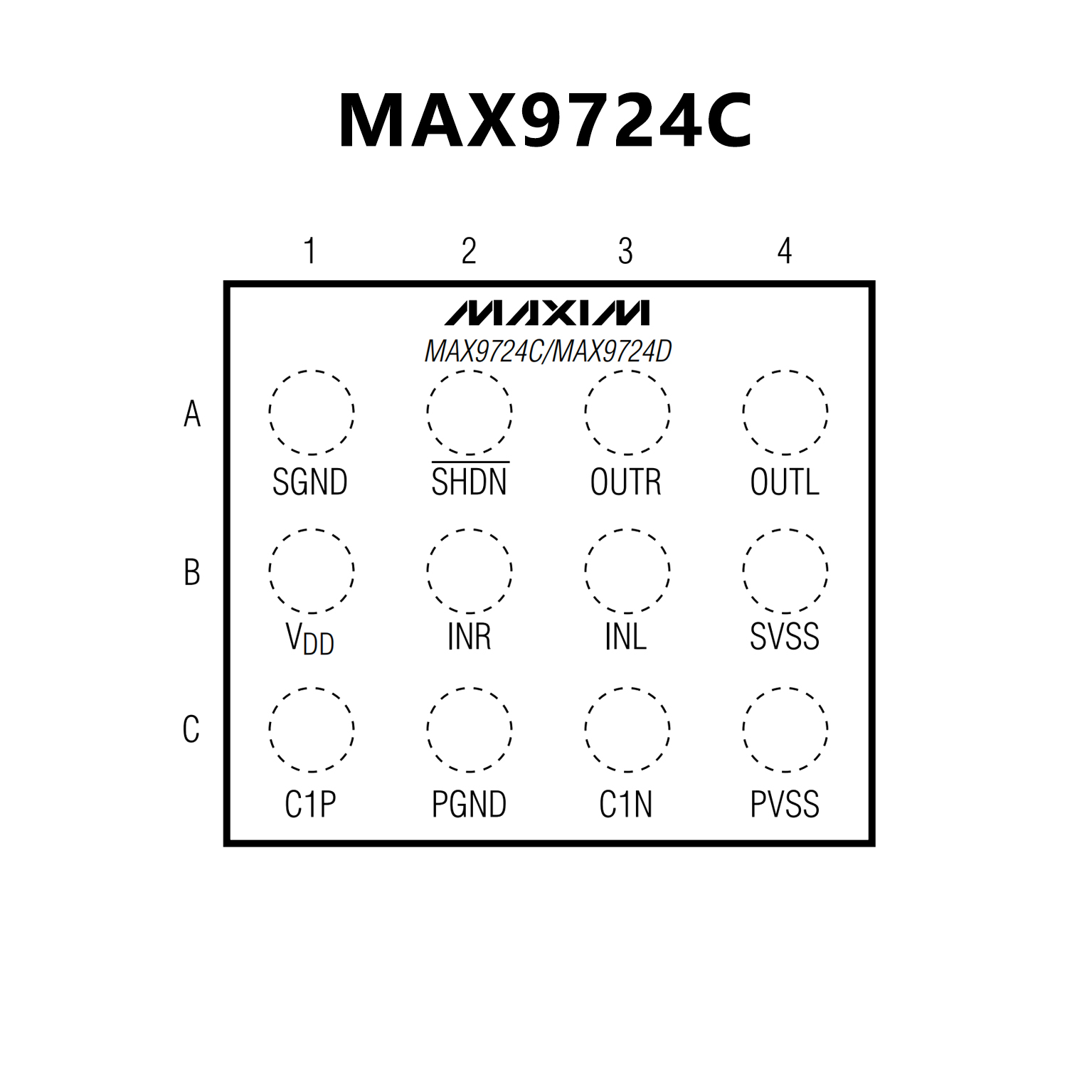

PIN CONFIGUTION
