16V Low Noise Single Coil Motor Driver, EUM6830 Replace MLX90287.
EUM6830
EUM6830.pdf
EUM6830.pdfFEATURES
• All-In-One fan driver, including high sensitivity
Hall-effect sensor
• Wide Input Range 3.5V ~ 16V
• Accepts wide input frequency range
• Built-in pull up resistor on PWM
• Intelligent soft start suppresses high peak current
during start-up
• PWM speed control with minimum speed setting
• Soft switch for low noise operation over wide speed
range
• High magnetic sensitivity:±3mT
• Protections
UVLO
LRP
Thermal Protection
Reverse Voltage Protection
• High ESD rating:±8kV
• Available in SOP-8 Package

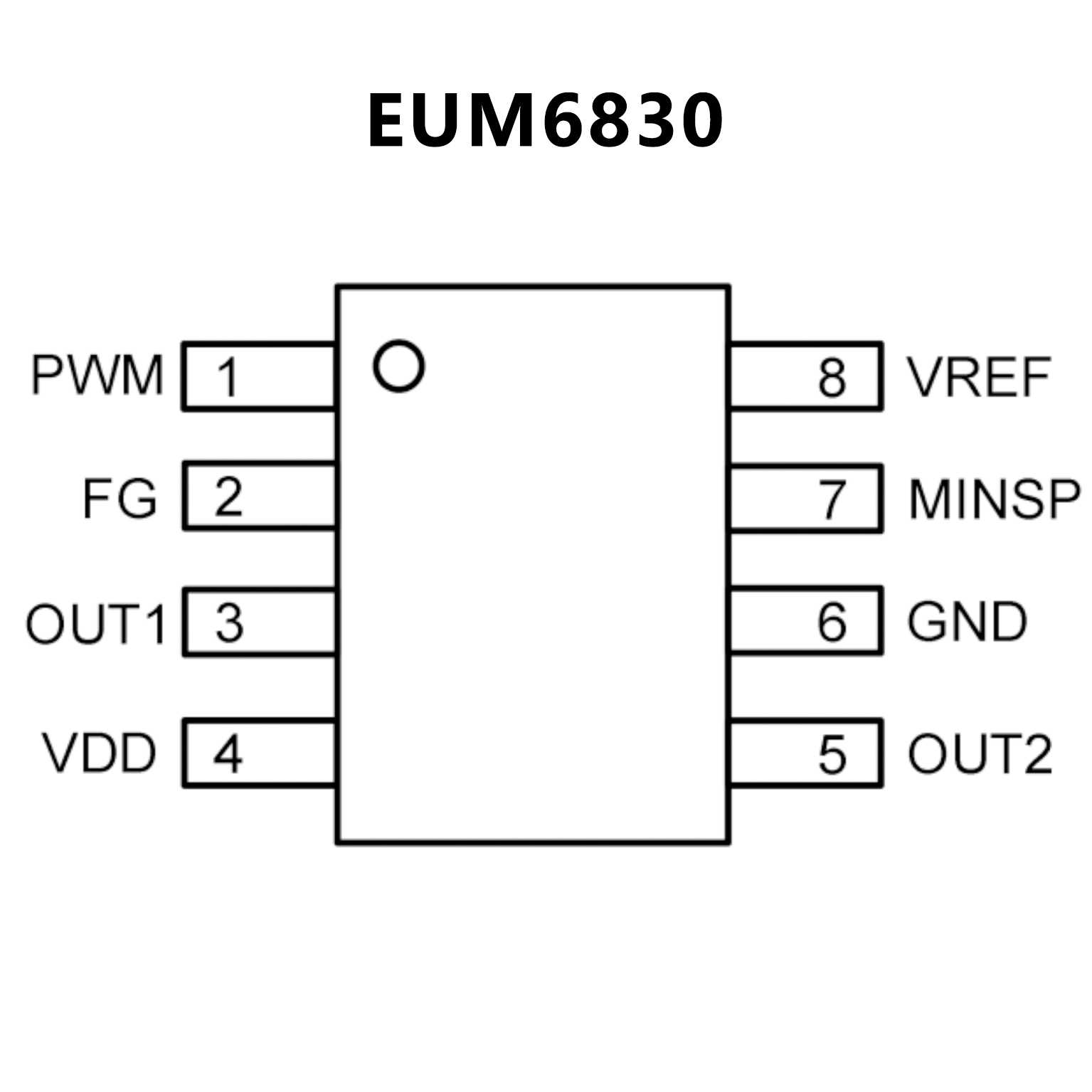

PIN CONFIGUTION
CROSS
FEATURES
• Full integrated fan driver including hall position sensor
• High magnetic sensitivity
• High output current
• PWM speed control with minimum speed setting
• Accepts wide input frequency range, and converts to
fixed 30kHz output frequency
• Built-in pull up resistor on PWM input ensures fail safe
operation in case of broken wire
• Protections: Reverse voltage, Brown out, Thermal
Protection, LRP, high ESD rating
• Automatic Gain Control (AGC) based soft switching for
low noise operation over wide speed range
• Intelligent Soft Start suppresses high peak currents during
start up
• Qualified according to AEC-Q100.

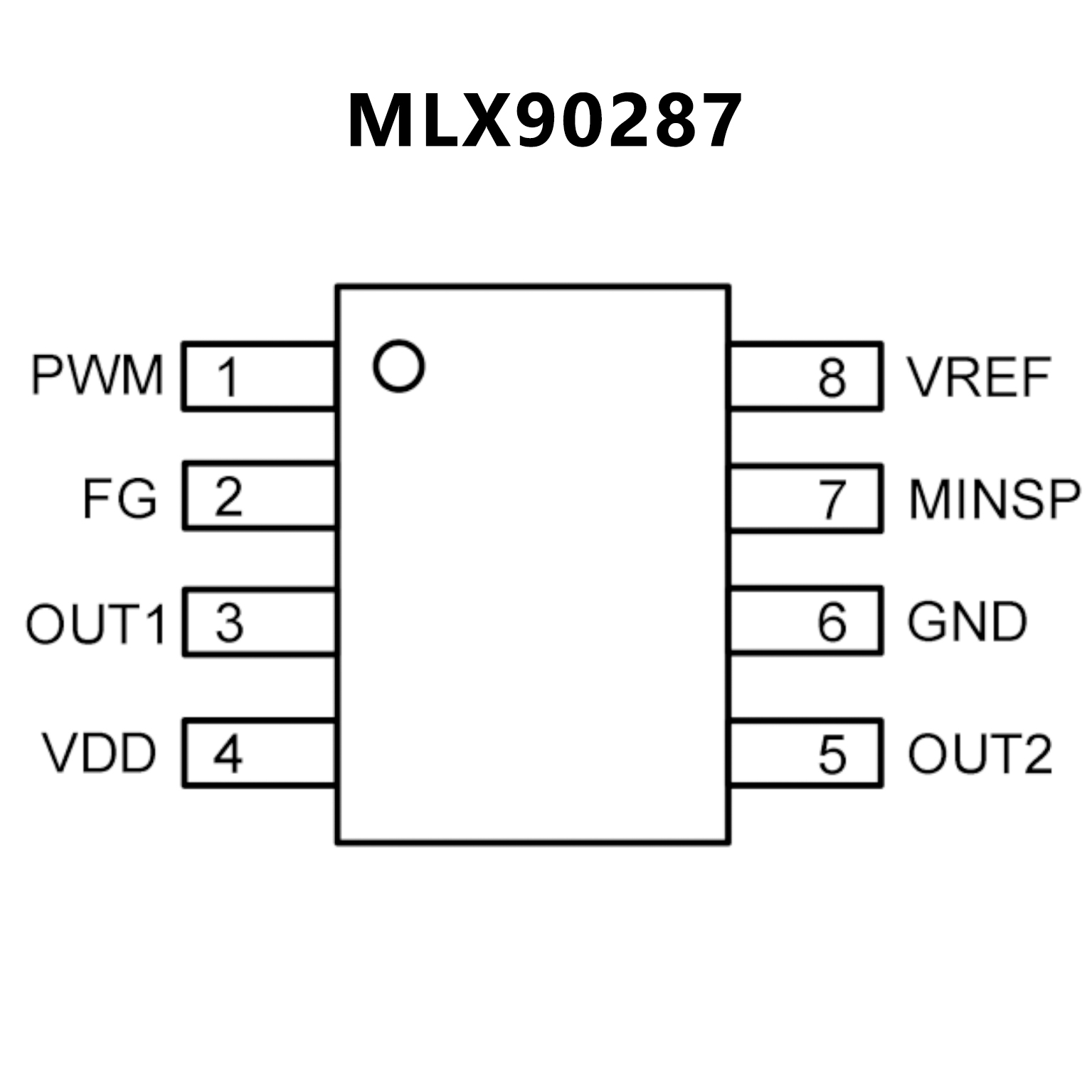

PIN CONFIGUTION
