1.5MHz, 5.5V, 1.5A Synchronous Step-Down Converter, EUP3080A Replace TLV62568.
EUP3080A
EUP3080A.pdf
EUP3080A.pdfFEATURES
• Wide Input Voltage Range: 2.5V to 5.5V
• Output Voltage as Low as 0.6V
• High Efficiency: Up to 96%
• 1.5MHz Constant Frequency Operation
• Up to 1.5A Output Current(@Vout=1.2V)
• No Schottky Diode Required
• 100% Duty Cycle in Dropout
• Low Quiescent Current: 50µA
• Slope Compensated Current Mode Control for
Excellent Line and Load Transient Response
• Short Circuit Protection
• Thermal Fault Protection
• Inrush Current Limit and Soft Start
• Build in Input Over Voltage Protection
• <1µA Shutdown Current
• Available in SOT23-5 Package

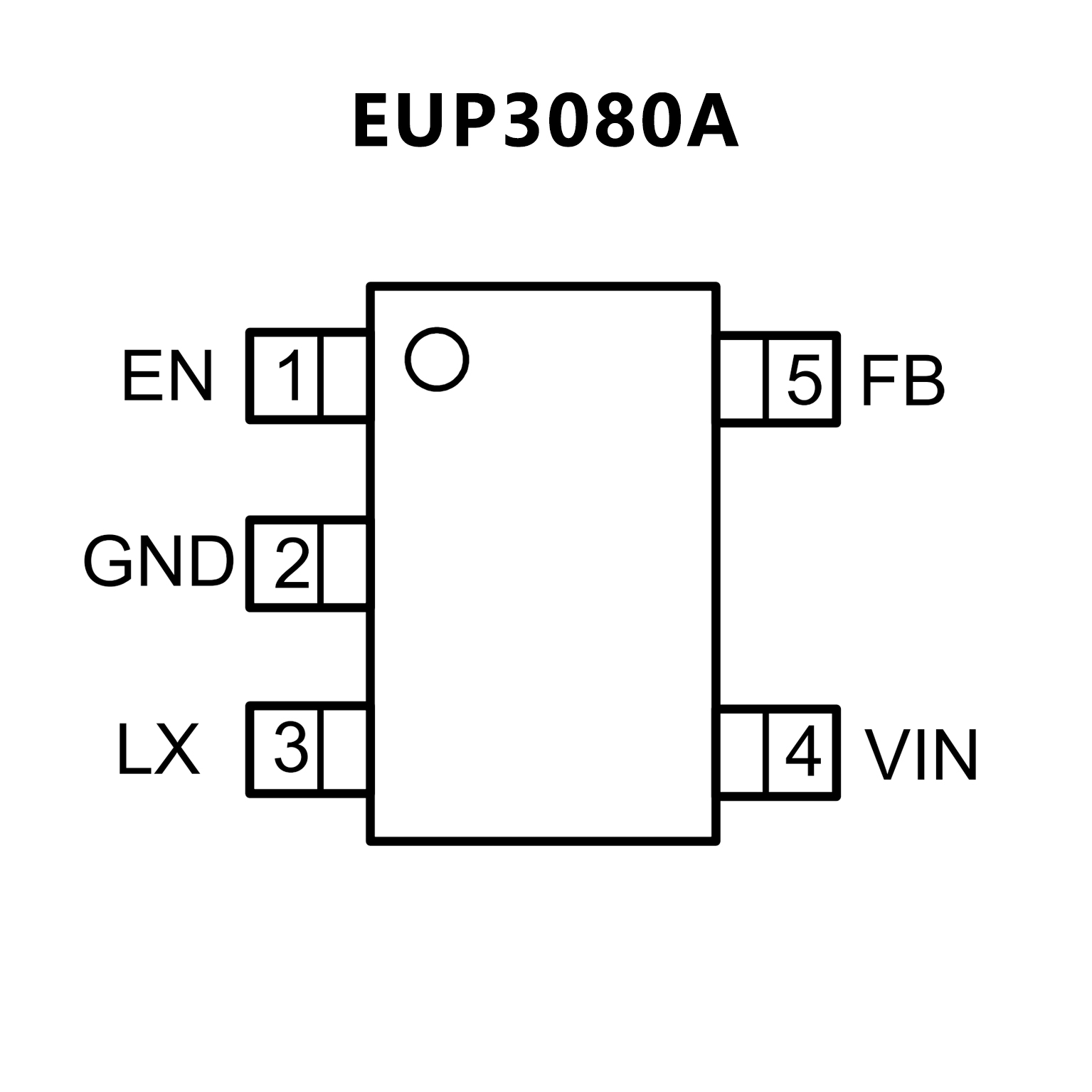

PIN CONFIGUTION
CROSS
FEATURES
• Up to 95% Efficiency
• Low RDS(ON) Switches 150 mΩ / 100 mΩ
• 2.5-V to 5.5-V Input Voltage Range
• Adjustable Output Voltage from 0.6 V to VIN
• Power Save Mode for Light Load Efficiency
• 100% Duty Cycle for Lowest Dropout
• 35-μA Operating Quiescent Current
• 1.5-MHz Switching Frequency
• Power Good Output
• Over Current Protection
• Internal Soft Startup
• Thermal Shutdown Protection

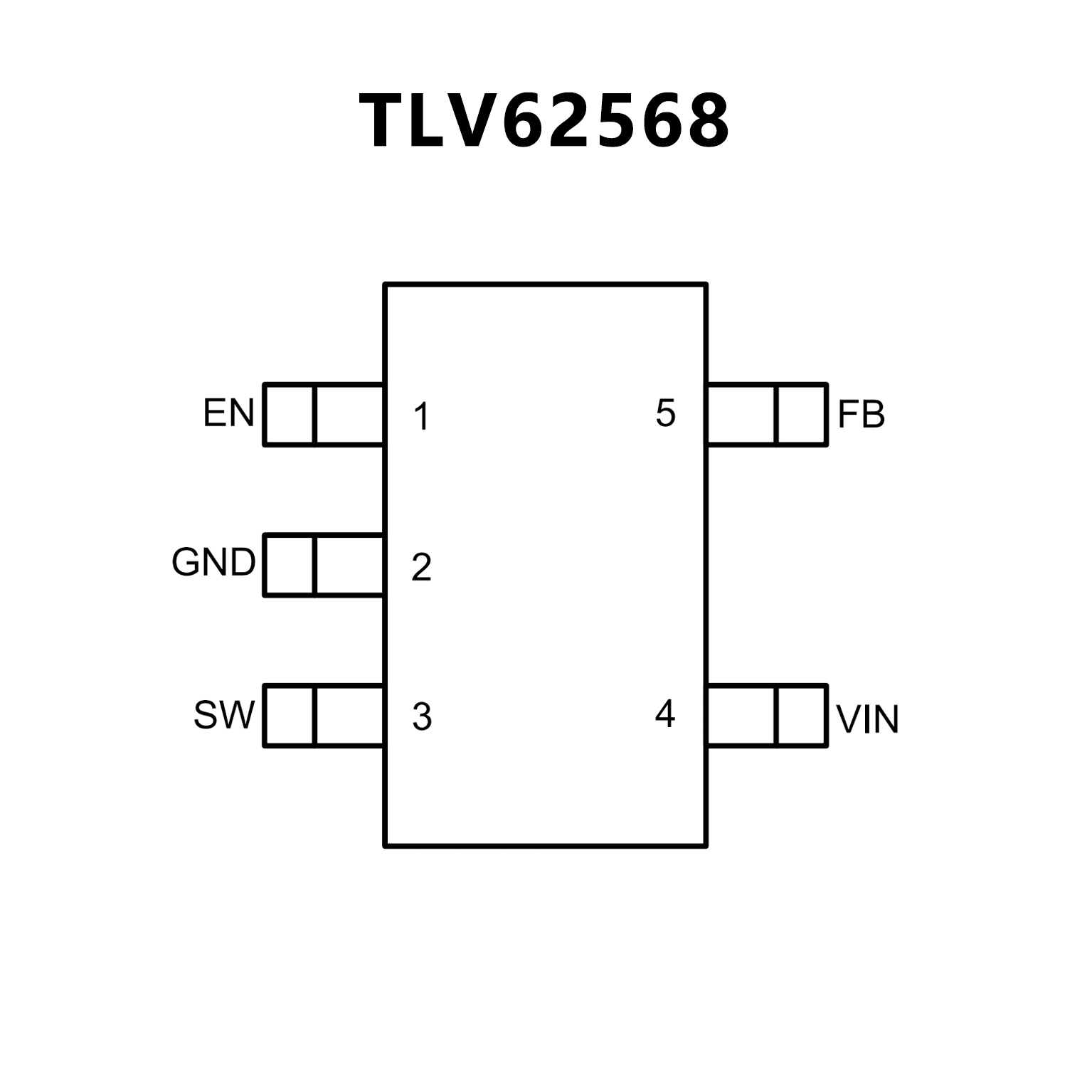

PIN CONFIGUTION
