1MHz, 3A Synchronous Step-Down Converter with Soft Start, EUP3083 Replace JW5213.
EUP3083
EUP3083.pdf
EUP3083.pdfFEATURES
• High Efficiency up to 95%
• Low RDSON for internal switches:
High-side: 100mΩ
Low-side: 60mΩ
• 2.7V to 5.5V Input Voltage Range
• 3A Available Load Current
• 30µA Typical Quiescent Current
• 1MHz Constant Switching Frequency
• Adjustable Output Voltage as Low as 0.6V
• 100% Duty Cycle Low Dropout Operation
• Short Circuit and Thermal Protection
• Excellent Line and Load Transient Response
• Soft Start Function
• Power Good
• Available in TDFN-8L(2×2) Package
• RoHS Compliant and Halogen-Free

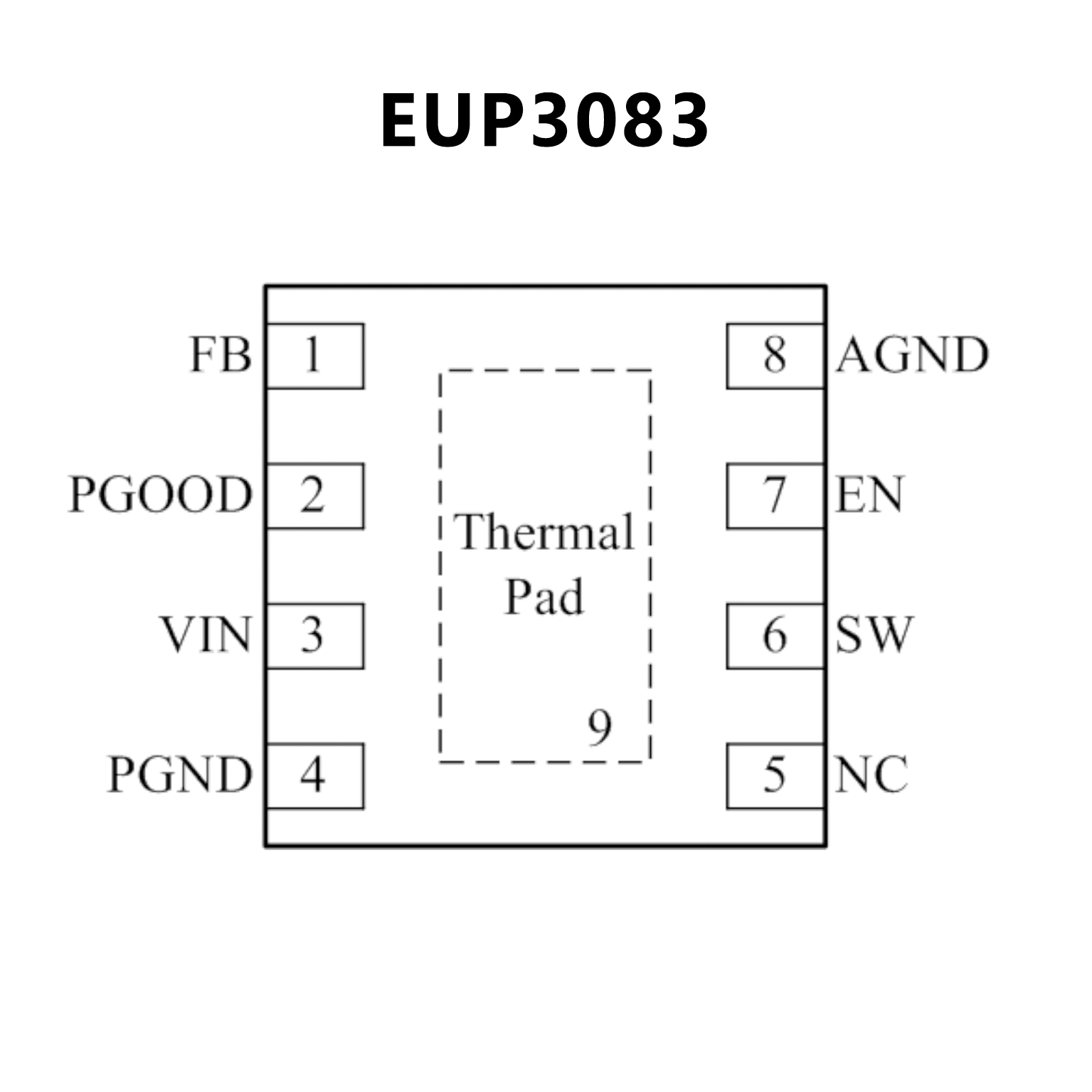

PIN CONFIGUTION
CROSS
FEATURES
• 2.5V to 6V operating input range
• Up to 3A output current
• Up to 95% peak efficiency
• Internal Soft-Start
• 1MHz switching frequency
• Input under voltage lockout
• Short circuit protection
• Over voltage protection
• Thermal protection
• Hot-plug in protection
• Output POK indication
• RoHS Compliant and Halogen Free
• Available in DFN2X2-8 package
PIN CONFIGUTION
