8A, 24V, 500kHz Synchronous Step-Down Converter, EUP3098 Replace SY8388A.
EUP3098
EUP3098.pdf
EUP3098.pdfFEATURES
• 8A Output Current
• Wide Input Voltage Range: 4.5~24V
• Low HS/LS RON: 28/15mΩ
• Internal Soft-start
• Fixed Frequency 500kHz
• Adjustable Output Voltage Application
• High Precision Feedback Voltage : ±1%
• Input UVLO
• PFM/USM Selectable Light Load Operation Mode
• Power Good Indicator
• Output Discharge Function
• Cycle-by-cycle Valley and Peak Current
Limit Protection
• Programmable Valley Current Limit
Threshold by ILMT Pin
• Output Under Voltage Protection
• Output Over Voltage Protection
• Over Temperature Protection
• Compact Package: UQFN2.5×2.5-16
• RoHS Compliant and Halogen-Free

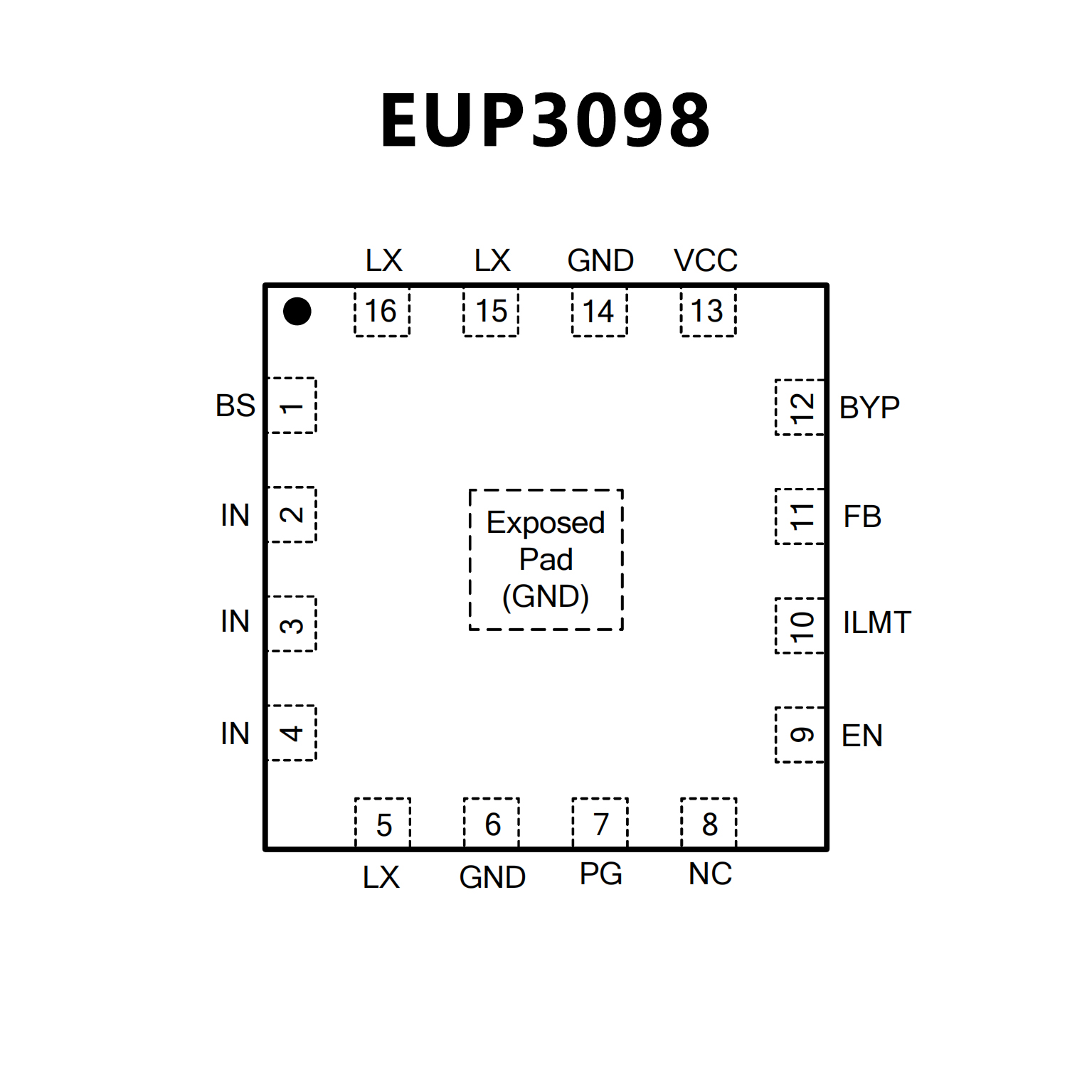

PIN CONFIGUTION
CROSS
FEATURES
• Low RDS(ON) for Internal Switches (Top/Bottom):
20/10 mΩ
• Wide Input Voltage Range: 4~24V
• Integrated Bypass Switch: 1.5Ω
• Instant PWM Architecture to Achieve Fast
Transient Responses
• Internal Soft-Start Limits the Inrush Current
• Pseudo-Constant Frequency: 600kHz
• Adjustable Output Voltage Application
• 8A Output Current Capability
• ±1% Internal Reference Voltage
• PFM/FCCM Selectable Light Load Operation Mode
• Power Good Indicator
• Output Discharge Function
• Cycle-by-cycle Valley and Peak Current Limit
Protection
• Programmable Valley Current Limit Threshold
by ILMT Pin
• Hic-cup Mode Output Under Voltage Protection
• Auto-recovery Mode Output Over Voltage
Protection
• Auto-recovery Mode Over Temperature Protection
• Input UVLO
• RoHS Compliant and Halogen Free
• Compact Package: QFN2.5×2.5-16

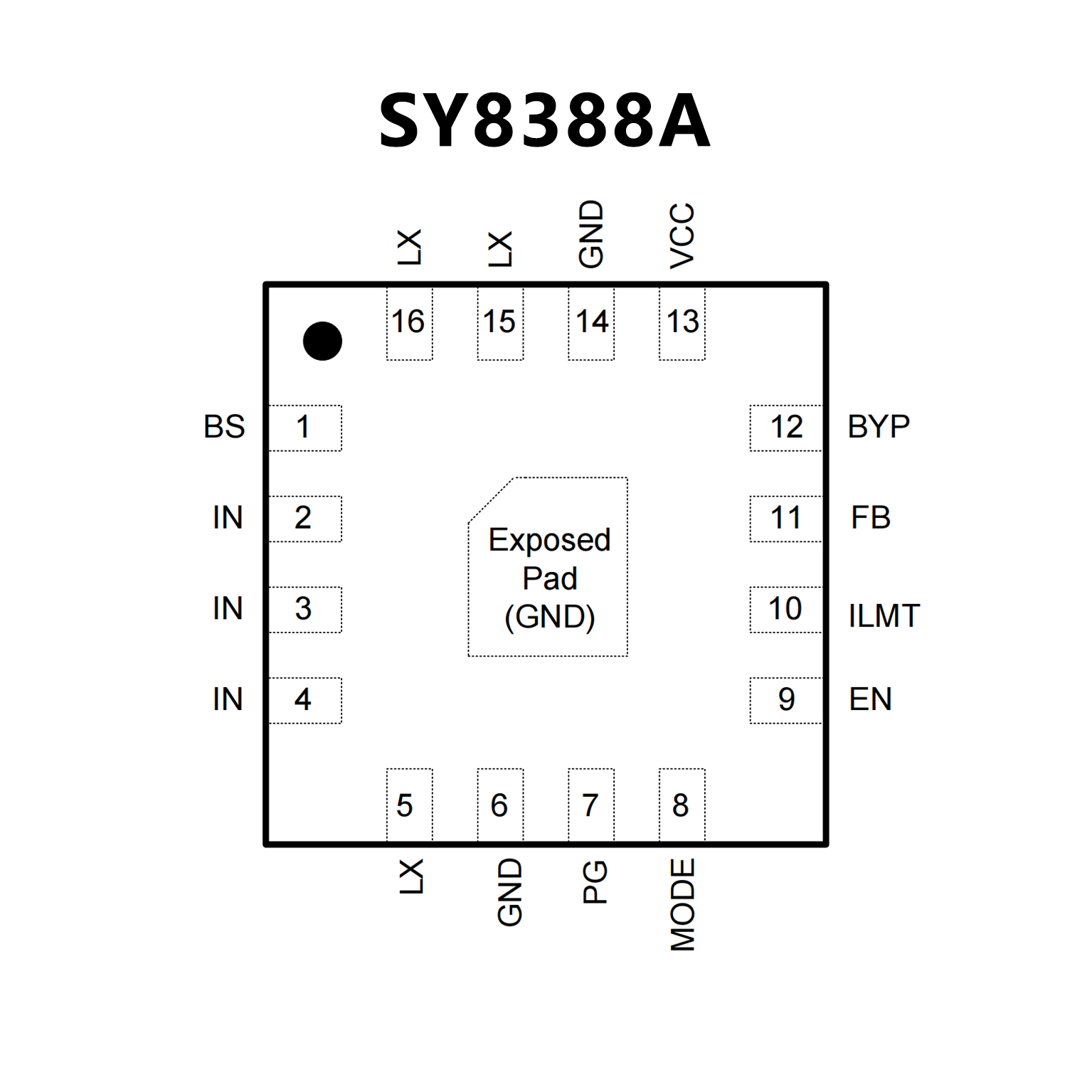

PIN CONFIGUTION
