750kHz, 18V, 2A Synchronous Step-Down Converter, EUP3152 Replace SY8120B.
EUP3152
EUP3152.pdf
EUP3152.pdfFEATURES
• Wide Input Voltage Range: 4.5V to 18V
• Output Voltage Range: 0.6V to 7V
• Reference Voltage: 0.6V±1.5%
• High Efficiency Synchronous-Mode Operation
• 750kHz Frequency Operation
• Up to 2A Output Current
• Low RDS(ON) for internal switches:
140mΩ/70mΩ(top/bottom)
• Advanced COT Control to Achieve Fast Transient
Responses
• Power Save Mode at Light Load
• Integrated Internal Compensation
• Stable with Low ESR Ceramic Output Capacitors
• Over Current Protection with Hiccup Mode
• Thermal Shutdown
• Inrush Current Limit and Soft Start
• Build in Input Over Voltage Protection
• Available in SOT23-6 Package

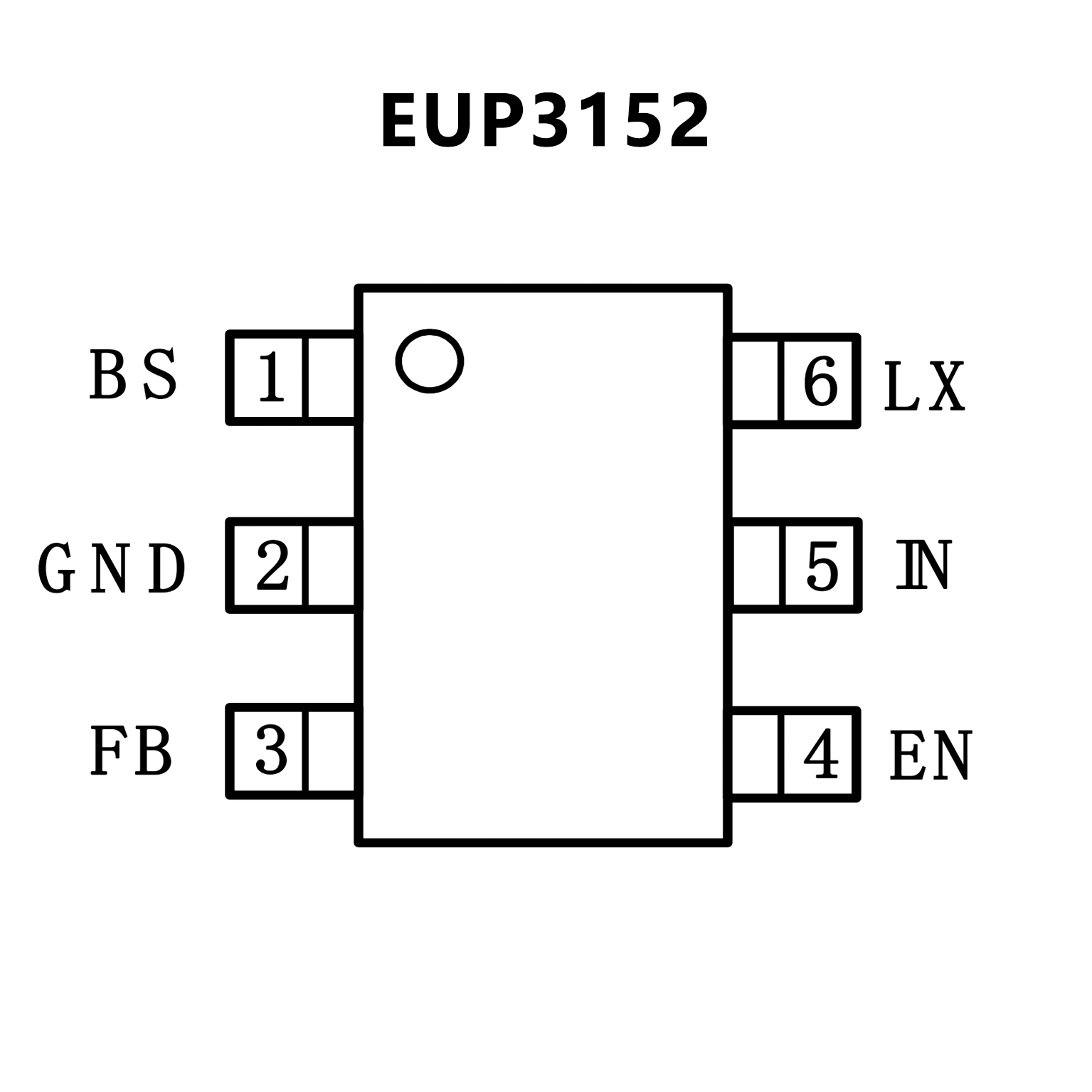

PIN CONFIGUTION
CROSS
FEATURES
• Low RDS(ON) for internal switches
(top/bottom):145/135 mΩ
• 4.5-18V input voltage range
• 2A load current capability
• Instant PWM architecture to achieve fast transient
• responses Internal softstart limits the inrush current
• 2% 0.6V reference
• RoHS Compliant and Halogen Free
• Compact package: SOT23-6

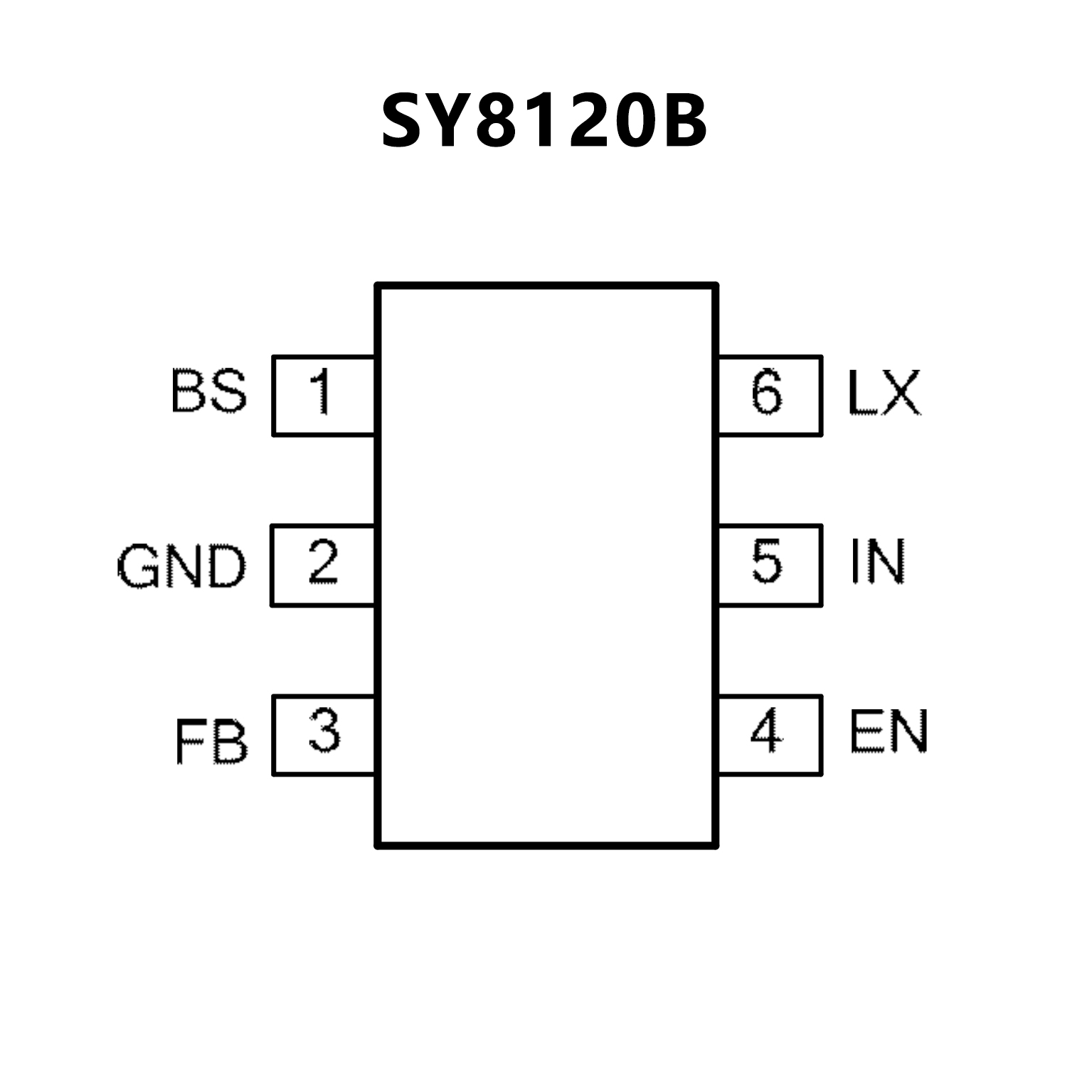

PIN CONFIGUTION
