5A, 3MHz Synchronous Step-Down DC-DC with I2C Compatible Interface, EUP3265 Replace RK860.

EUP3265

FEATURES

• 2.7V to 5.5V Input Voltage Range

• 3MHz Constant Switching Frequency

• 5A Available Load Current

• I²C Control Interface with Dynamic Voltage

Scaling Support

• Programmable Output Voltage: 0.6V to 1.4V in

6.25mV Steps

• Small size, 0.33µH or 0.47µH Inductor Solution

• 52µA Typical Quiescent Current

• PFM/PWM Operation for Optimum Increased

Efficiency

• Excellent Load and Line Transient Response

• Short Circuit and Thermal Protection

• Available in 2.0mm×1.6mm WCSP-20 Package

• RoHS Compliant and 100% Lead(Pb)-Free

Halogen-Free

PIN CONFIGUTION

CROSS

RK860

RK860.pdf

No.14644

FEATURES

• Input voltage range：2.7V-5.5V

• 2.4MHz switching frequency minimizes the external

components

• Typical 70uA quiescent current when VIN=3.8V and

Temp=25℃

• Low R_Ds(ON)for internal switches(PFET/NFET):

24mohm/16ohm @ VIN=3.8V

• Programmable output voltage:0.7125V to 1.5V with

12.5mV/step

or 0.5V to 1.5V with 6.25mV/step

• 7A continuous output current capability

• Capable for 0.24uH inductor and 22uF*2 ceramic capacitor

• Hic-cup mode protection for hard short condition

• Integrate inner protection：Cycle by cycle OCP and

VIN-OVP/UVLO/DIE-TSD

• RoHS compliant and Halogen free

• Compact package: WLCSP 1.65*2.05-20

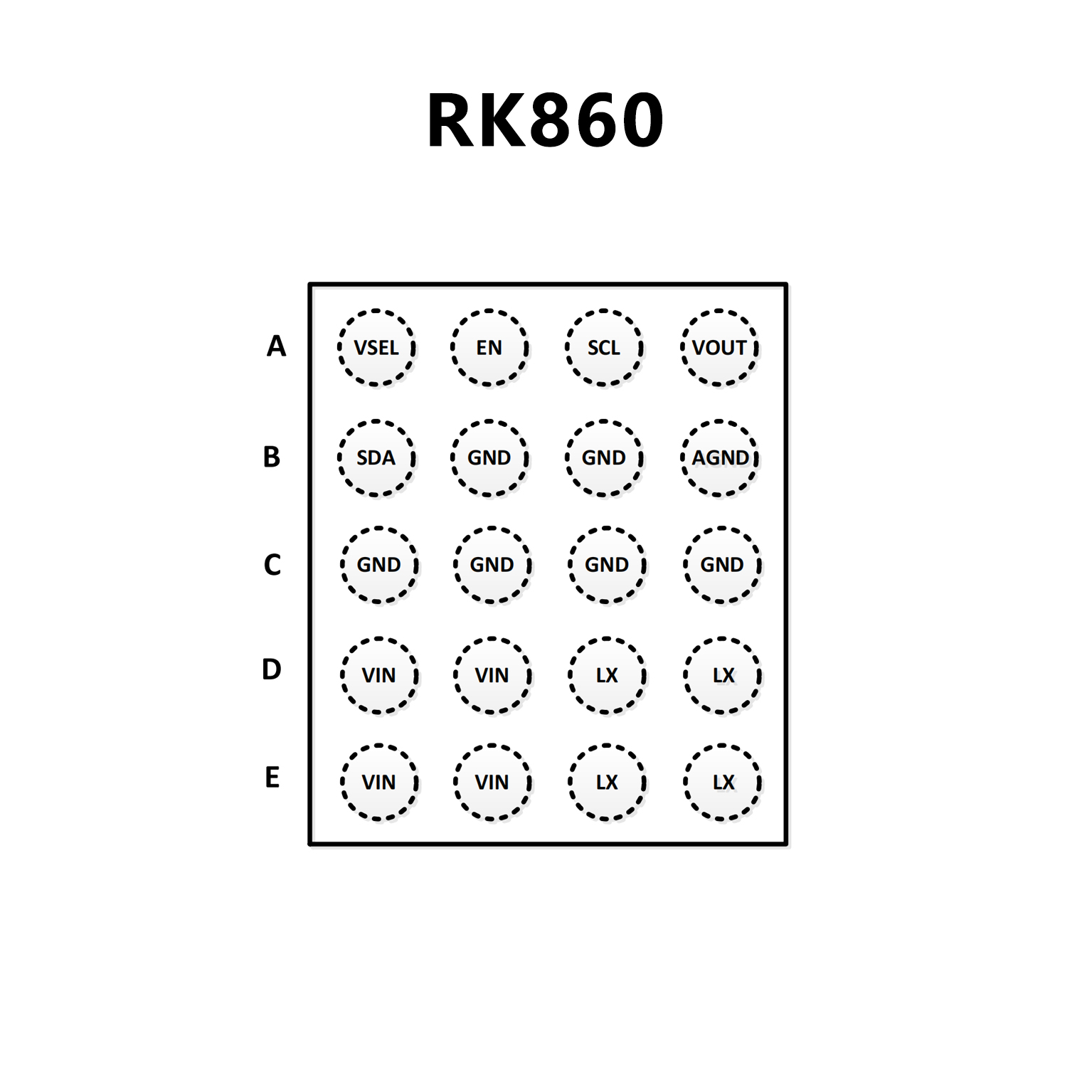

PIN CONFIGUTION
