2A, 30V, 340KHz Synchronous Step-Down Converter, EUP3282H Replace MP1482.
EUP3282H
EUP3282H.pdf
EUP3282H.pdfFEATURES
• 2A Output Current
• Automatic Pulse Skipping Mode at Light Load
• Integrated 160mΩ/110mΩ DMOS Switches
• 4.5V to 30V Input Operating Range
• Output Adjustable from 0.92V to 20V
• Up to 94% Efficiency
• 3µA Shutdown Current
• Fixed 340KHz Frequency
• Programmable Soft-Start
• Thermal Shutdown and Overcurrent Protection
• Input Supply Overvoltage and Undervoltage Lockout
• 220ns Minimum On Time
• Available in SOP-8 Package
• RoHS Compliant and 100% Lead(Pb)-Free Halogen-Free

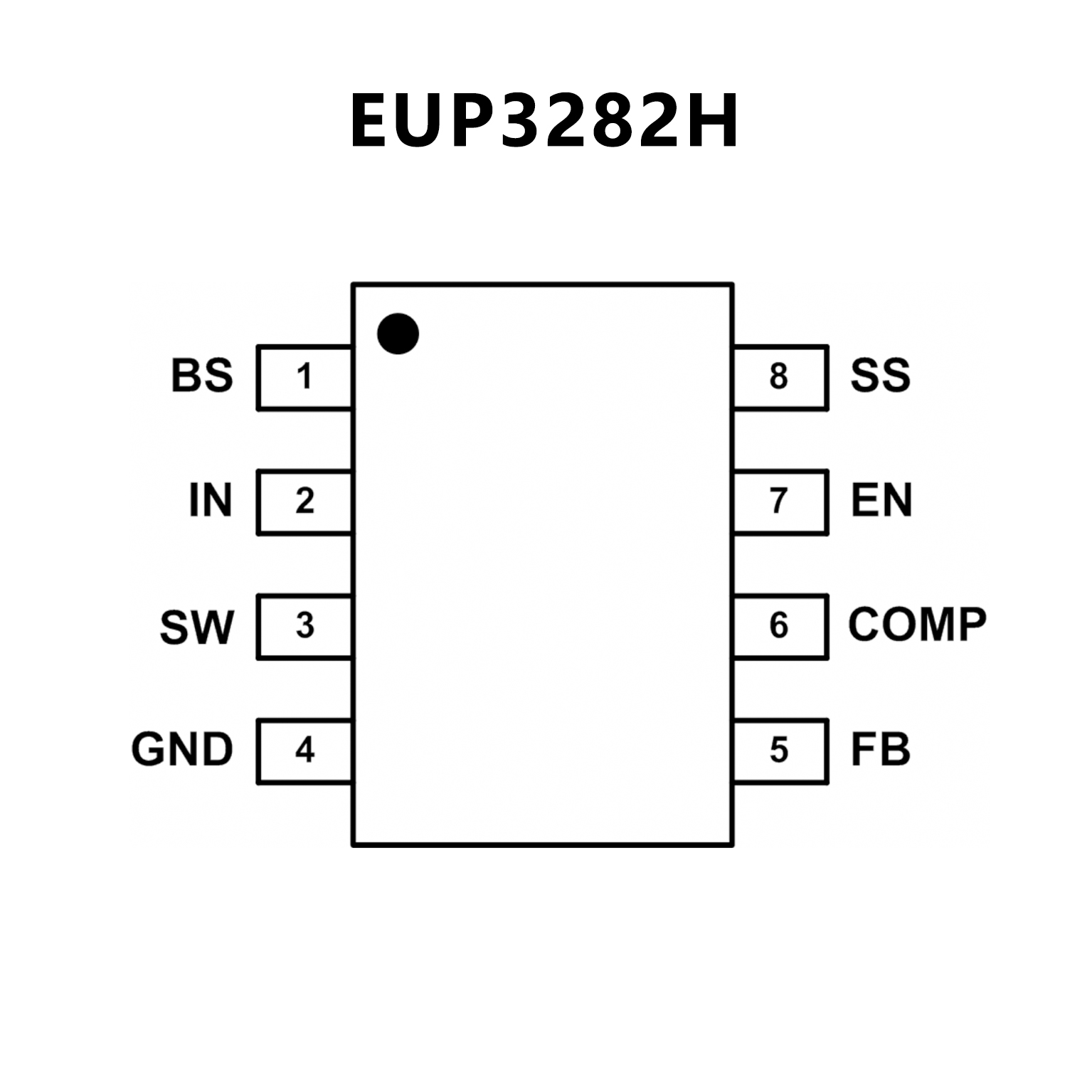

PIN CONFIGUTION
CROSS
FEATURES
• 2A Output Current
• Wide 4.75V to 18V Operating Input Range
• Integrated 130mΩ Power MOSFET Switches
• Output Adjustable from 0.923V to 15V
• Up to 93% Efficiency
• Programmable Soft-Start
• Stable with Low ESR Ceramic Output Capacitors
• Fixed 340kHz Frequency
• Cycle-by-Cycle Over Current Protection
• Input Under Voltage Lockout
• 8–Pin SOIC

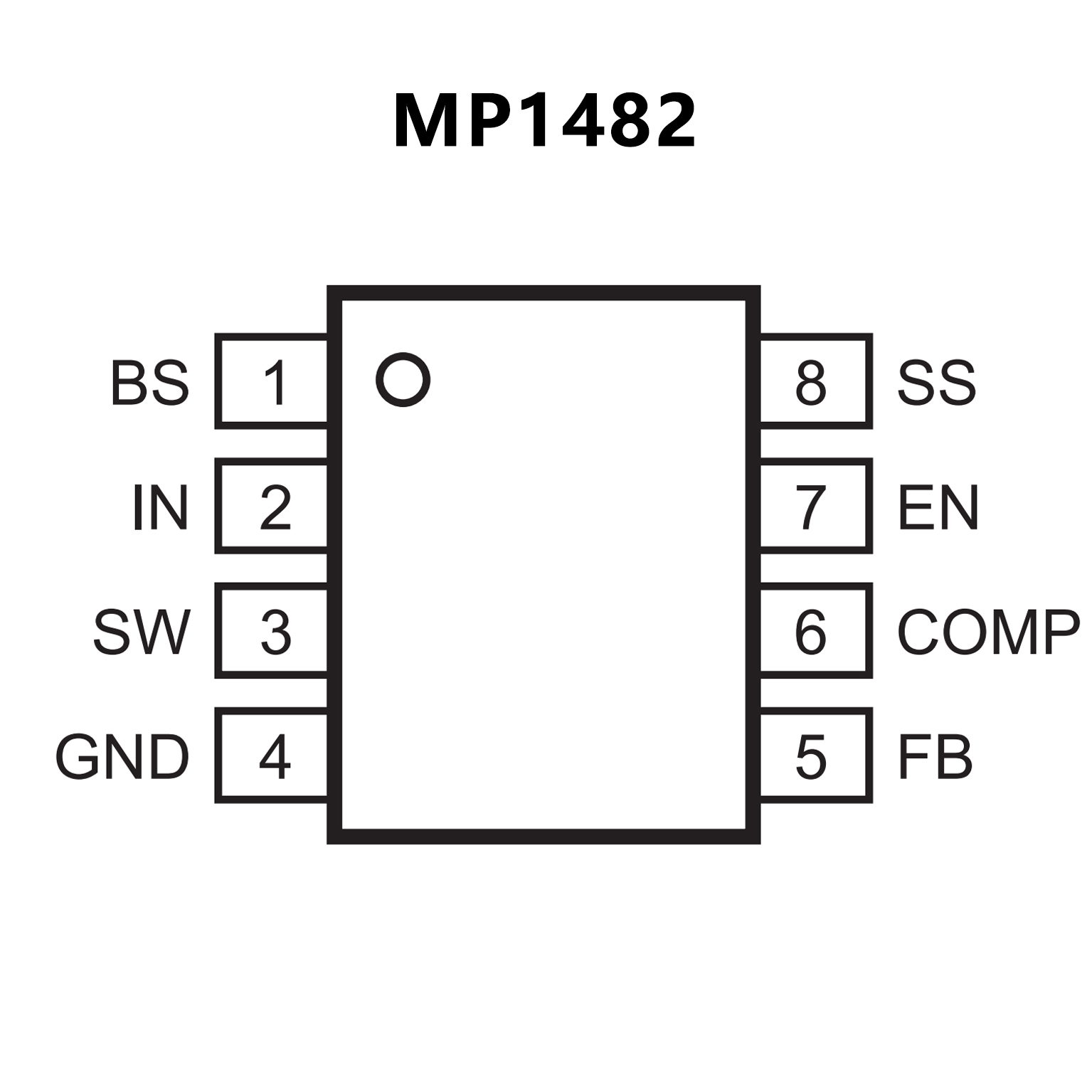

PIN CONFIGUTION
