High Performance Single Synchronous Buck Converter, EUP3288F Replace GS9238.
EUP3288F
EUP3288F.pdf
EUP3288F.pdfFEATURES
• Wide Input Voltage Range: 4.5V to 30V
• 8A Output Current
• Excellent Line and Load Transient Responses
• Integrated 23mΩ N-Channel MOSFET for
High Side
• Integrated 13mΩ N-Channel MOSFET for
Low Side
• Programmable PWM Frequency from
100KHz to 1MHz
• Internal Soft-Start
• Selectable Forced PWM or Automatic
PFM/PWM Mode
• Power Good Monitoring
• Under-Voltage Protection
• Over-Voltage Protection
• Cycle-by-Cycle Current Limit
• Over-Temperature Protection
• Available in TQFN-23 4mmx4mm Package
• RoHS Compliant and Halogen-Free

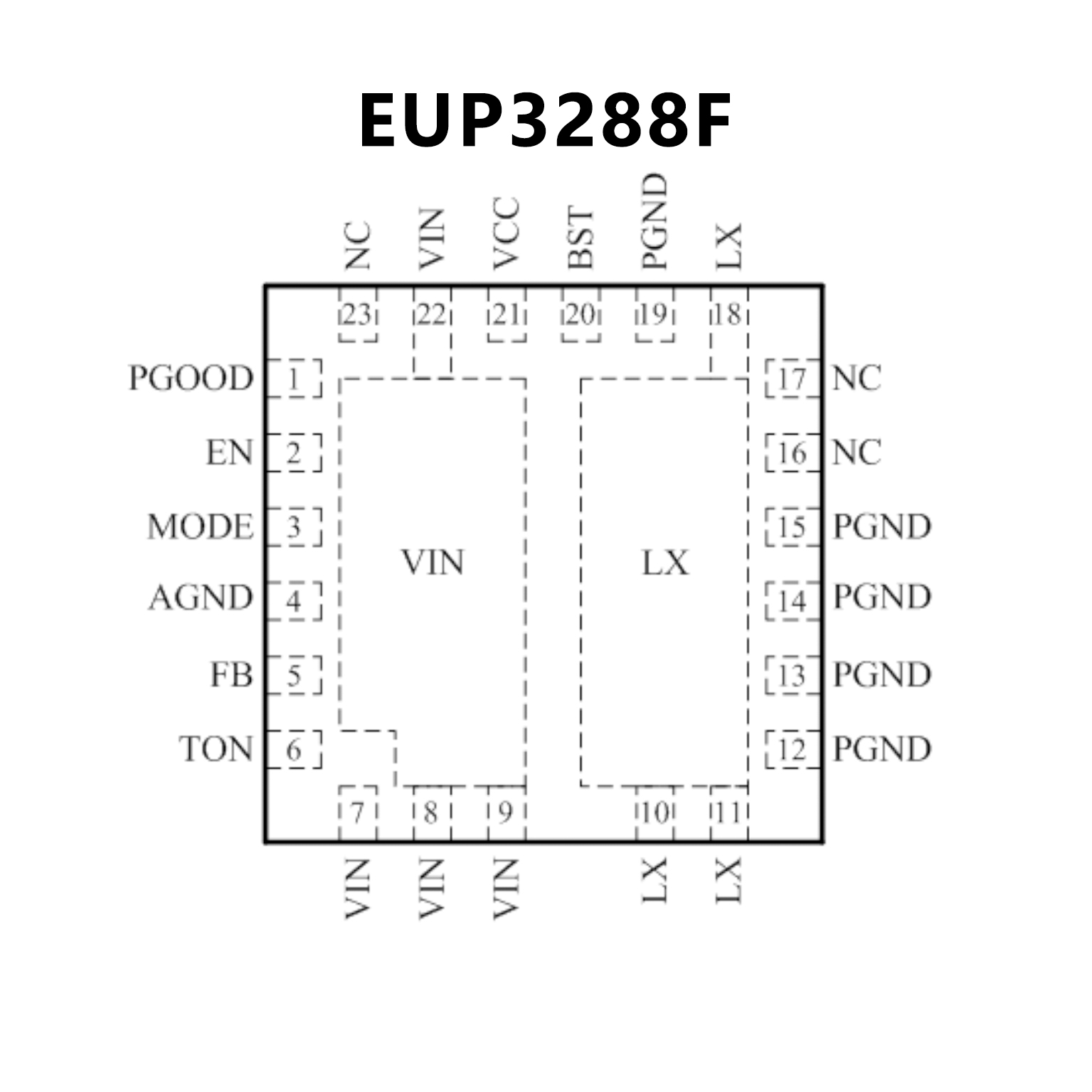

PIN CONFIGUTION
CROSS
FEATURES
• Wide Output Current Range：8A
• Wide Input Voltage Range：3V~28V
• Adjustable 0.8V~20V Output Range
• ±1% Output Voltage Accuracy over Line and Load
• Constant-on-time control scheme for fast
transient and high Efficiency
• Programmable Operation Frequency from
100kHz to 600kHz
• Integrated 20 mΩ at LDO=5V N-Channel
MOSFET For High Side
• Integrated 9.5 mΩ at LDO=5V N-Channel
MOSFET For Low Side
• Selectable Forced PWM or automatic PFM/PWM mode
• Power Good Indicator
• Under-Voltage Protection
• Over-Voltage Protection
• FB Short Protection
• Internal 5V Pre-regulator
• External Adjustable Soft-Start and Soft-Stop
• Over Temperature Protection
• Over Current Protection
• TQFN23-4x4 package
• Green Product (RoHS, Lead-Free, Halogen-Free
Compliant)
PIN CONFIGUTION
