3A, 24V, Synchronous Step-Down Converter, EUP3293 Replace MP1475.
EUP3293
EUP3293.pdf
EUP3293.pdfFEATURES
• Wide Input Voltage Range: 4.5V to 24V
• 80mΩ/30mΩ Low RDS(ON) Internal Power MOSFETs
• High-Efficiency Current Mode Control
• Fixed 500kHz Switching Frequency
• Synchronizes from a 200kHz-to-1MHz External Clock
• Power Saving Mode at Light Load
• Internal Soft-Start
• Power Good Indicator
• Over Current Protection and Hiccup
• Thermal Shutdown
• Input Under Voltage Lockout
• Available in an 8-pin TSOT23 package
• RoHS Compliant and Halogen-Free

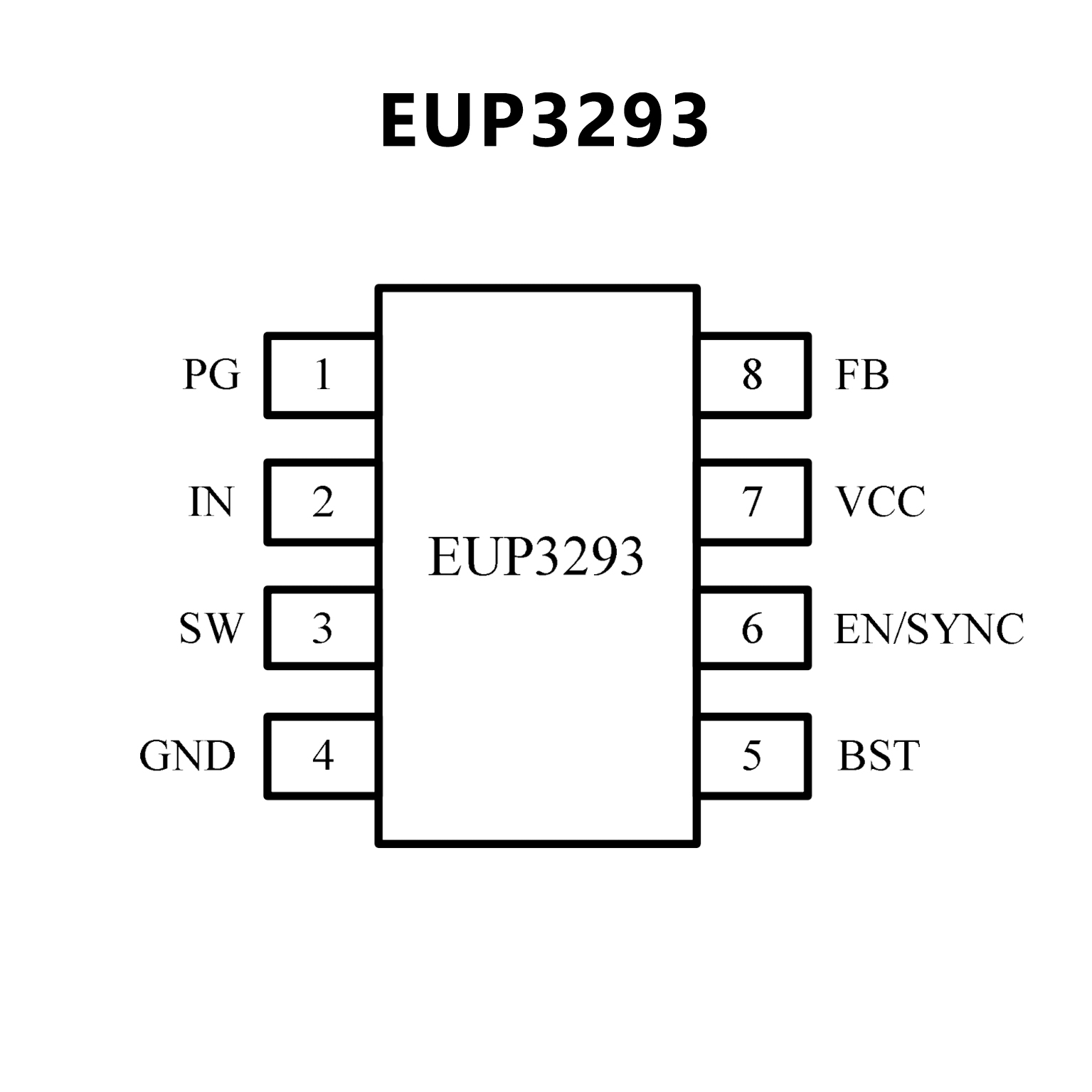

PIN CONFIGUTION
CROSS
FEATURES
• Wide 4.5V-to-16V Operating Input Range
• 80mΩ/30mΩ Low RDS(ON) Internal Power MOSFETs
• High-Efficiency Synchronous Mode Operation
• Fixed 500kHz Switching Frequency
• Synchronizes from a 200kHz-to-2MHz External Clock
• Power-Save Mode at light load Internal Soft-Start
• Power Good Indicator
• OCP Protection and Hiccup
• Thermal Shutdown
• Output Adjustable from 0.8V
• Available in an 8-pin TSOT-23 Package

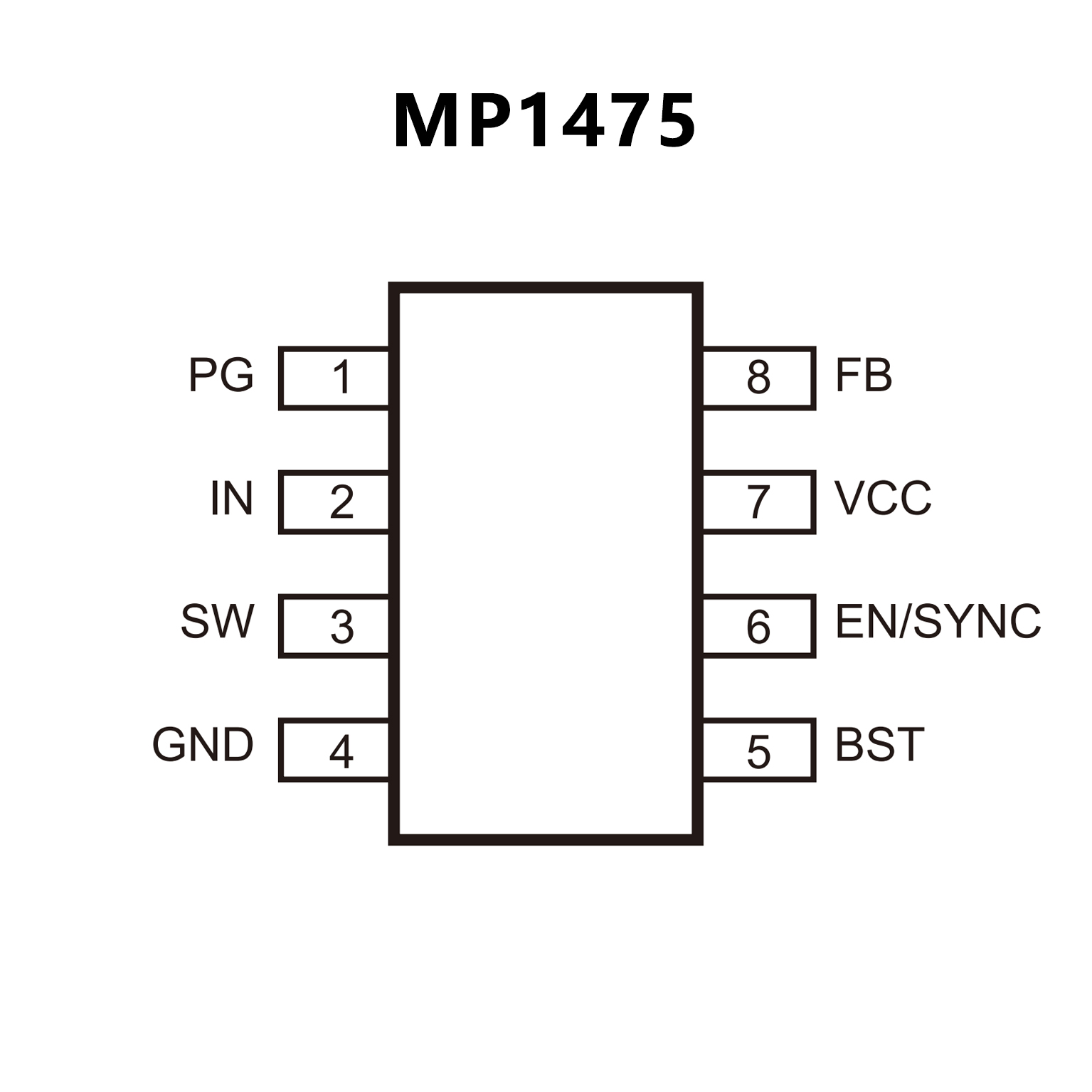

PIN CONFIGUTION
