3A, 24V, Synchronous Step-Down Converter, EUP3293 Replace RT7296F.
EUP3293
EUP3293.pdf
EUP3293.pdfFEATURES
• Wide Input Voltage Range: 4.5V to 24V
• 80mΩ/30mΩ Low RDS(ON) Internal Power MOSFETs
• High-Efficiency Current Mode Control
• Fixed 500kHz Switching Frequency
• Synchronizes from a 200kHz-to-1MHz External Clock
• Power Saving Mode at Light Load
• Internal Soft-Start
• Power Good Indicator
• Over Current Protection and Hiccup
• Thermal Shutdown
• Input Under Voltage Lockout
• Available in an 8-pin TSOT23 package
• RoHS Compliant and Halogen-Free

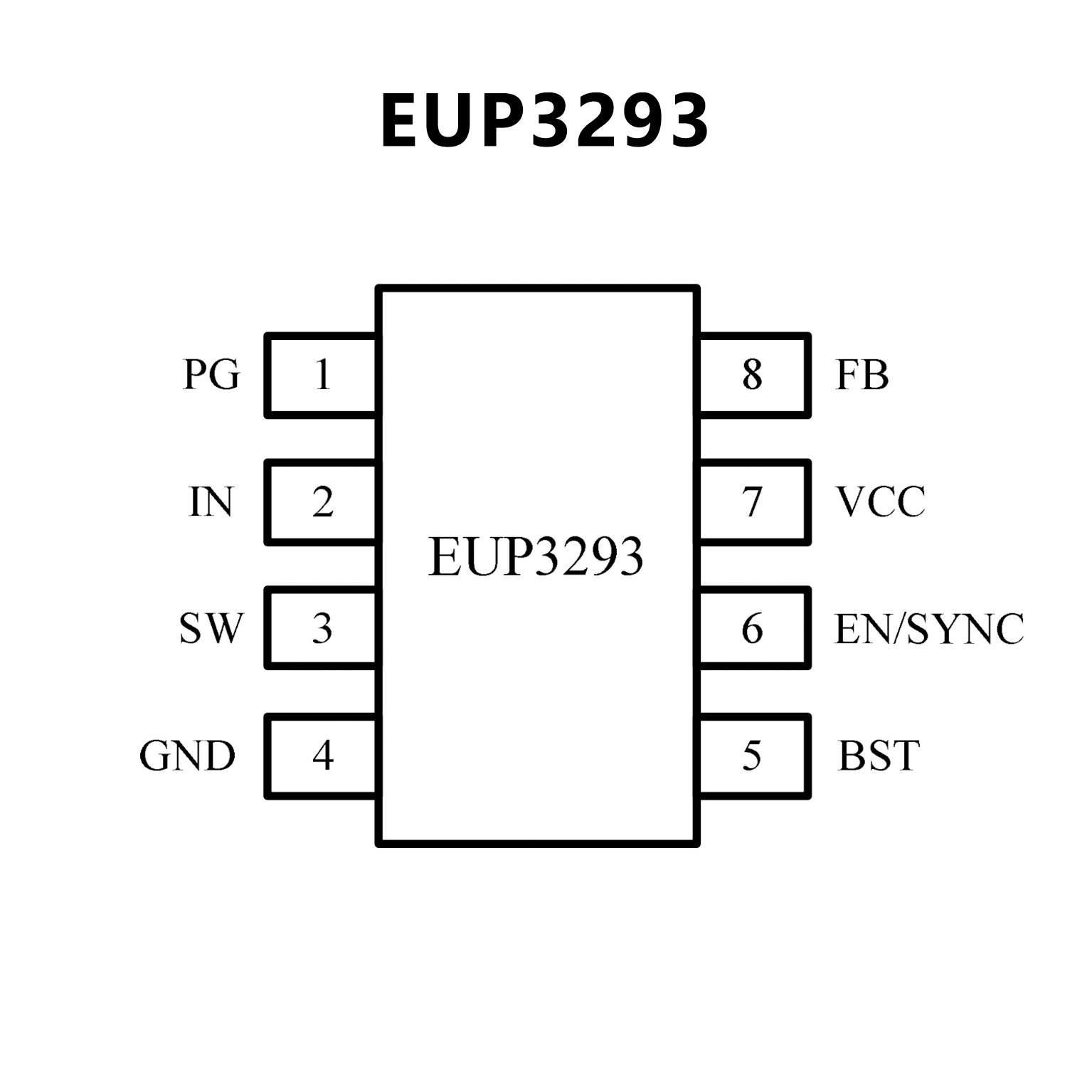

PIN CONFIGUTION
CROSS
FEATURES
• 4.5V to 17V Input Voltage Range
• 3A Output Current
• Internal N-Channel MOSFETs
• Current Mode Control
• Fixed Switching Frequency: 500kHz
• Synchronous to External Clock: 200kHz to 2MHz
• Cycle-by-Cycle Current Limit
• Internal Soft-Start Function
• Power Saving Mode at Light Load
• Power Good Indicator
• Input Undervoltage Lockout
• Output Undervoltage Protection
• Thermal Shutdown
• RoHS Compliant and Halogen Free

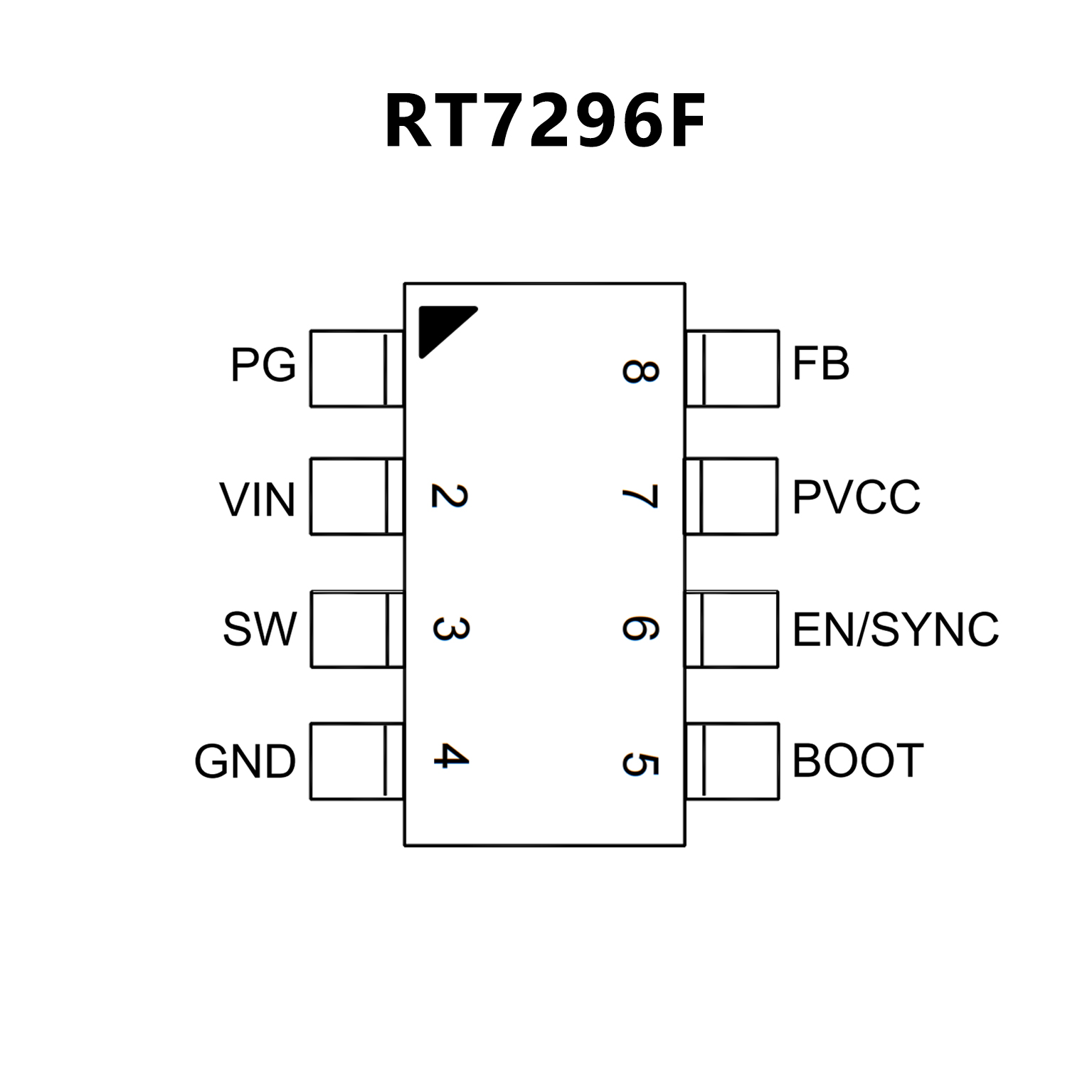

PIN CONFIGUTION
