2A, 30V, 340KHz Synchronous Step-Down Converter, EUP3482A Replace MP1482.
EUP3482A
EUP3482A.pdf
EUP3482A.pdfFEATURES
• 2A Output Current
• Automatic Pulse Skipping Mode at Light Load
• 35V Input Surge Protection
• Integrated 160mΩ/110mΩ DMOS Switches
• 4.5V to 30V Input Operating Range
• Output Adjustable from 0.923V to 12V
• Up to 93% Efficiency
• 1µA Shutdown Current
• Fixed 340KHz Frequency
• Programmable Soft-Start
• Thermal Shutdown and Overcurrent Protection
• Input Supply Overvoltage and Undervoltage Lockout
• 230ns Minimum On Time
• Available in SOP-8 Package
• RoHS Compliant and 100% Lead(Pb)-Free Halogen-Free

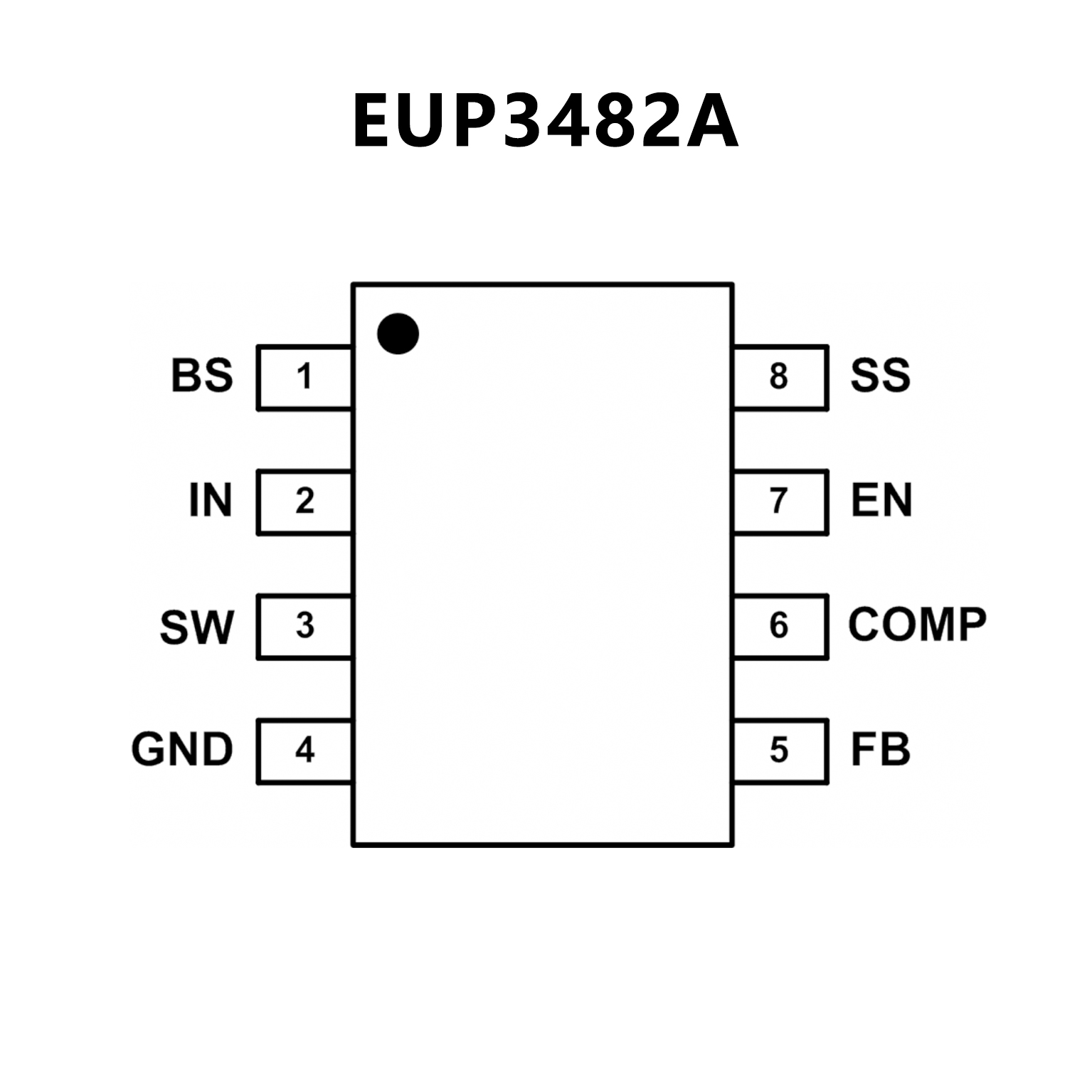

PIN CONFIGUTION
CROSS
FEATURES
• 2A Output Current
• 35V Input Surge Protection
• Integrated 160mΩ/110mΩ DMOS Switches
• 4.5V to 30V Input Operating Range
• Output Adjustable from 0.923V to 12V
• Up to 93% Efficiency
• 1µA Shutdown Current
• Fixed 340KHz Frequency
• Programmable Soft-Start
• Thermal Shutdown and Overcurrent Protection
• Input Supply Overvoltage and Undervoltage Lockout
• Available in SOP-8 Package
• RoHS Compliant and 100% Lead(Pb)-Free Halogen-Free

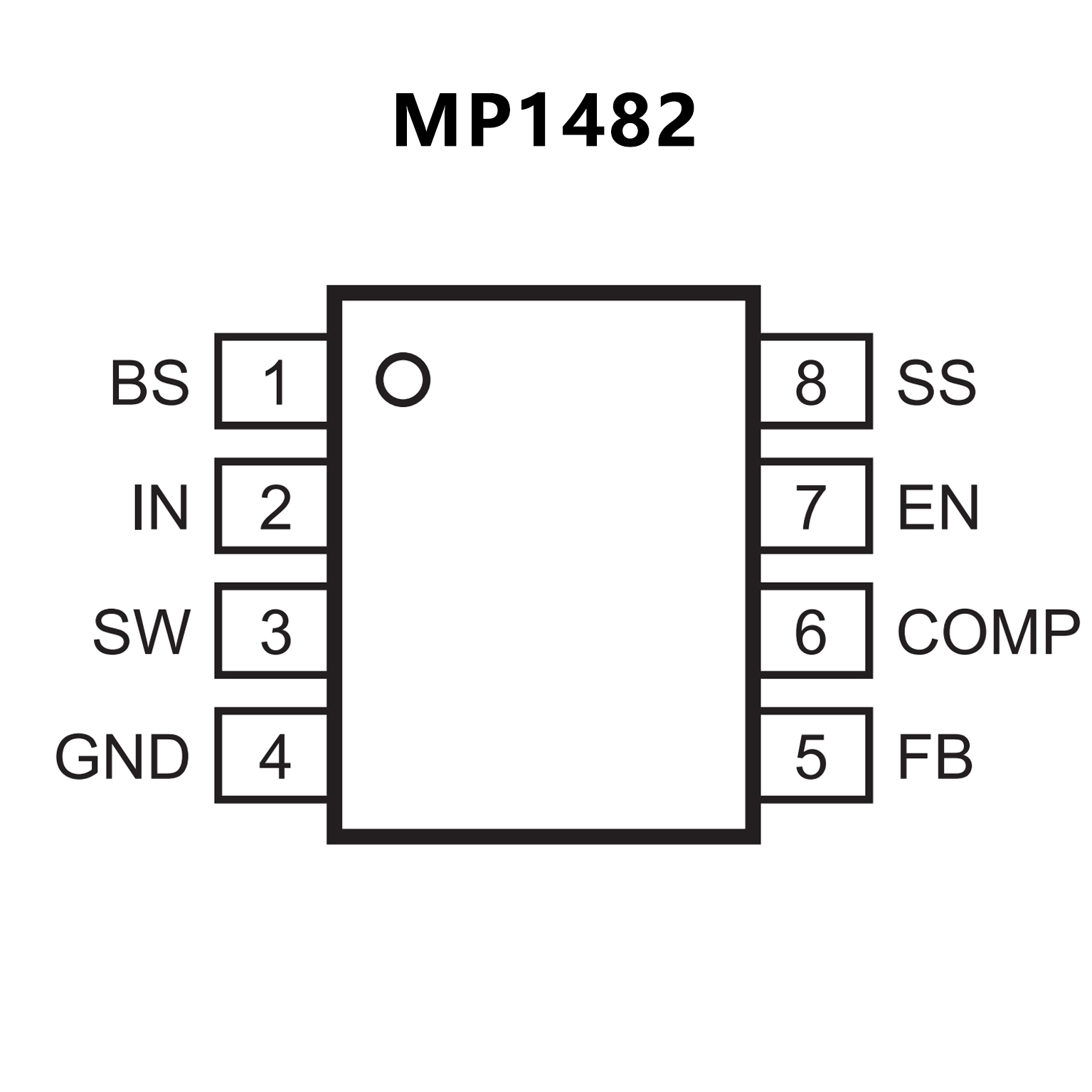

PIN CONFIGUTION
