USB Power-Distribution Switch with Fault Blanking, EUP3550 Replace DIO7002.
EUP3550
EUP3550.pdf
EUP3550.pdfFEATURES
• 70mΩ(typ.) Power MOSFET
• Operating Range : 2.7V to 5.5V
• Under Voltage Lockout
• 17µA Quiescent Current
• 1µA Maximum Shutdown Shutdown Current
• No Reverse Current when Power Off
• Fault Blanking Open-Drain Over-Current Flag
Output OCB
• Output Shutdown Pull-low Resistor
• Available with 3 Versions of Current Limits with
Foldback.
• Enable Active-High or Active-Low
• Available in SOT23-5 and MSOP-8 Packages
• RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

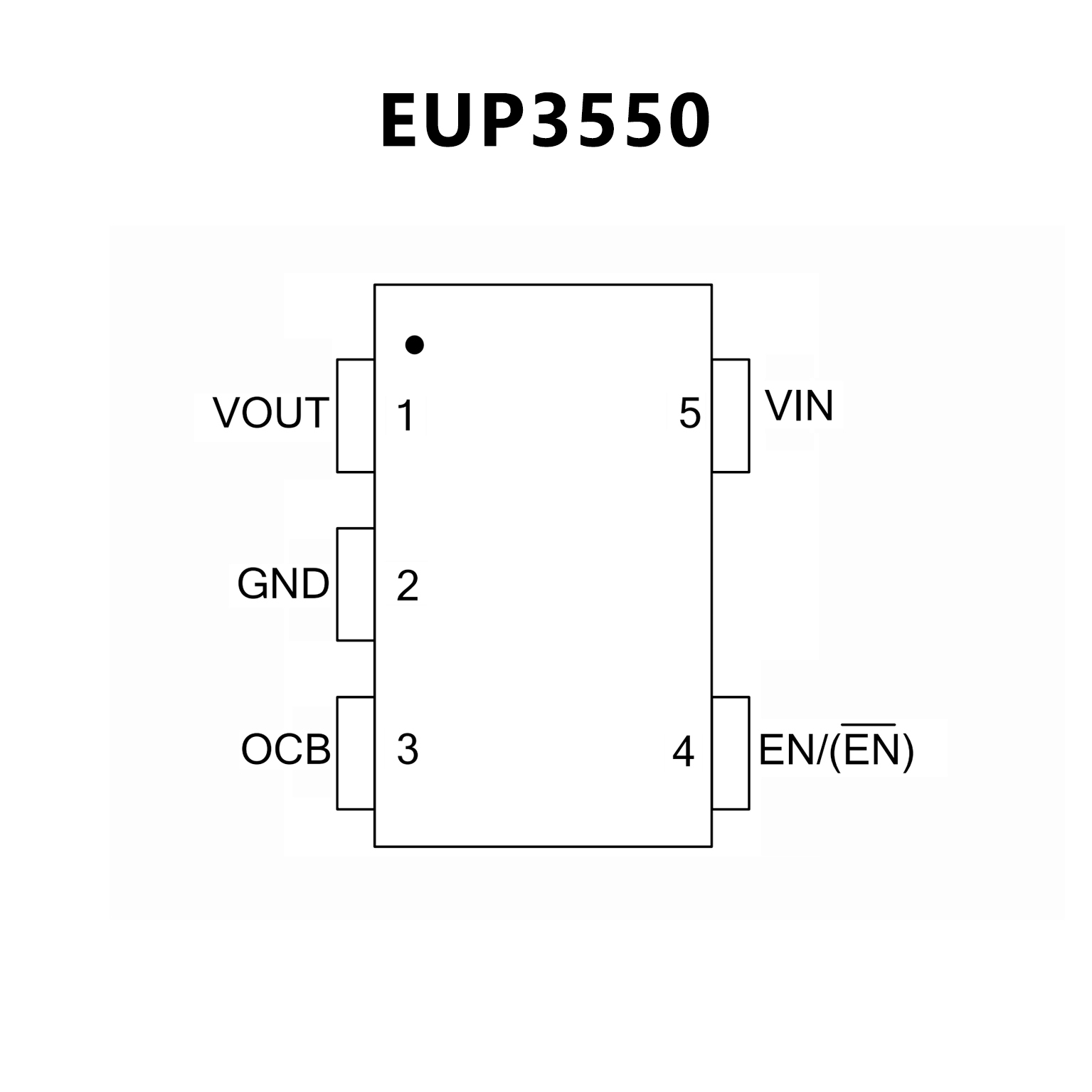

PIN CONFIGUTION
CROSS
FEATURES
• Input voltage: 2.7V to 5.5V
• Typical 70mΩ on-resistance
• 2.5A load current capability
• Programmable current limit
• Enable polarity:
DIO7002A: Active high
DIO7002B: Active Low
• Over current protection, short circuit protection and
over temperature protection
• Reverse blocking (no body diode)
• No reverse current when power ON or power OFF
• Compact SOT23-5 package minimizes the board space

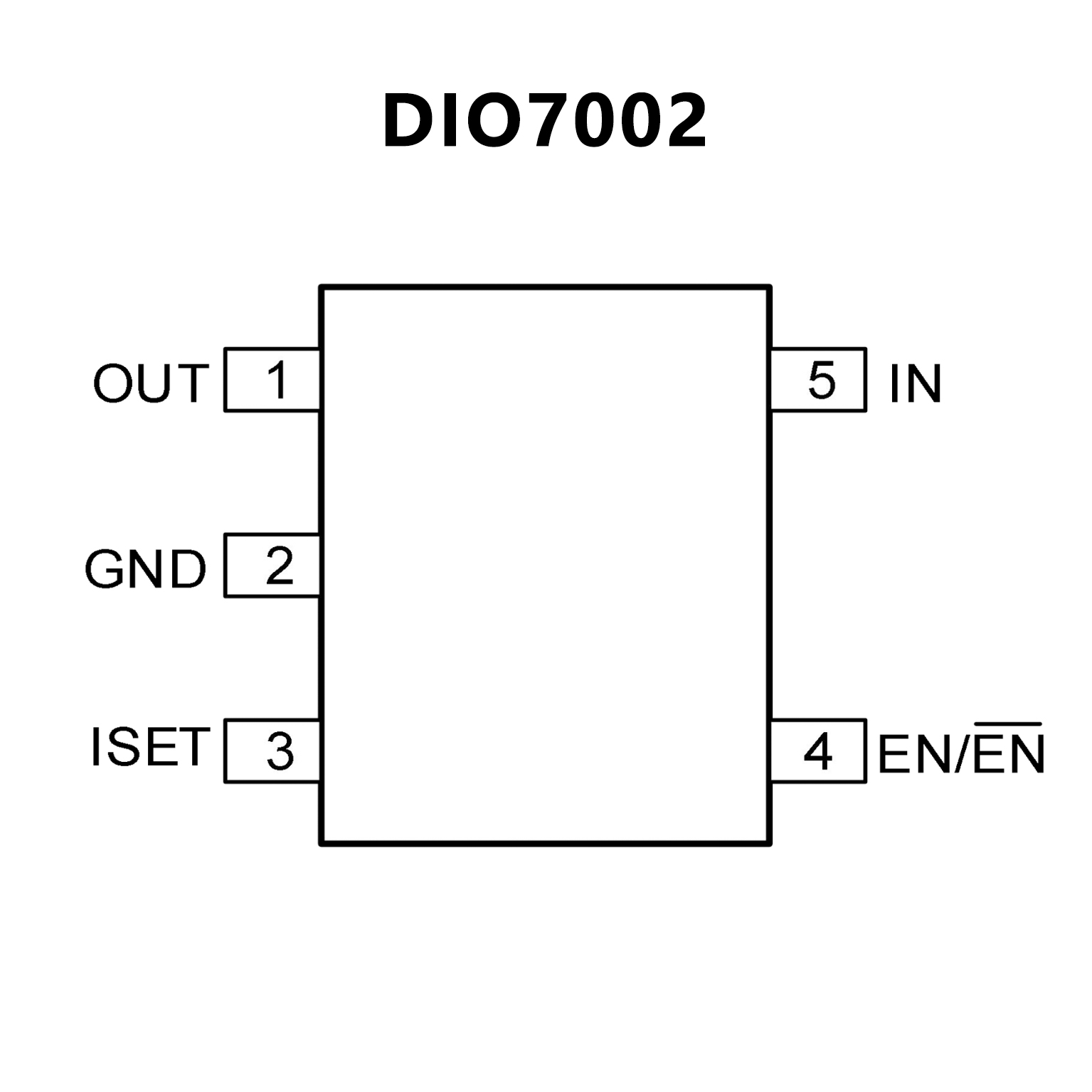

PIN CONFIGUTION
