80mΩ USB Power-Distribution Switch with Programmable Current Limit, EUP3551 Replace ETA6020.
EUP3551
EUP3551.pdf
EUP3551.pdfFEATURES
• 80mΩ(typ.) Power MOSFET
• Adjustable current limit: 125mA to 1.5A
• Operating Range : 2.7V to 5.5V
• Under Voltage Lockout
• 100µA Quiescent Current
• 1µA Maximum Shutdown Current
• No Reverse Current when Power Off
• Fault Blanking Open-Drain limit-Current Flag
Output OCB
• Enable Active-High or Active-Low
• Available in SOT23-6 Packages
• RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

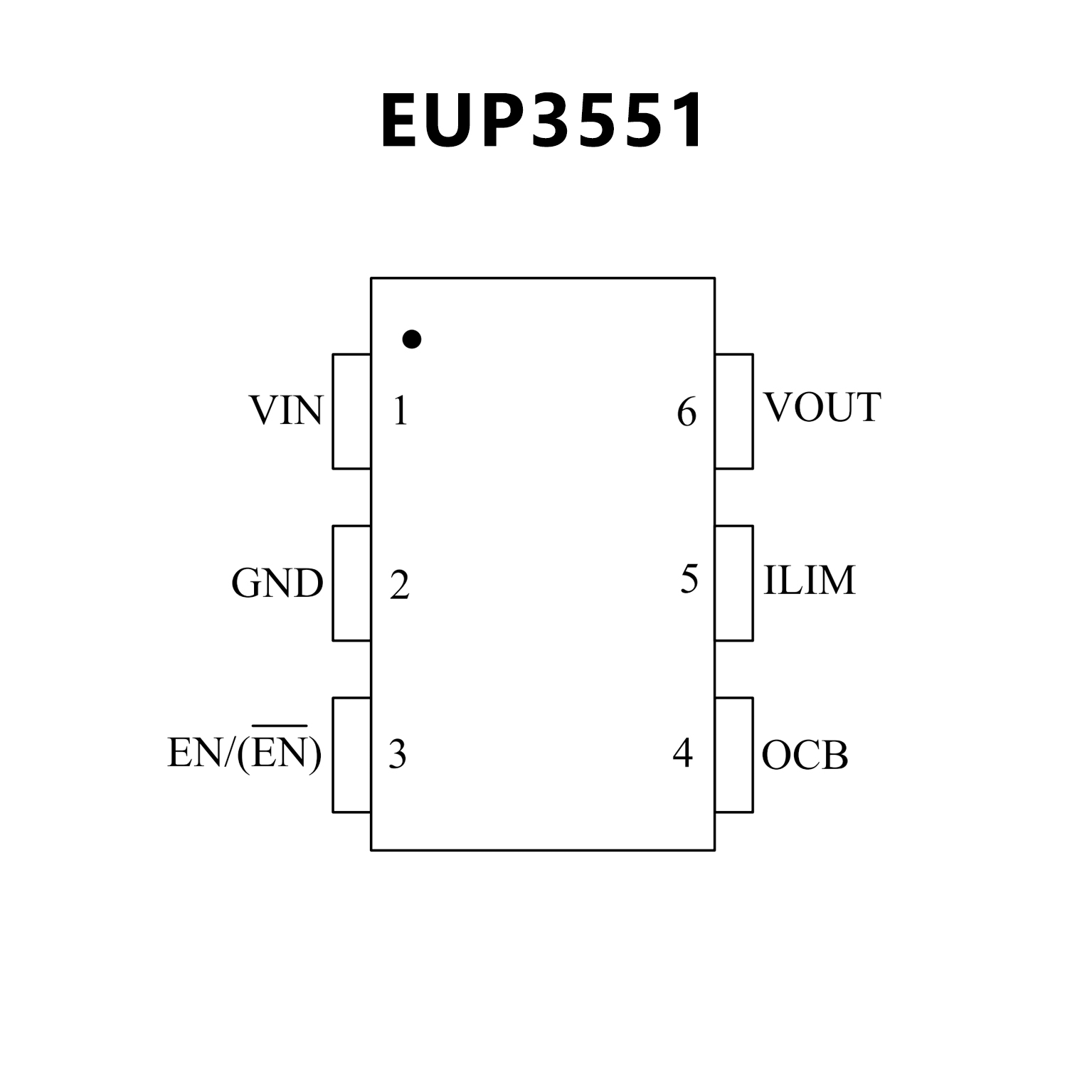

PIN CONFIGUTION
CROSS
FEATURES
• Up to 1.5A Max Load current
• Accurate Current-limit threshold: +/-5%
• Programmable Current-limit : 75mA to 1.7A
• Fast Over-Current Response
• Fault Flag Output: n FAULT Pin
• Reversed Current blocking
• Thermal Shutdown, UVLO protection
• Tiny DFN2x2-6L Package

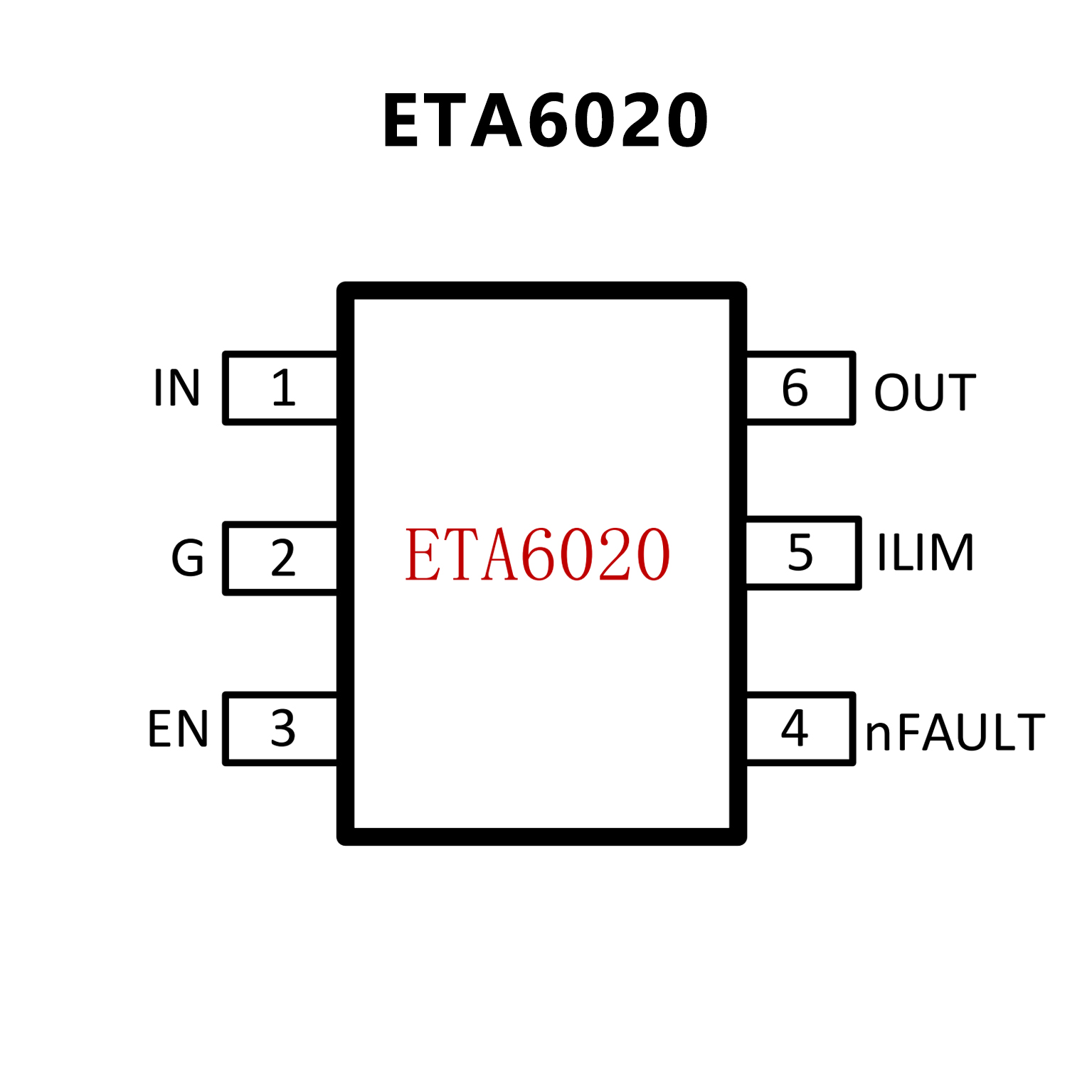

PIN CONFIGUTION
