1.5µ A Low IQ 300mA Low Noise LDO Regulator, EUP7138 Replace ID9349.
EUP7138
EUP7138.pdf
EUP7138.pdfFEATURES
• 1.5µA Quiescent Current Typically
• 70dB PSRR at 1kHz
• Up to 300mA Output Current
• Low Shutdown Current: <0.1µA
• Output Voltage Accuracy: ±2%
• Output Current Limit Protection
• Fixed Output Voltage 1.2V, 1.5V, 1.8V, 2.5V, 2.8V,
3.0V, 3.3V.
• Stable with Ceramic Output Capacitors
• Thermal Shutdown
• Output Auto-Discharge when EN Shutdown
• Available in DFN1x1-4L and SOT23-5 Package

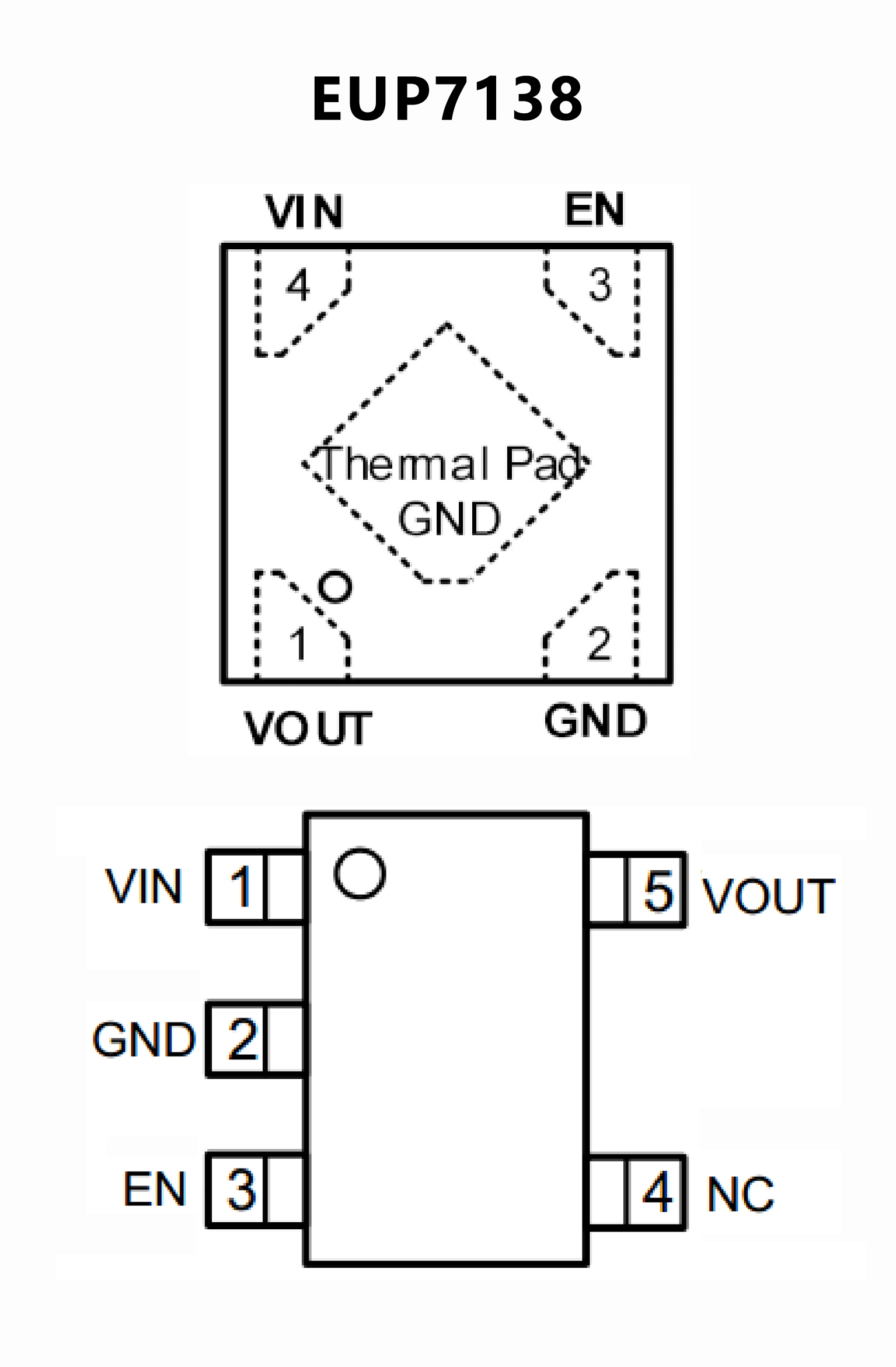

PIN CONFIGUTION
CROSS
FEATURES
• Ultra-Low-Noise Application
• Wide 2V to 6V Operating Range
• Quick Start-up
• Current Limiting Protection
• Thermal Shutdown Protection
• Low Dropout : 220mV @ 150mA, 3.3V
• High Ripple Rejection 65dB@10kHz
• Standby Current Less 0.1ȝ A
• Low Supply Current: 25ȝ A

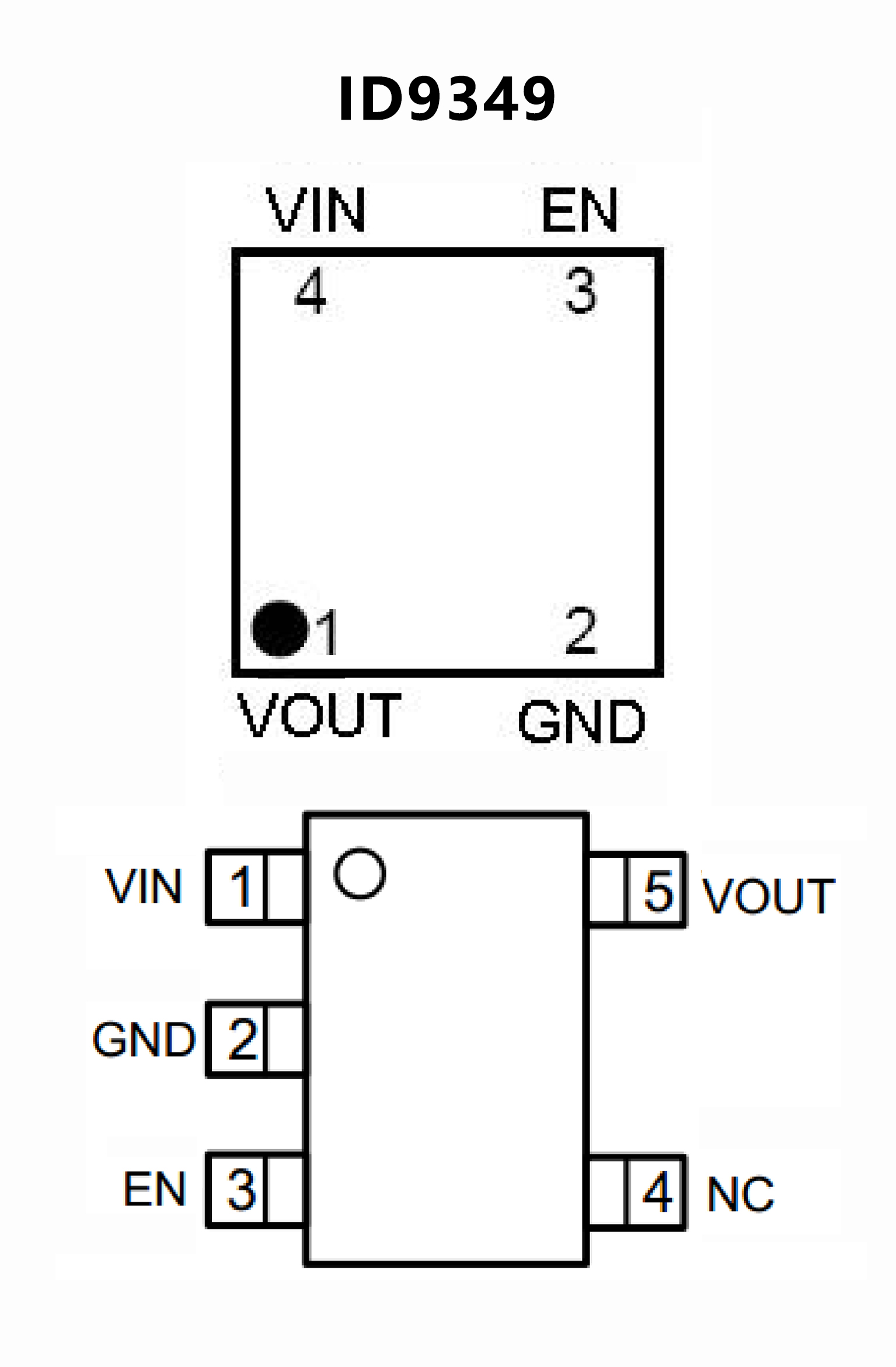

PIN CONFIGUTION
