300mA Low-Noise LDO Without Bypass Capacitor, EUP7913A Replace TPS799xx.
EUP7913A
EUP7913A.pdf
EUP7913A.pdfFEATURES
• 2.5V to 5.5V Input Voltage Range
• 30µV(rms) Output Noise
• 200mV Dropout @ 300mA
• 70dB PSRR at 1kHz No Bypass Capacitor
• Low 30µA Ground Current
• Guaranteed 300mA Output Current
• Stable with a 1µF Ceramic Output Capacitor When
VOUT ≥ 1.5V, or 2.2µF when VOUT<1.5V
• Excellent Load/Line Transient
• Thermal Shutdown and Current Limit Protection
• Available 1.2V to 3.6V fixed output voltages
(50mV increments)
• Space-Saving SOT23-3 & SOT23-5 Package
• RoHS Compliant and 100% Lead (Pb)-Free

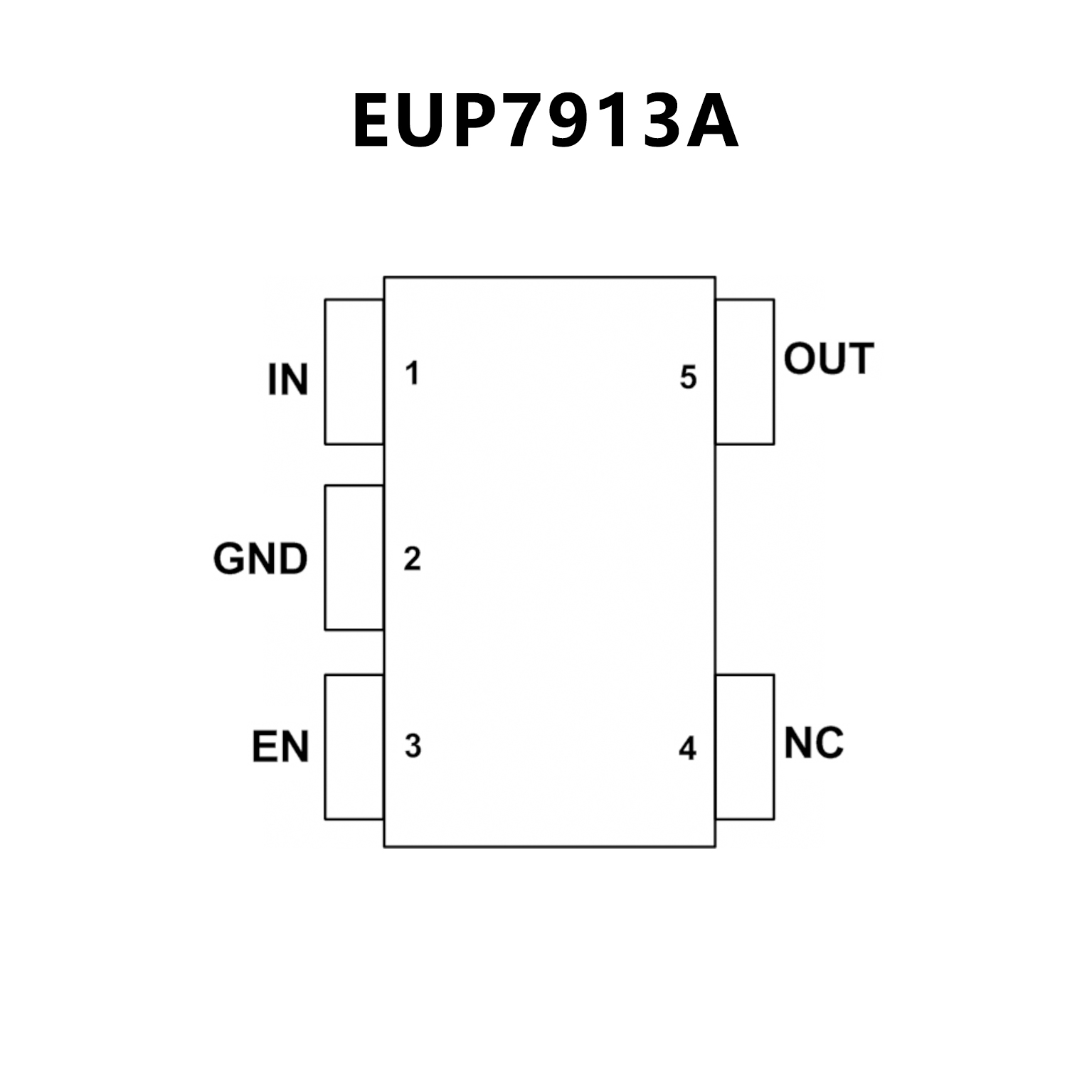

PIN CONFIGUTION
CROSS
FEATURES
• 200-mA low-dropout regulator with EN
• Multiple output voltage versions available:
– Fixed outputs of 1.2 V to 4.5 V
– Adjustable outputs from 1.20 V to 6.5 V
• Inrush current protection with EN toggle
• Low IQ: 40 μA
• High PSRR:
– 66 dB at 1 kHz
– 51 dB at 10 kHz
• Stable with a low-ESR, 2-μF typical output
capacitance
• Excellent load and line transient response
• 2% overall accuracy (load, line, and temperature)
• Very low dropout: 100 mV
• Packages:
– 5-bump, thin, 0.97-mm × 1.34-mm DSBGA
– 5-pin SOT-23-THIN
– 6-pin WSON

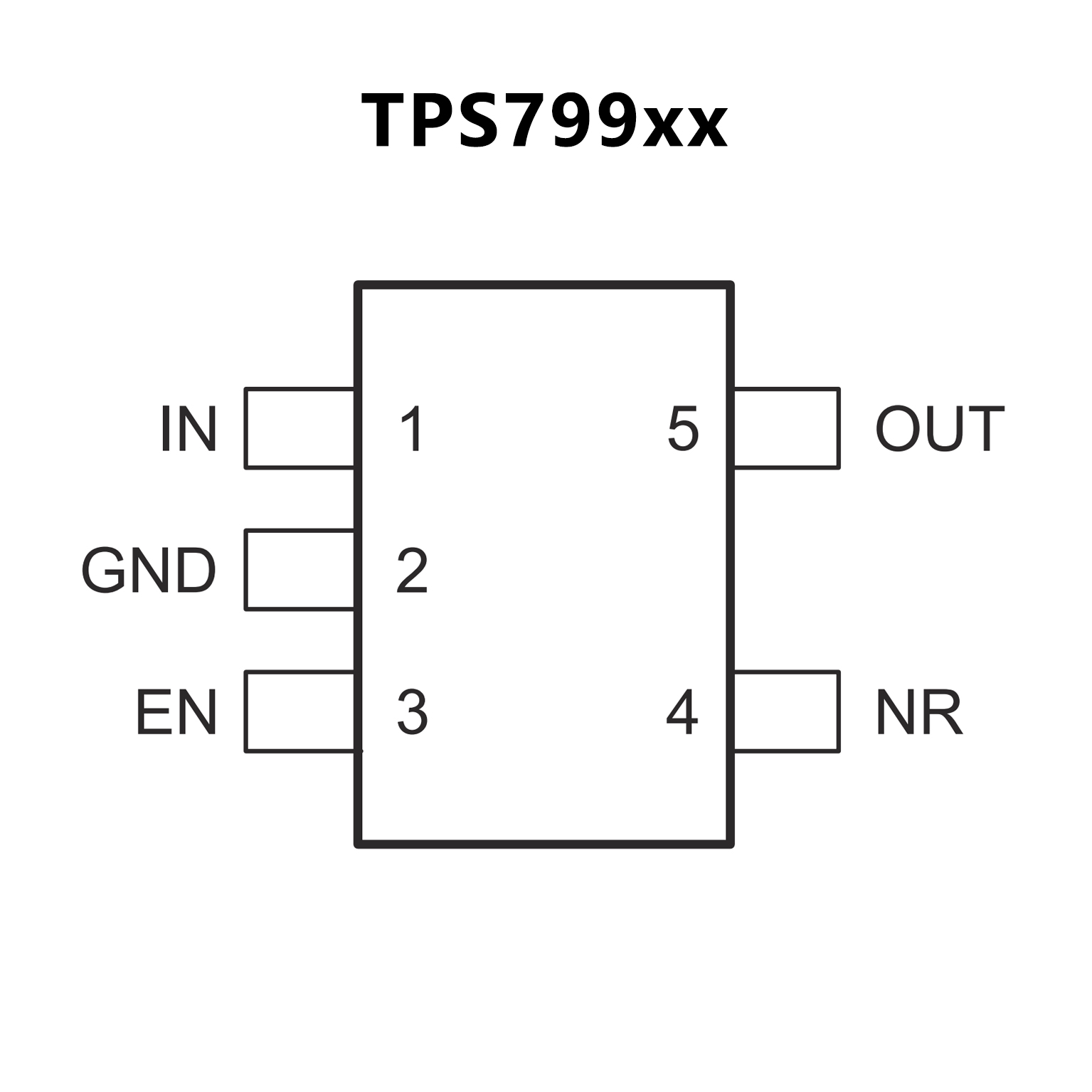

PIN CONFIGUTION
