LM2902.pdf• Wide Supply Ranges Dual Supplies: ±1.5V to ±16V
• Low Quiescent Current: 860μA (TYP)
• Gain-Bandwidth Product: 1.1MHz
• Input Common Mode Voltage Range Includes Ground,
Allowing Direct Sensing Near Ground
• Low Input Offset Voltage: 5.8mV (MAX)
• Low Input Offset Current: 20pA (TYP)
• Low Input Bias Current: 10pA (TYP)
• Differential Input Voltage Range Equal to Maximum- Rated Supply Voltage: 32V
• Open-Loop Differential Voltage Gain: 111dB (TYP)
• Internal Frequency Compensation
• -40℃ to +125℃ Operating Temperature Range

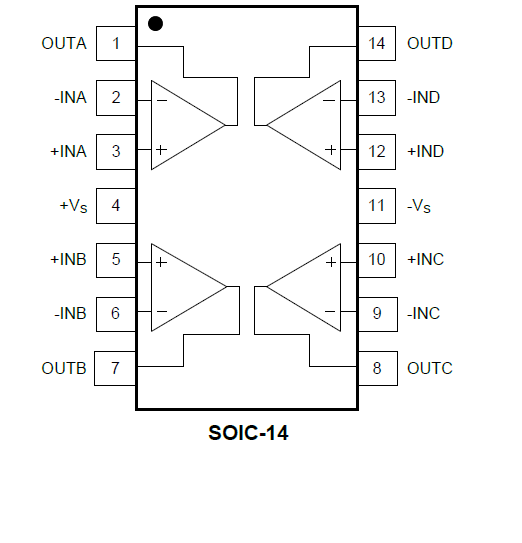

• Available in a Green SOIC-14 Package
• Wide Power Supply Voltage Range: Dual Supplies: ±1.5V to ±18V
• Very Low Supply Current Drain
• LM2902 700μA – Independent of Supply Voltage
• Low Input Bias Current: 20nA
• Low Input Offset Voltage:
A Version: 1mV Typ
Non-A Version: 2mV Typ
• Large DC Voltage Gain: 100dB
• Wide Bandwidth (Unity Gain): 700kHz
• Internally Compensated with Unity Gain
• Input Common-Mode Voltage Range Includes Ground
• Differential Input Voltage Range Equal to the Power Supply Voltage
• Large Output Voltage Swing: 0V to VCC -1.5V
