Precision Micropower Shunt Voltage Reference,DIODES LM4040 Replace ADI LM4040.
LM4040
LM4040.pdf
LM4040.pdfFEATURES
• Small Package: SOT23
SC70-5 Variants Are End of Life (EOL)
• No Output Capacitor Required
• Output Voltage Tolerance
LM4040B: ±0.2% at +25°C
LM4040C : ±0.5% at +25°C
LM4040D: ±1% at +25°C
• Low Output Noise
• (10Hz to 10kHz) 45µVRMS
• Wide Operating Current Range 60µA to 15mA
• Extended Temperature Range -40°C to +125°C
• Low Temperature Coefficient 100 ppm/°C (max)
• Green Molding in Small Package SOT23

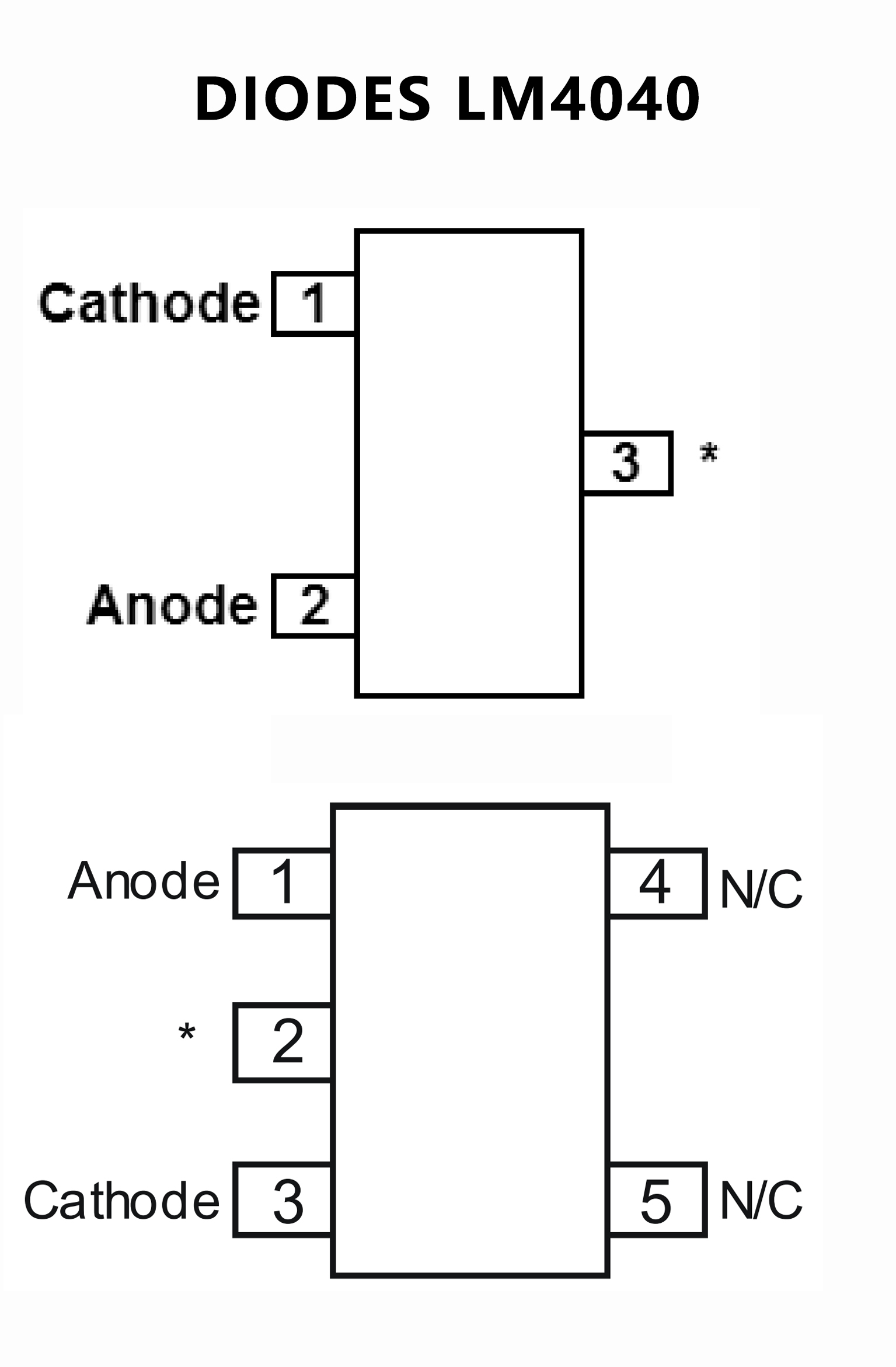

PIN CONFIGUTION
CROSS
FEATURES
• Ultra-Small 3-Pin SC70 Package
• 0.1% (max) Initial Accuracy
• 100ppm/°C (max) Temperature Coefficient
Guaranteed Over -40°C to +125°C Temperature
Range
• Wide Operating Current Range: 60μA to 15mA
• Low 28μVRMS Output Noise (10Hz to 10kHz)
• 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V
Fixed Reverse-Breakdown Voltages
• No Output Capacitors Required
• Tolerates Capacitive Loads
• AEC-Q100 Qualified - Refer to Ordering Information
table for /V parts

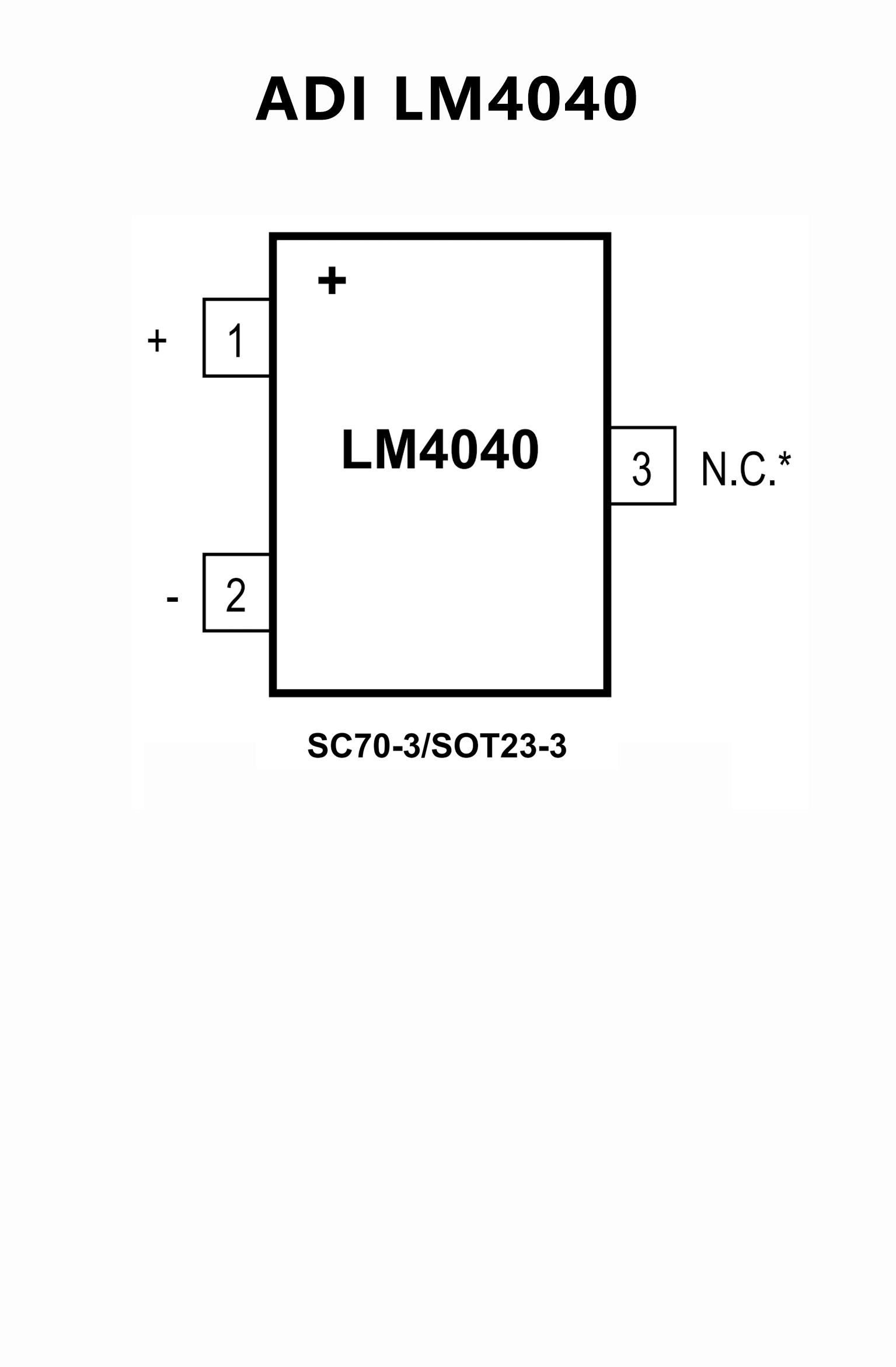

PIN CONFIGUTION
