Precision Micropower Shunt Voltage Reference,DIODES LM4040 P2P TI LM4040.
LM4040
LM4040.pdf
LM4040.pdfFEATURES
• Small Package: SOT23
SC70-5 Variants Are End of Life (EOL)
• No Output Capacitor Required
• Output Voltage Tolerance
LM4040B: ±0.2% at +25°C
LM4040C : ±0.5% at +25°C
LM4040D: ±1% at +25°C
• Low Output Noise
• (10Hz to 10kHz) 45µVRMS
• Wide Operating Current Range 60µA to 15mA
• Extended Temperature Range -40°C to +125°C
• Low Temperature Coefficient 100 ppm/°C (max)
• Green Molding in Small Package SOT23

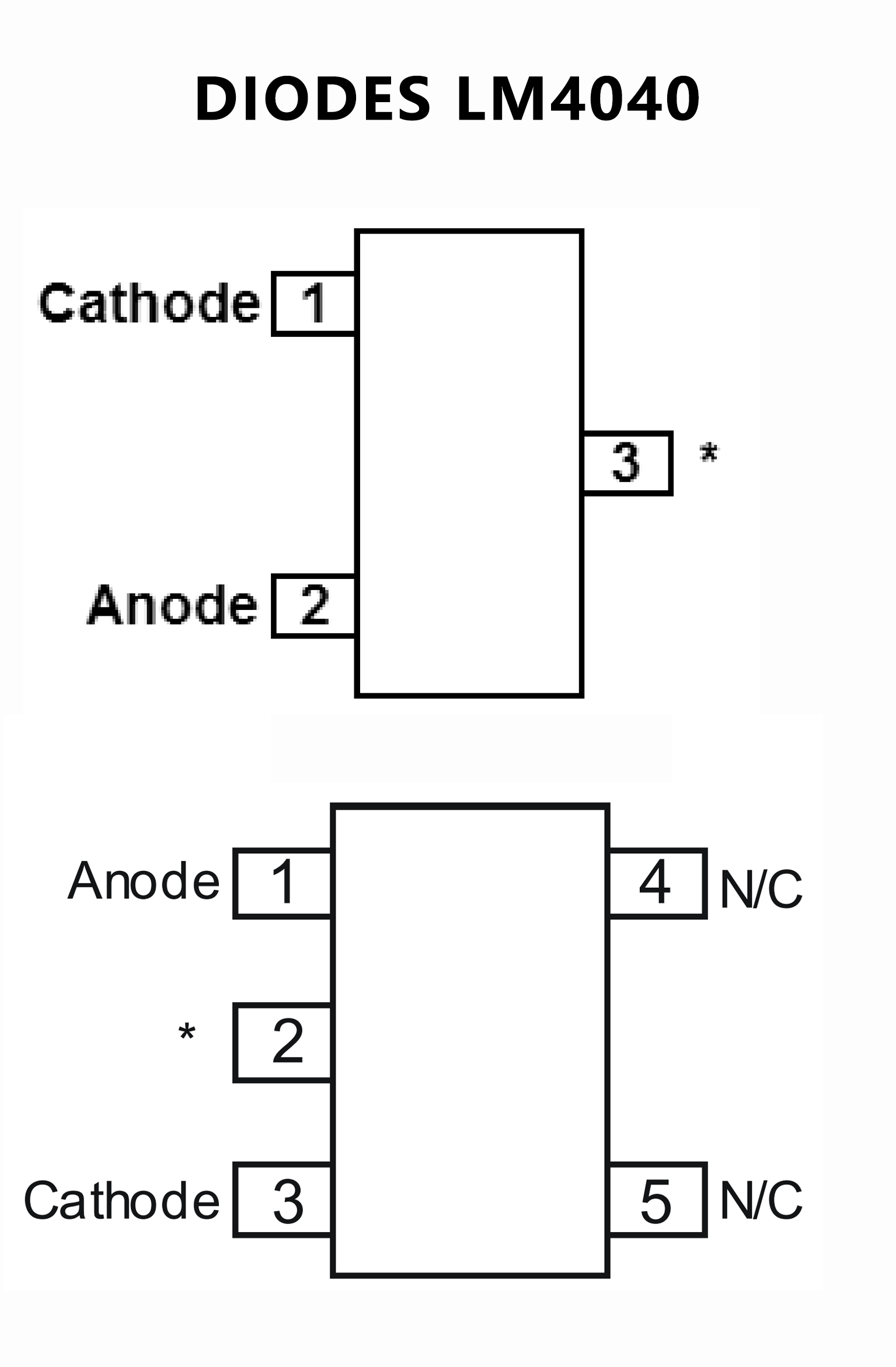

PIN CONFIGUTION
CROSS
FEATURES
• Fixed Output Voltages of 2.048 V, 2.5 V, 3 V,
4.096 V, 5 V, 8.192 V, and 10 V
• Tight Output Tolerances and Low Temperature
Coefficient
– Max 0.1%, 100 ppm/°C – A Grade
– Max 0.2%, 100 ppm/°C – B Grade
– Max 0.5%, 100 ppm/°C – C Grade
– Max 1.0%, 150 ppm/°C – D Grade
• Low Output Noise: 35 μVRMS Typ
• Wide Operating Current Range: 45 μA Typ to 15mA
• Stable With All Capacitive Loads; No Output
Capacitor Required
• Available in Extended Temperature Range: –40°C
to 125°C

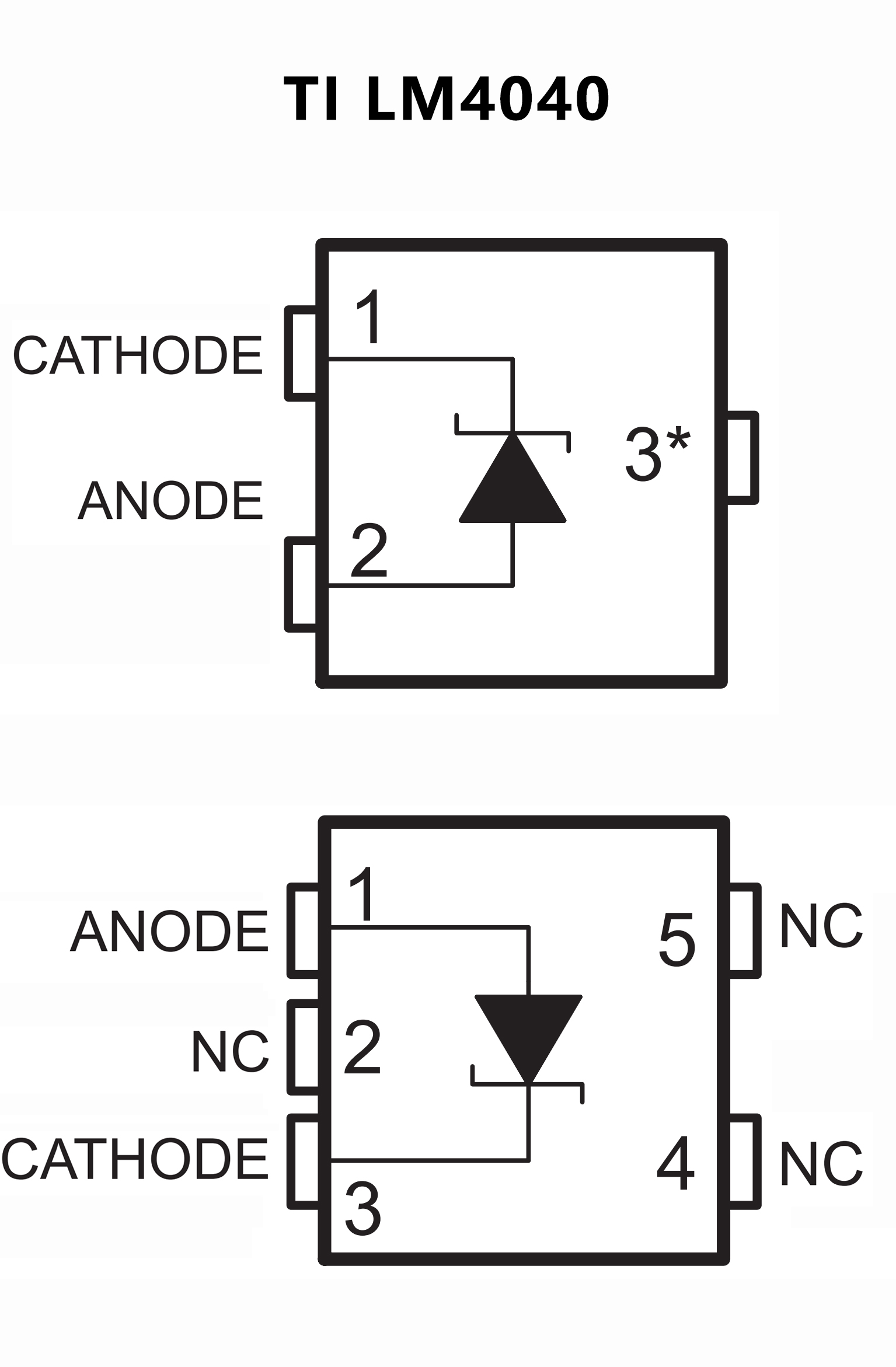

PIN CONFIGUTION
