Dual supply translating transceiver; auto direction sensing; 3-state, LXB0104 Replace NTB0104.
LXB0104
LXB0104.pdf
LXB0104.pdfFEATURES
• Bi-Directional Voltage Translation for Push-Pull
Applications
• Specified from -40°C to +125°C
• VCCA for A Port: 1.2V to 3.6V
• VCCB for B Port: 1.65V to 5.5V
• Up & Down Translation Data Rate
▪ ≤ 110Mbps, CL = 15pF, 3.3V to 5.0V Translation
▪ ≤ 60Mbps, CL = 15pF, 1.8V to 3.3V Translation
▪ ≤ 30Mbps, CL = 15pF, 1.2V to 1.8V Translation
• IOFF Circuitry Provides Partial-Power-Down Mode
Operation
• OE Pin Supports High-Impedance Exists Between Ports
• ESD Protection Exceeds JESD 22
▪ 7000V HBM (B Port), 3000V HBM (A Port)
▪ 1500V CDM (C101)
• Latchup Exceeds 100mA per JESD 17
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change
control

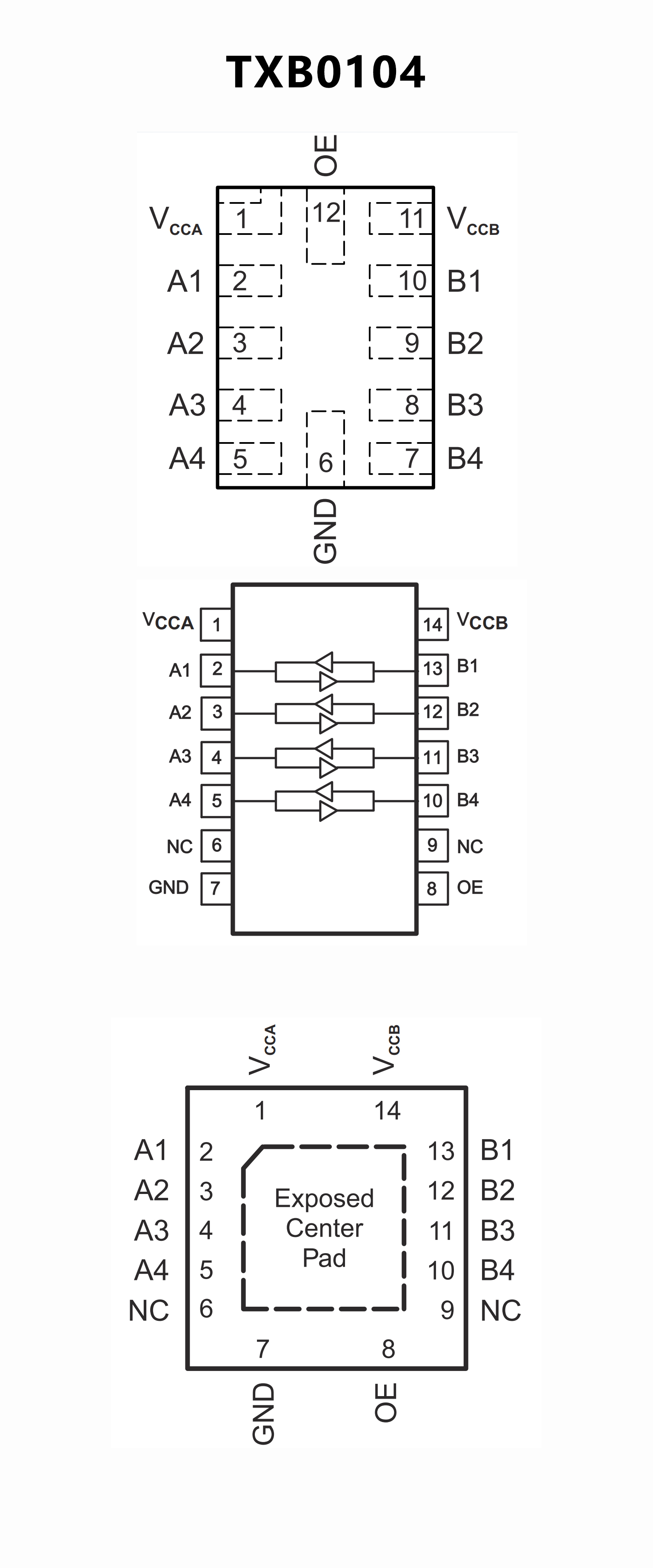

PIN CONFIGUTION
CROSS
FEATURES
• Wide supply voltage range:
• VCC(A): 1.2 V to 3.6 V and VCC(B): 1.65 V to 5.5 V
• IOFF circuitry provides partial Power-down mode operation
• Inputs accept voltages up to 5.5 V
• ESD protection:
• HBM JESD22-A114E Class 2 exceeds 2500 V for A port
• HBM JESD22-A114E Class 3B exceeds 15000 V for B port
• MM JESD22-A115-A exceeds 200 V
• CDM JESD22-C101E exceeds 1500 V (For NTB0104UK 1000 V)
• Latch-up performance exceeds 100 mA per JESD 78B Class II
• Multiple package options
• Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃

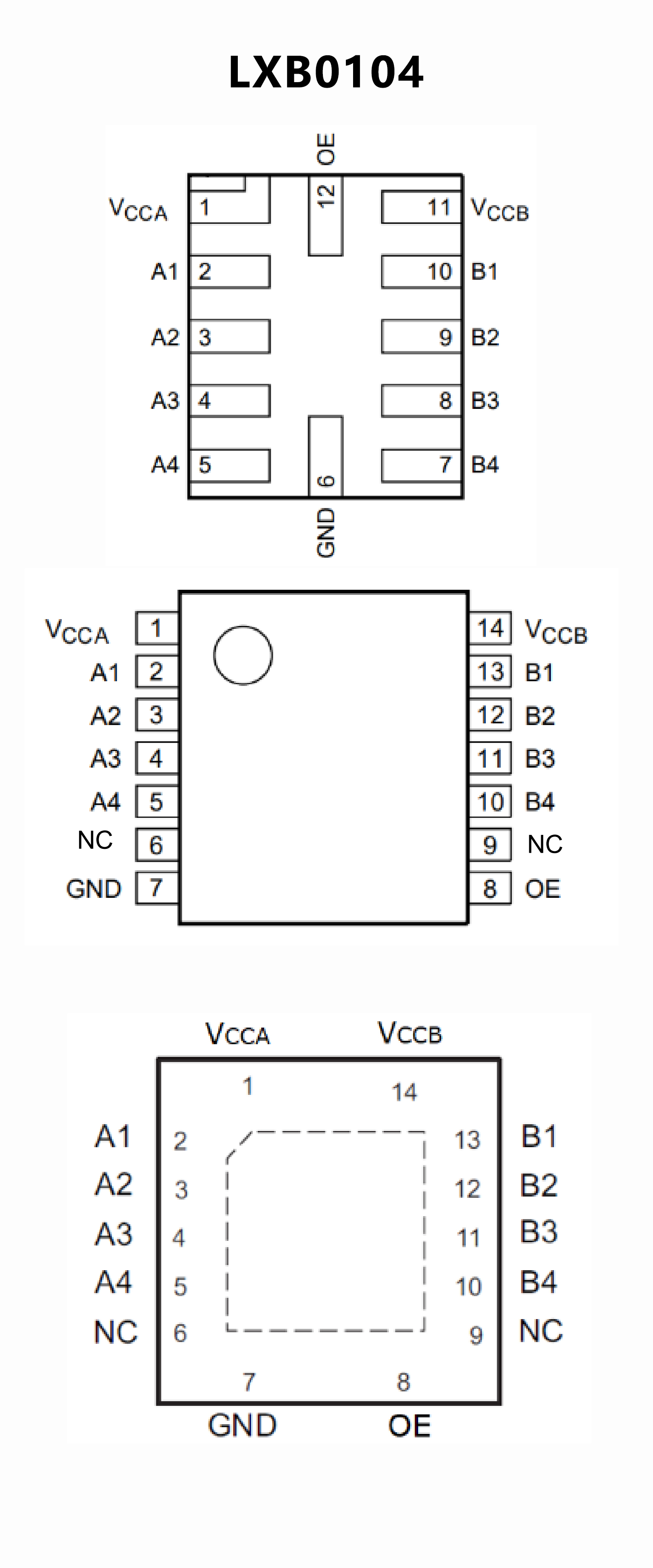

PIN CONFIGUTION
