Precision Timers, NE555 Replace TI LM555.
NE555
NE555.pdf
NE555.pdfFEATURES
• Timing from microseconds to hours
• Astable or monostable operation
• Adjustable duty cycle
• TTL compatible output can source or sink up to 200mA
• “Green” Molding Compound (No Br, Sb)
• Lead Free Finish/ RoHS Compliant (Note 1)

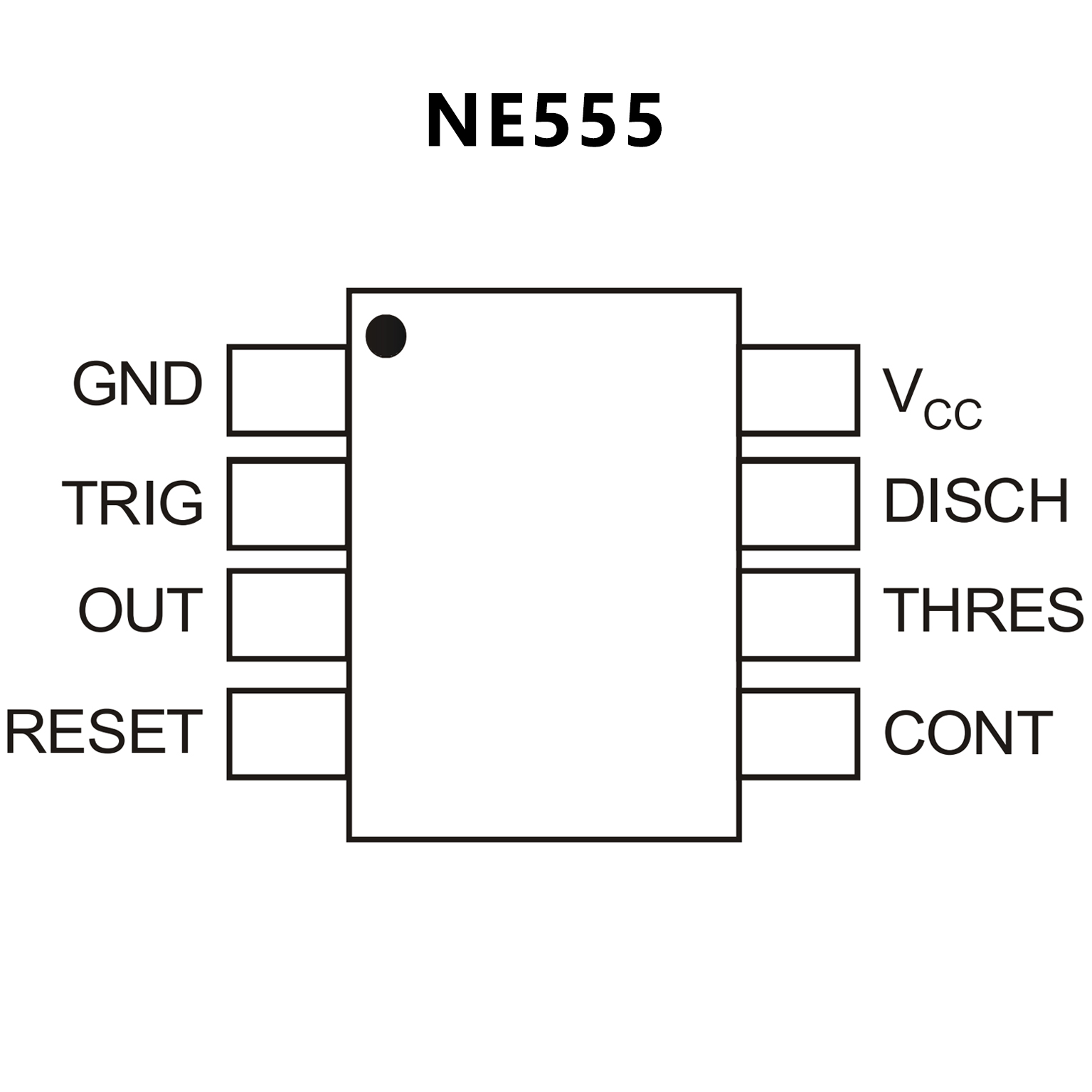

PIN CONFIGUTION

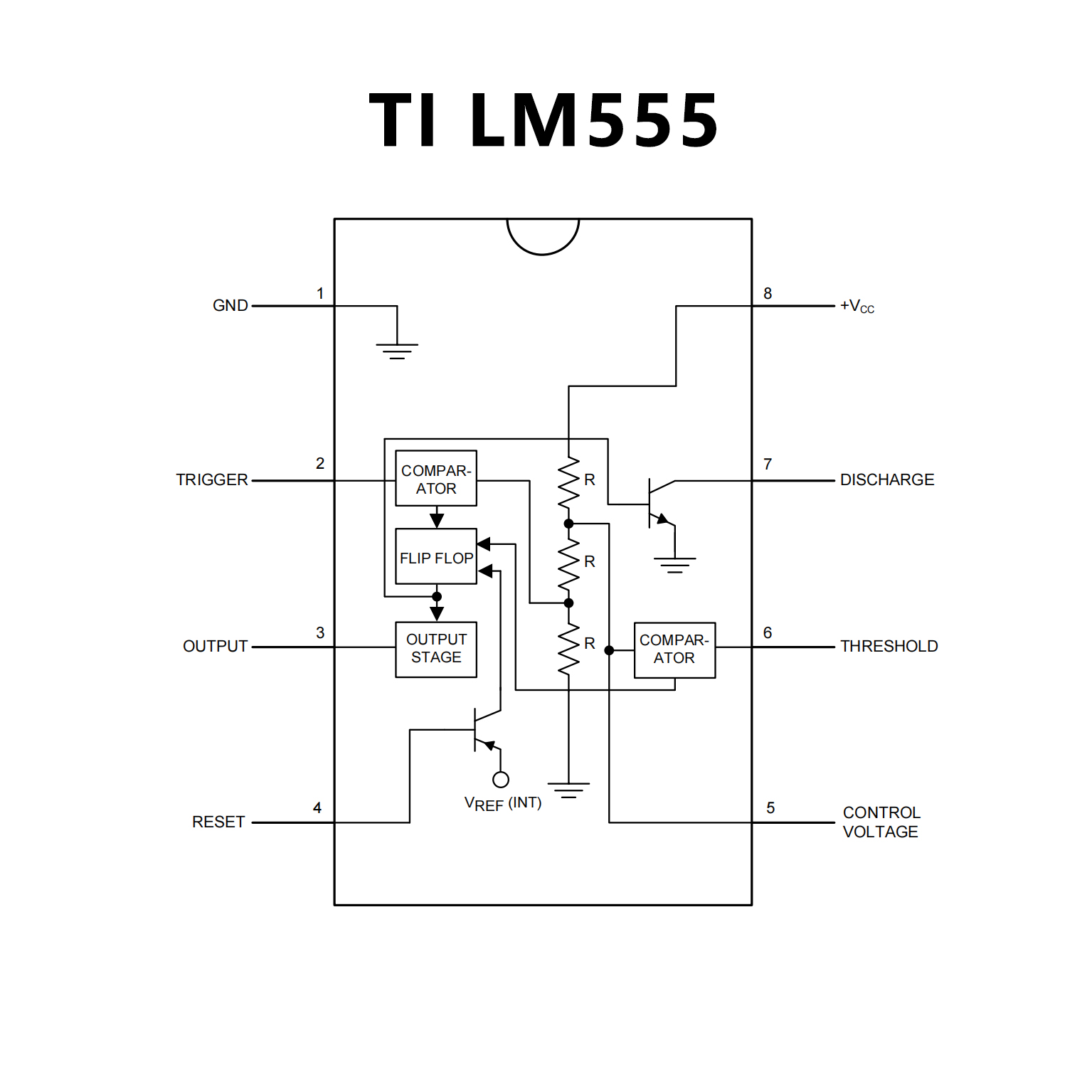

CROSS
FEATURES
• Direct Replacement for SE555/NE555
• Timing from Microseconds through Hours
• Operates in Both Astable and Monostable Modes
• Adjustable Duty Cycle
• Output Can Source or Sink 200 mA
• Output and Supply TTL Compatible
• Temperature Stability Better than 0.005% per °C
• Normally On and Normally Off Output
• Available in 8-pin VSSOP Package
PIN CONFIGUTION
