3.3V, 4-Bit, 2-Port Nanoswitchw/Individual Enables, PI3B3126 Replace SN74CBTLV3126.
FEATURES

• Near-Zero propagation delay
• 5Ω switches connect inputs to outputs
• Fast Switching Speed -4ns Max.
• Ultra Low Quiescent Power (0.1µA Typical)
  Ideally suited for notebook applications
• Packaging (Pb-free & Green available):
  14-pin, SOIC (W)
  14-pin,TSSOP (L)

  14-pin, TQFN (ZDB)

  16-pin,QSOP (Q)

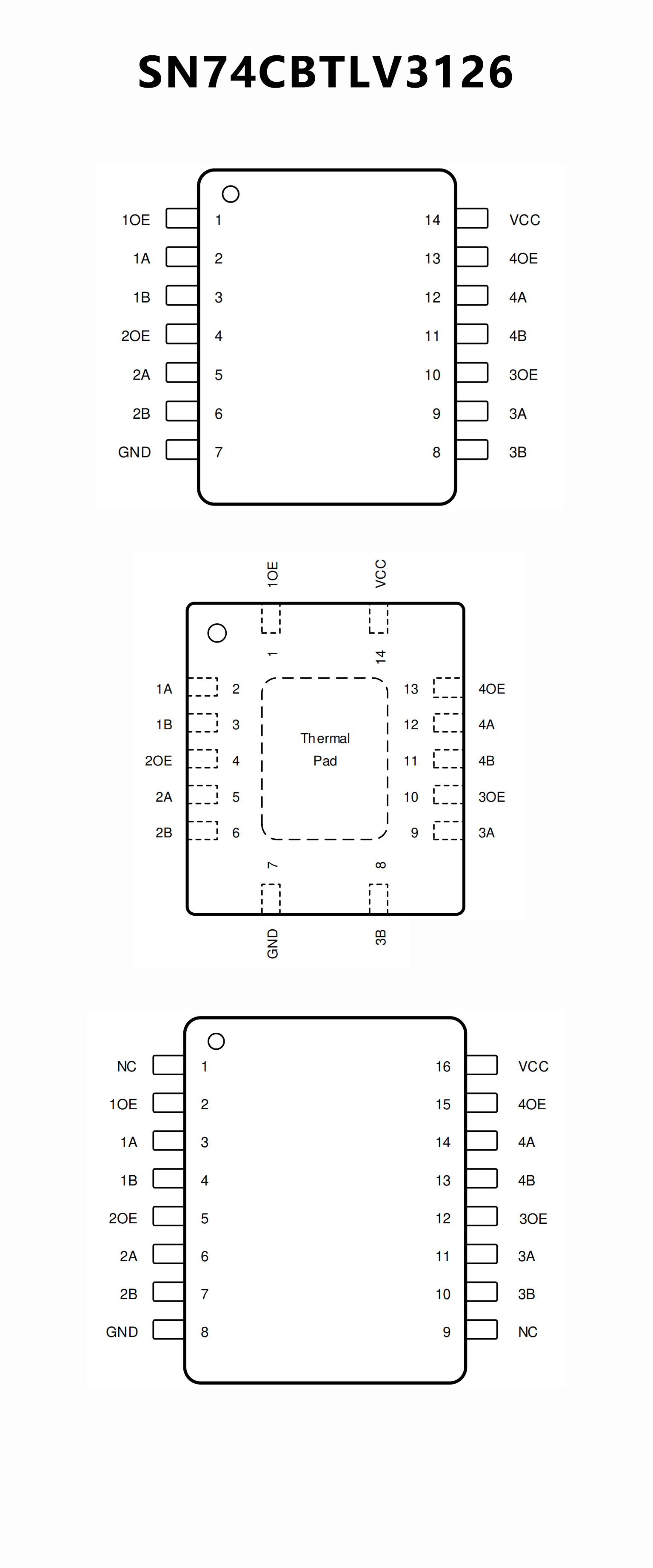

PIN CONFIGUTION
CROSS
SN74CBTLV3126 SN74CBTLV3126.pdf

No.14284

FEATURES
• Standard 126-type pinout
• 5-Ω switch connection between two ports
• Rail-to-rail switching on data I/O ports
• Ioff supports partial-power-down mode operation
• Latch-up performance exceeds 100 mA per JESD
   78, Class II
