3.3V, 8:1 Mux/DeMux NanoSwitch, PI3B3251 Replace CBT3251.
FEATURES

 Near-Zero propagation delay

 5Ω switches connect inputs to outputs
 Ultra Low Quiescent Power (0.1µA typical)
  – Ideally suited for notebook applications
 Pin compatible with 74 series 251 logic devices
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 For automotive applications requiring specific change control
 Packaging (Pb-free & Green available):
  – 16-pin 173-mil Wide (TSSOP)

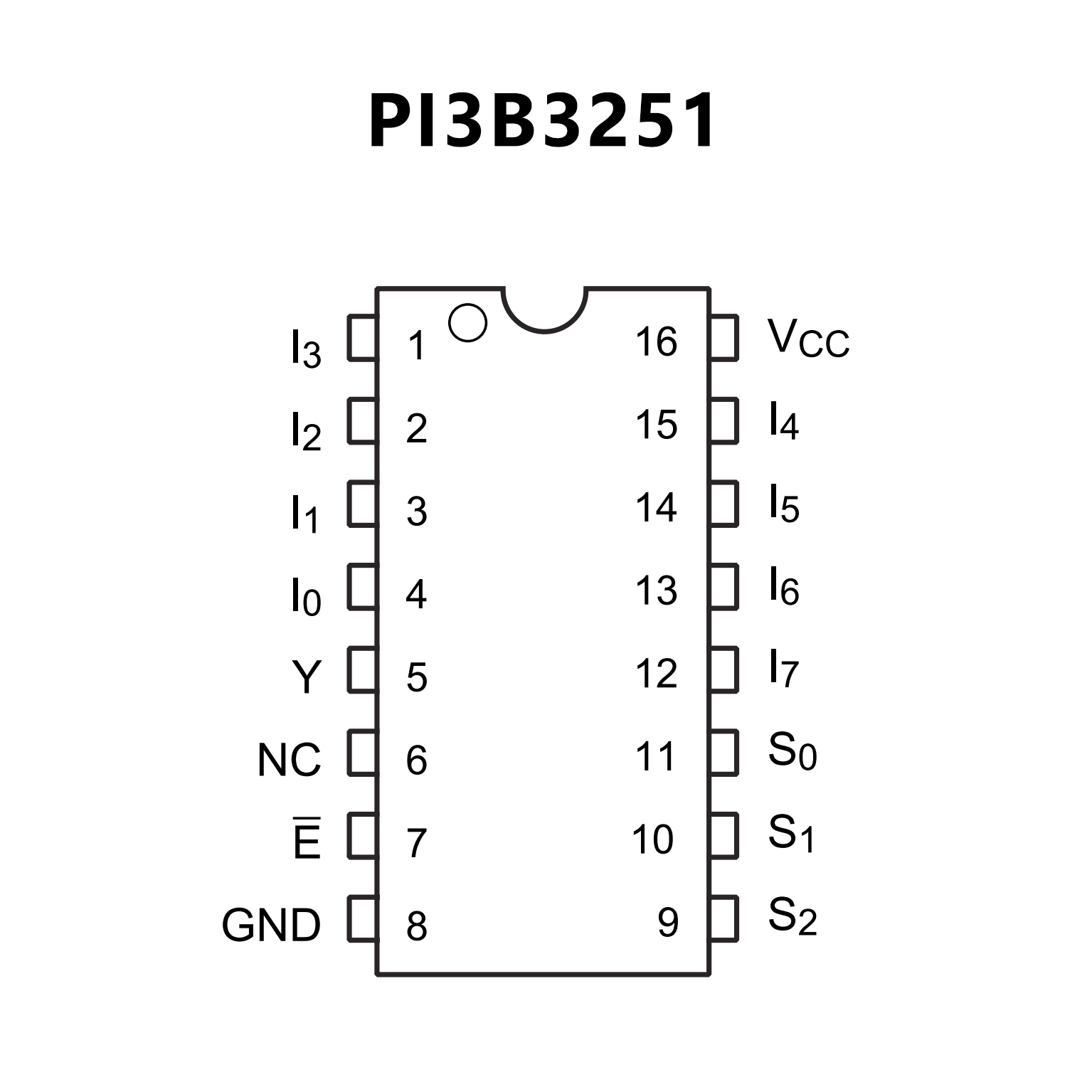

PIN CONFIGUTION
CROSS
CBT3251 CBT3251.pdf

No.14308

FEATURES

•  switch connection between two ports

• TTL-compatible input levels
• Minimal propagation delay through the switch
• ESD protection exceeds 2000V HBM per JESD22-A114,
  200V MM per JESD22-A115 and 1000V CDM per
  JESD22-C101
• Latch-up testing is done to JESDEC Standard JESD78
  which exceeds 100 mA

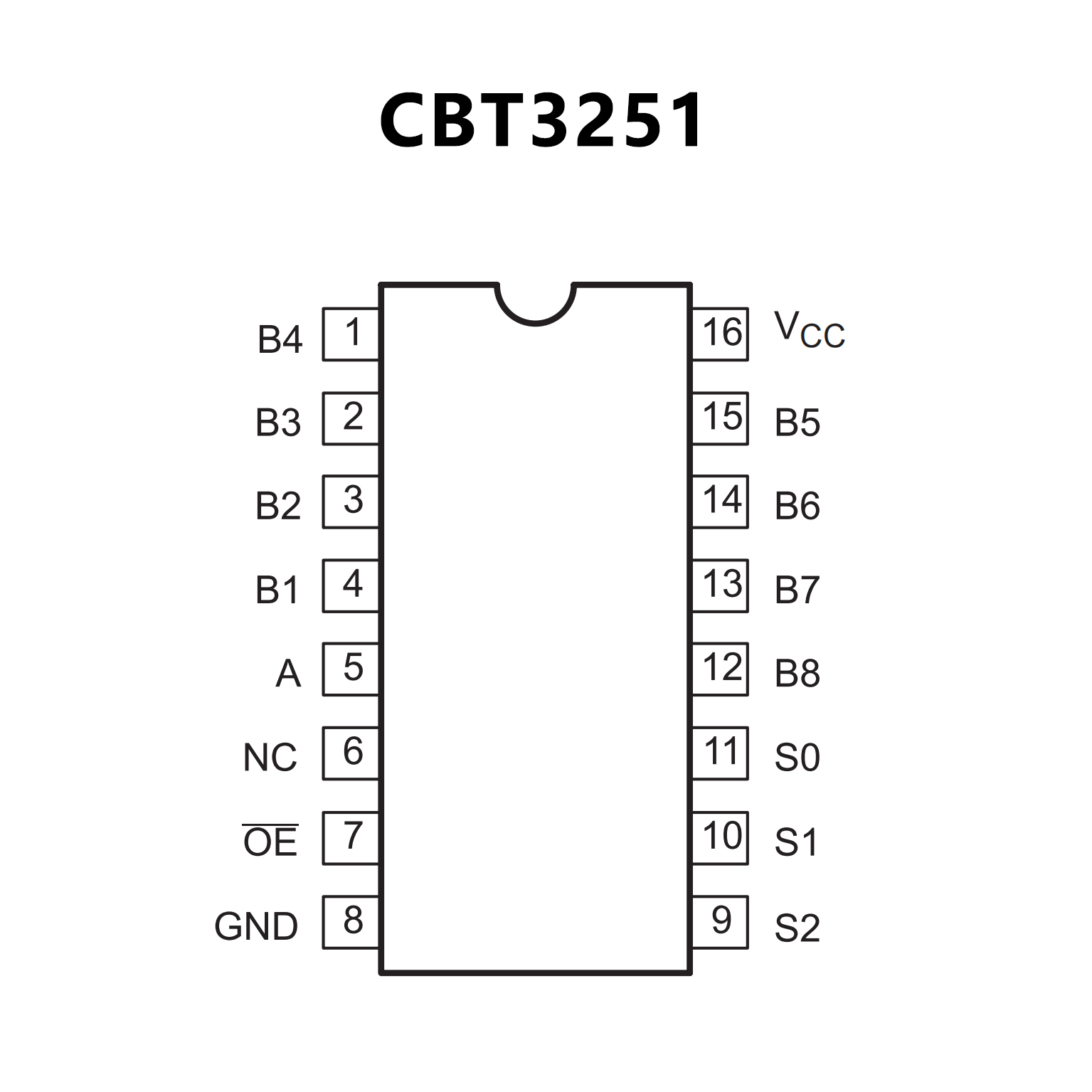

PIN CONFIGUTION
