3.3V, Dual 4:1 Mux/DeMux NanoSwitch, PI3B3253 Replace SN74CBTLV3253.
FEATURES

 Near-Zero Propagation Delay

 5Ω Switches Connect Inputs to Outputs
 Fast Switching Speed: 5.2ns max.
 Ultra Low Quiescent Power (0.2µA Typical)
   Ideally Suited for Notebook Applications
 Pin Compatible with 74 Series 253 Logic Devices
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 For automotive applications requiring specific change control
 Packaging (Pb-free & Green):
  16-pin, QSOP (Q)
  16-pin, TSSOP (L)
  16-pin, UQFN (ZHD)

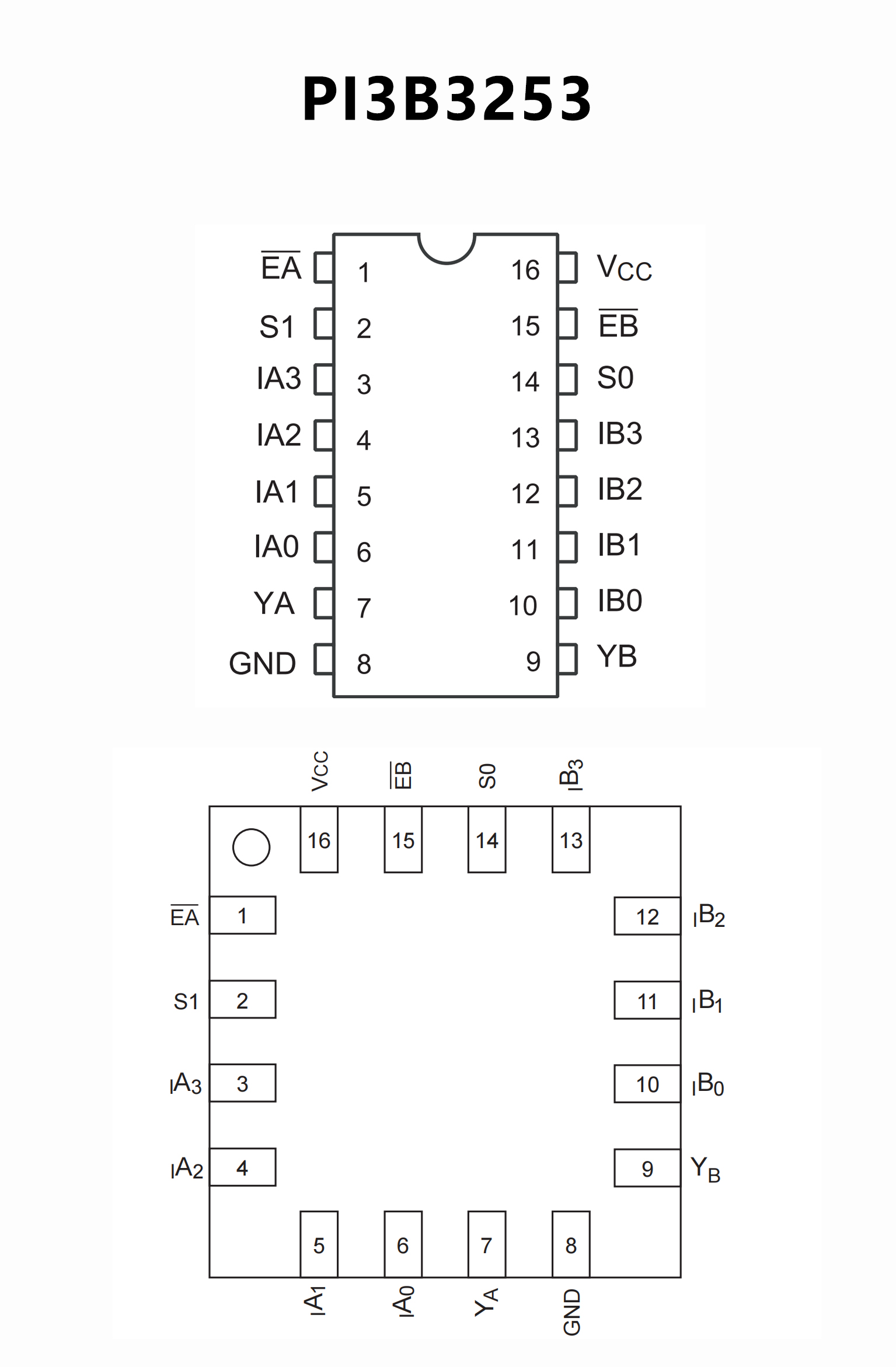

PIN CONFIGUTION
CROSS
SN74CBTLV3253 SN74CBTLV3253.pdf

No.14301

FEATURES
• Functionally Equivalent to QS3253
• 5-Ω Switch Connection Between Two Ports
• Rail-to-Rail Switching on Data I/O Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100mA Per JESD78, Class II

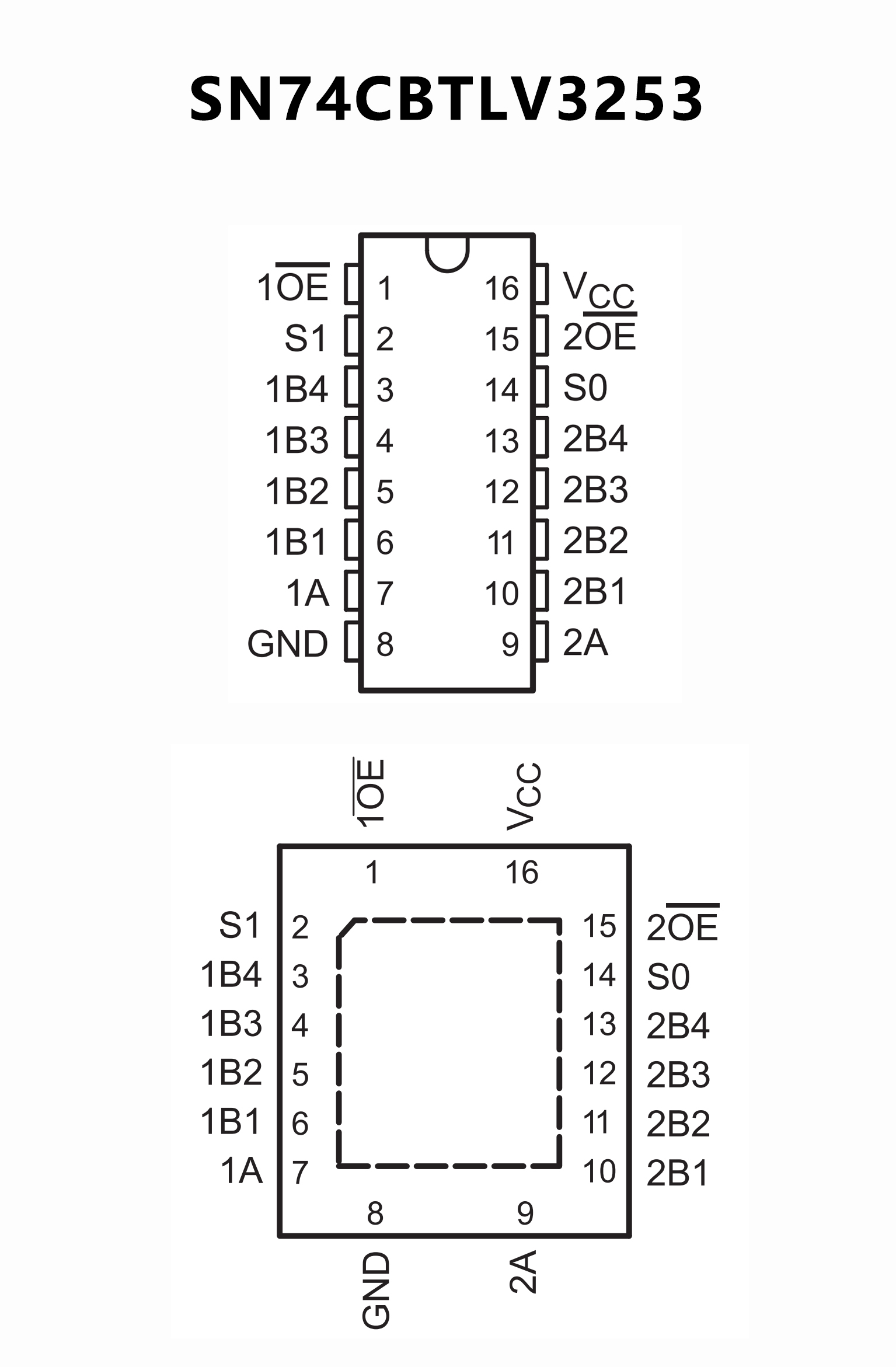

PIN CONFIGUTION
