3.3V, 10-Bit, 2-Port, NanoSwitch, PI3B3861 Replace SN74CBT3861.
FEATURES

 Near-Zero propagation delay

 5-ohm switches connect inputs to outputs
• Fast Switching Speed: 4.5ns (max.)
 Ultra Low Quiescent Power (0.1μA typical)
  Ideally suited for notebook applications
 Packaging (Pb-free & Green):
  24-pin 150-mil wide plastic QSOP (Q)

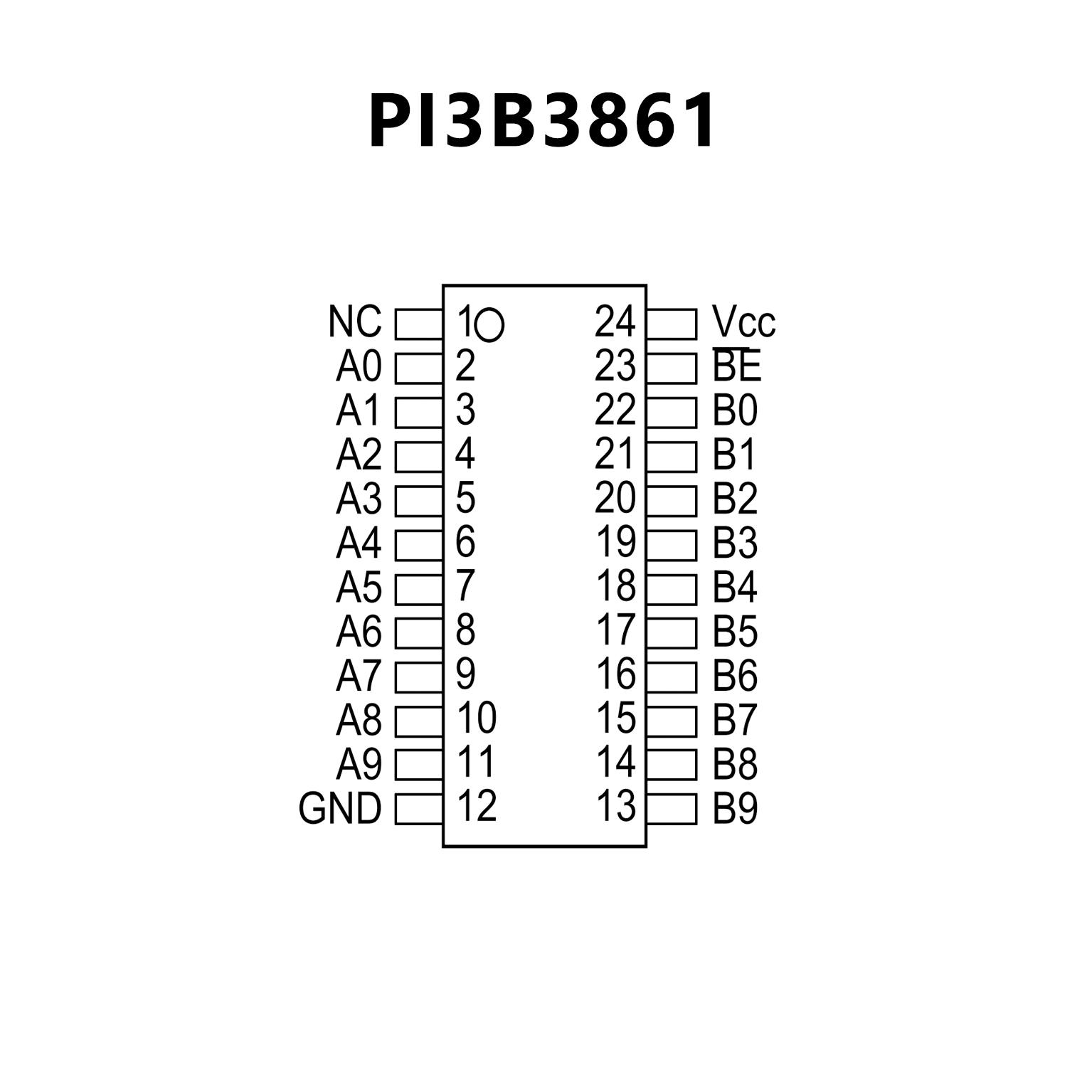

PIN CONFIGUTION
CROSS
SN74CBT3861 SN74CBT3861.pdf

No.14300

FEATURES

• 5-Ω Switch Connection Between Two Ports

• TTL-Compatible Input Levels

• Latch-Up Performance Exceeds 250 mA Per

  JESD 17

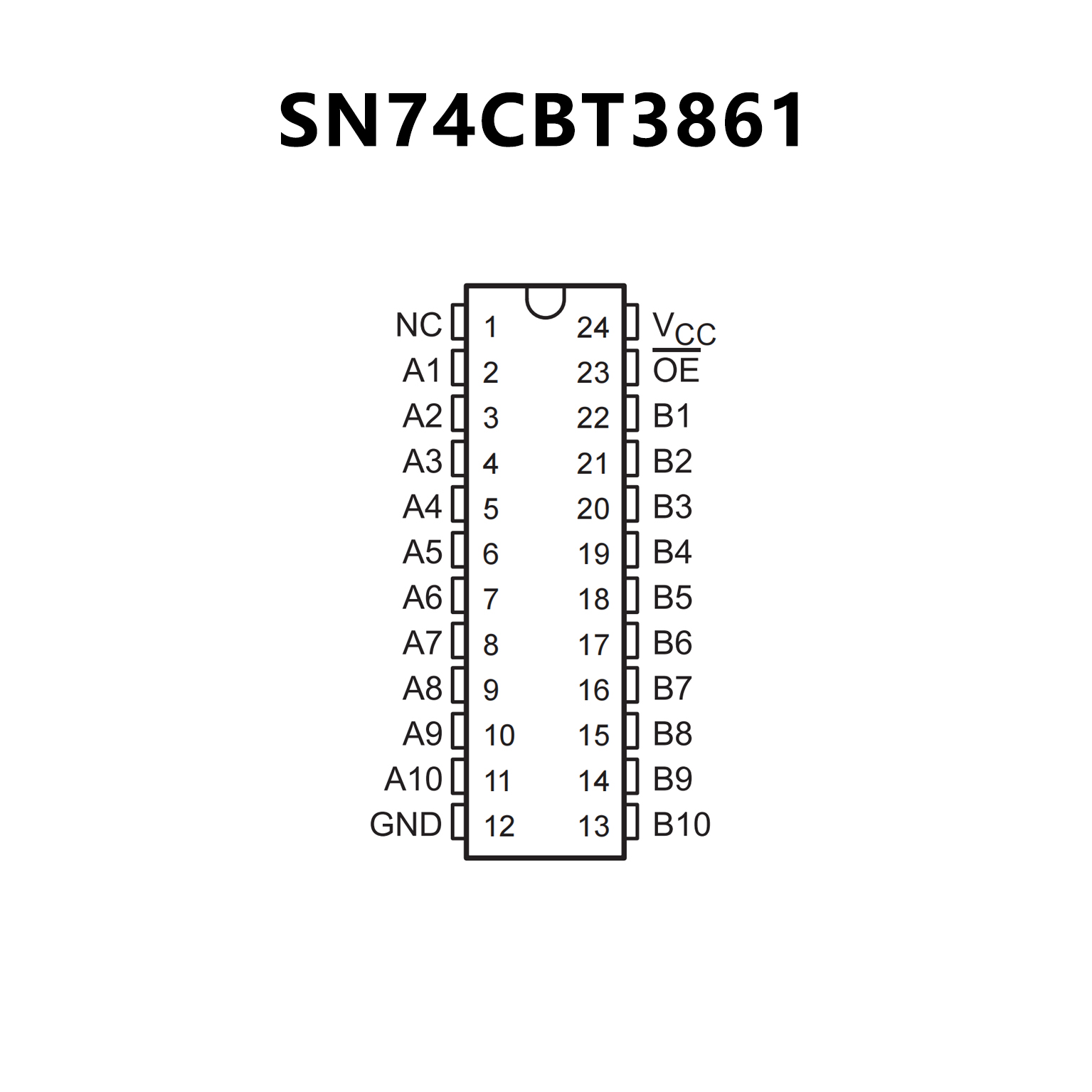

PIN CONFIGUTION
