4-Channel 2:1 Mux/DeMux, Enable Low 1.8V/2.5V/3.3V, High-Bandwidth, Hot Plug, PI3CH3257 P2P SN74CBTLV3257.
FEATURES

 Near-Zero Propagation Delay

 402 Switches Connect Inputs to Outputs

 High Signal Passing Bandwidth (5ooMHz)

  Beyond Rail-to-Rail Switching

  0 to 5V Switching with 3.3V Power Supply

  0 to 3.3V Switching with 2.5V Power Supply

  0 to 2.5V Switching with 1.8V Power Supply

 5V I/O Tolerant with Supply in OFF and ON State

 1.8V,2.5V and 3.3V Supply Voltage Operation

 Hot Insertion Capable

 Industrial Operating Temperature: -40C to +85C

 8kV ESD Protection (Human Body Model)

 Latch-Up Performance: >20OmA per JESD17

 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

 Halogen and Antimony Free. “Green” Device (Note 3)

 For automotive applications requiring specific change

  control

 Packaging (Pb-free & Green available):

  16-pin, 173-mil Wide Plastic, TSSOP (L)

  16-pin, 150-mil Wide Plastic, QSOP (Q)

  16-pin, 1.8x2.6mm, UQFN (ZTA)

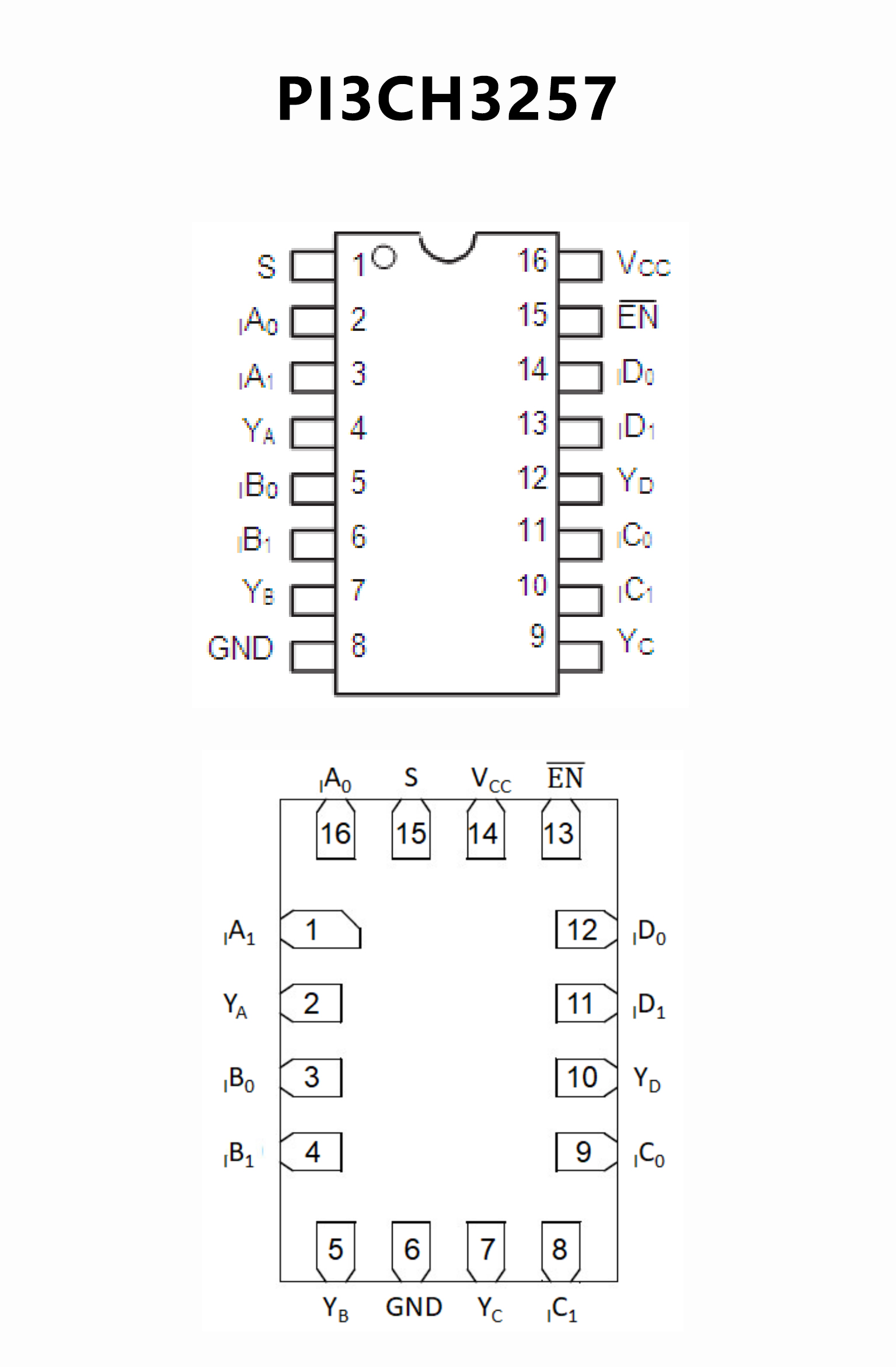

PIN CONFIGUTION
CROSS
SN74CBTLV3257 SN74CBTLV3257.pdf

No.14291

FEATURES

• 5-Ω Switch Connection Between Two Ports

• Rail-to-Rail Switching on Data I/O Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78,
  Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)














PIN CONFIGUTION
