• Near-Zero Propagation Delay
• 402 Switches Connect Inputs to Outputs
• High Signal Passing Bandwidth (5ooMHz)
Beyond Rail-to-Rail Switching
0 to 5V Switching with 3.3V Power Supply
0 to 3.3V Switching with 2.5V Power Supply
0 to 2.5V Switching with 1.8V Power Supply
• 5V I/O Tolerant with Supply in OFF and ON State
• 1.8V,2.5V and 3.3V Supply Voltage Operation
• Hot Insertion Capable
• Industrial Operating Temperature: -40C to +85C
• 8kV ESD Protection (Human Body Model)
• Latch-Up Performance: >20OmA per JESD17
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change
control

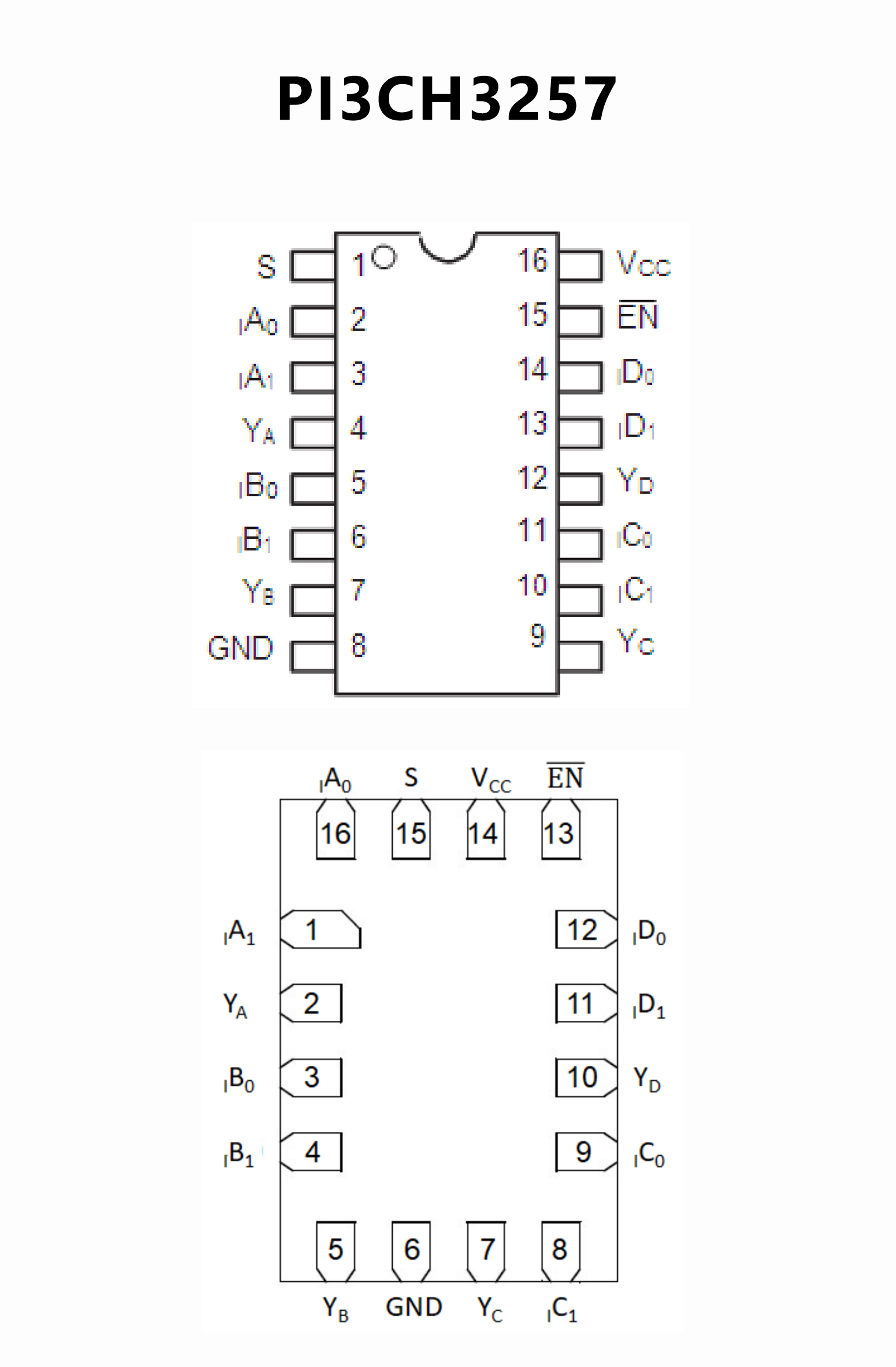

• Packaging (Pb-free & Green available):
16-pin, 173-mil Wide Plastic, TSSOP (L)
16-pin, 150-mil Wide Plastic, QSOP (Q)
16-pin, 1.8x2.6mm, UQFN (ZTA)

• Wide supply range: 1.5 V to 5.5 V
