Dual Bidirectional I3C/I2C-bus Voltage-level Translator, PI3CLS9606 Replace P3A9606.
PI3CLS9606 PI3CLS9606.pdf
FEATURES

• I3C/I2C-bus and SMBus bi-directional level translator

• Port A operating supply voltage Vcca range of 0.72V to

  1.98V; Port B operating supply voltage Vcc range ofO.72V

  to 1.98V.VccASVccB

• Active HIGH repeater enable input

• Lock-up free operation

• Powered-off high-impedance P²C-bus pins

• ESD protection exceeds 8KV HBM per JESD22-Al14

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• For automotive applications requiring specific change

  control

•  Packaging (Pb-free & Green available):

  8-Lead, 1.4mmx 1.0mm (HK)

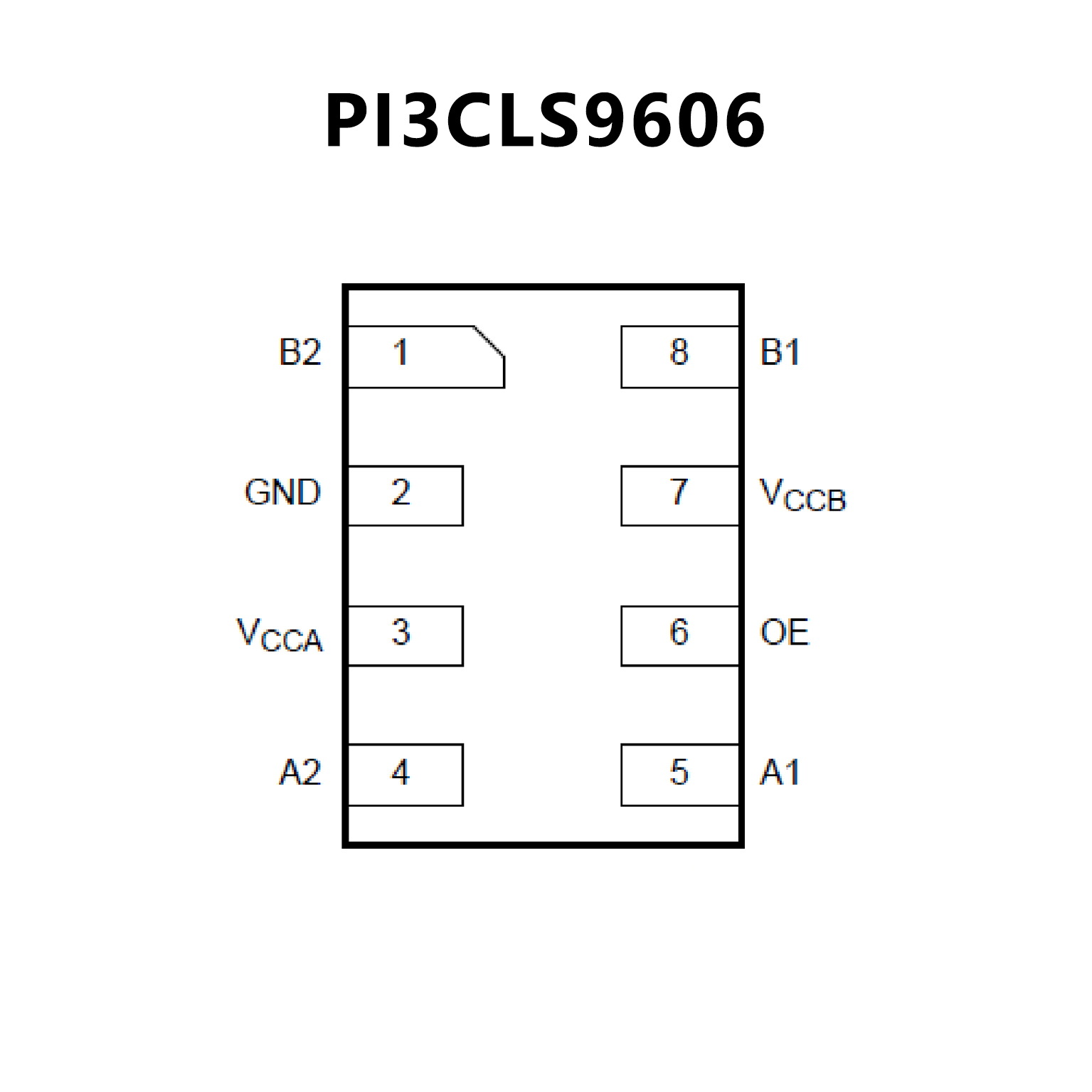

PIN CONFIGUTION
CROSS
P3A9606 P3A9606.pdf

No.14330

FEATURES

• Wide supply voltage range:

  – VCCA: 0.72 V to 1.98 V and VCCB: 0.72 V to 1.98 V;
  VCCA ≤ VCCB
• IOFF circuitry provides partial Power-down mode operation
• Inputs accept voltages up to 1.98 V and are overvoltage
  tolerant to 1.98 V
• Provided voltage level translation for I3C, I2C-bus, SMBus
  and SPI devices
• ESD protection:
  – HBM JESD22-A114E Class 2 exceeds 2000 V
  – CDM JESD22-C101E exceeds 1000 V
• Latch-up performance exceeds 100mA per JESD78B Class II
• Available in X2SON8 package
• Specified from -40 °C to +85 °C and -40 °C to +125 °C

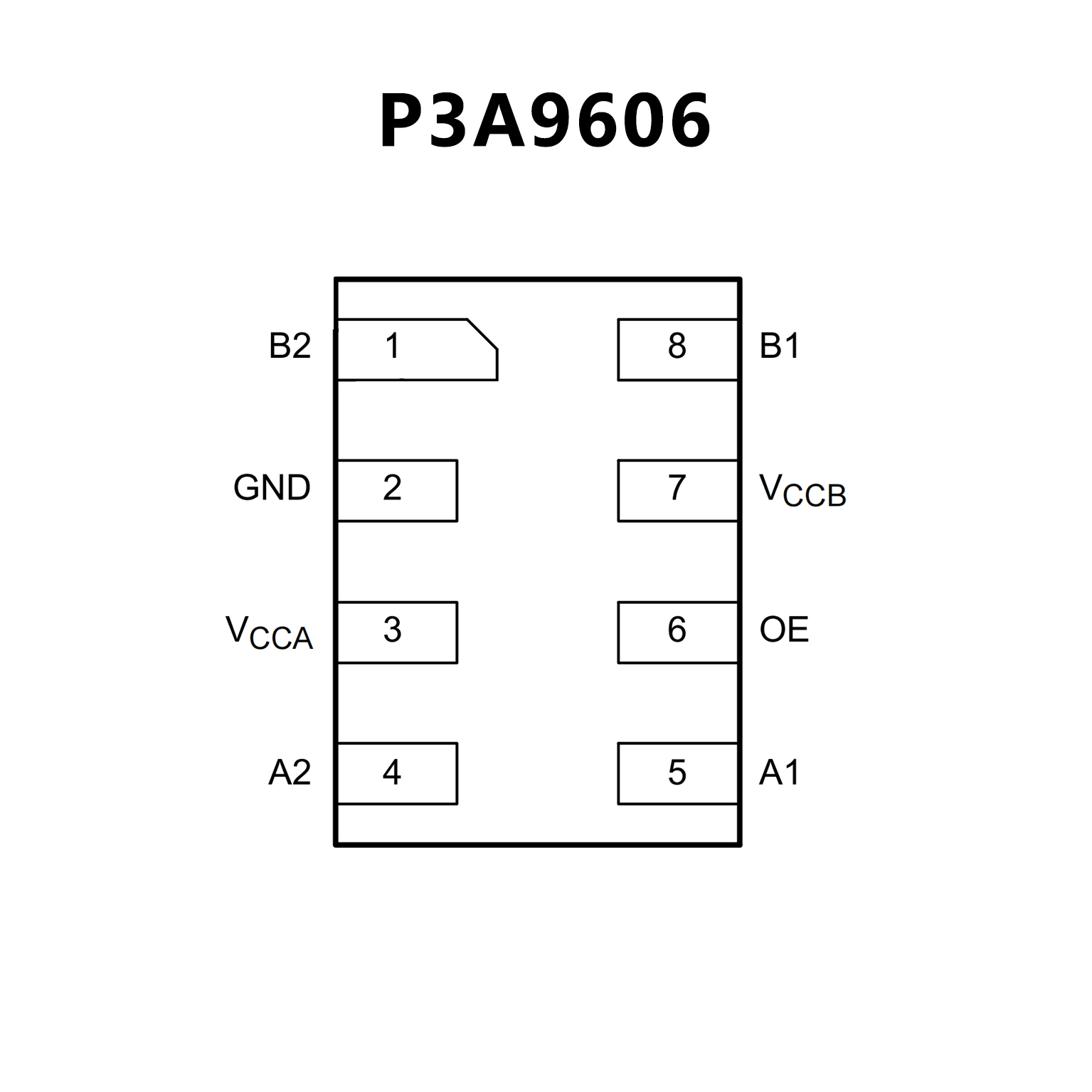

PIN CONFIGUTION
