High Speed USB 2.0 1:2 Mux/DeMux, PI3USB3000 Replace TS3USB3000.
PI3USB3000
PI3USB3000.pdf
PI3USB3000.pdfFEATURES
• Differential Bidirectional 2:1 Mux/DeMux
• Wide Input Voltage Range: 0 to 3.6V
• Mobile Hi-Definition Link (MHL) Switch:
Bandwidth (-3dB): 5.3GHz
RON (Typical): 5.7Ω
CON (Typical): 1.5pF @ 240MHz
• USB Switch:
Bandwidth (-3dB): 5.5GHz
RON (Typical): 4.6Ω
CON (Typical): 1.5pF @ 240MHz
• Low Propagation Delay, 0.1ns (Typical)
• Low Off-Isolation: -34dB @ 240MHz
• Low Crosstalk: -37dB @ 240MHz
• Low Power Consumption: 35µA (Typical)
• Wide Supply Voltage: 1.8V to 5.5V
• Supports 1.8V Logic on Control Pins
• Protection Feature
Power-off Protection for Minimizing Current
Leakage in Power-down Mode
• Connector Pins are High Voltage Tolerated
− D± Tolerance to 9V
Overvoltage Protection at D±
• Wide Temperature Range: -40oC to 85oC
• Packaging (Pb-free & Green):
10-contact, UQFN (ZUA), 1.5x2mm, 0.5mm(H),
0.6mm pitch

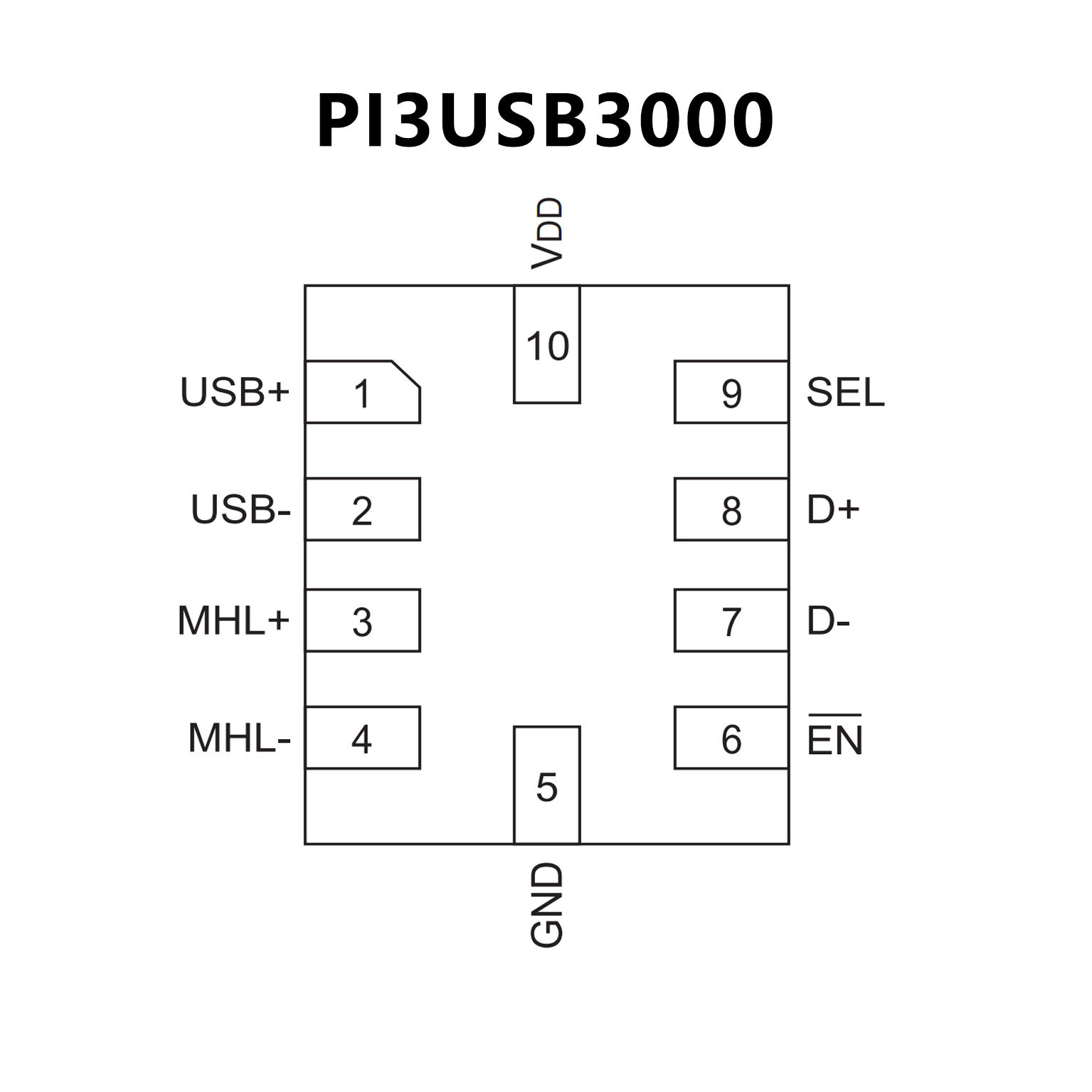

PIN CONFIGUTION
CROSS
FEATURES
• VCC Range 2.3 V to 4.8 V
• Mobile Hi-Definition Link (MHL) Switch:
– Bandwidth (–3 dB): 6.1 GHz
– RON (Typical): 5.7 Ω
– CON (Typical): 1.6 pF
• USB Switch:
– Bandwidth (–3 dB): 6.1 GHz
– RON (Typical): 4.6 Ω
– CON (Typical): 1.4 pF
• Current Consumption: 30 µA (Typical)
• Special Features:
– IOFF Protection Prevents Current Leakage in
Powered-Down State (VCC and VBUS = 0 V)
– 1.8-V Compatible Control Inputs (SEL, OE)
– Overvoltage Tolerance (OVT) on all I/O Pins
up to 5.5 V Without External Components
– Overvoltage Protection When 9-V Short to
D+/-Pin
• ESD Performance:
– 3.5-kV Human Body Model (A114B, Class II)
– 1-kV Charged-Device Model (C101)
• 10-Pin UQFN Package
(1.5-mm × 2-mm, 0.5-mm Pitch)

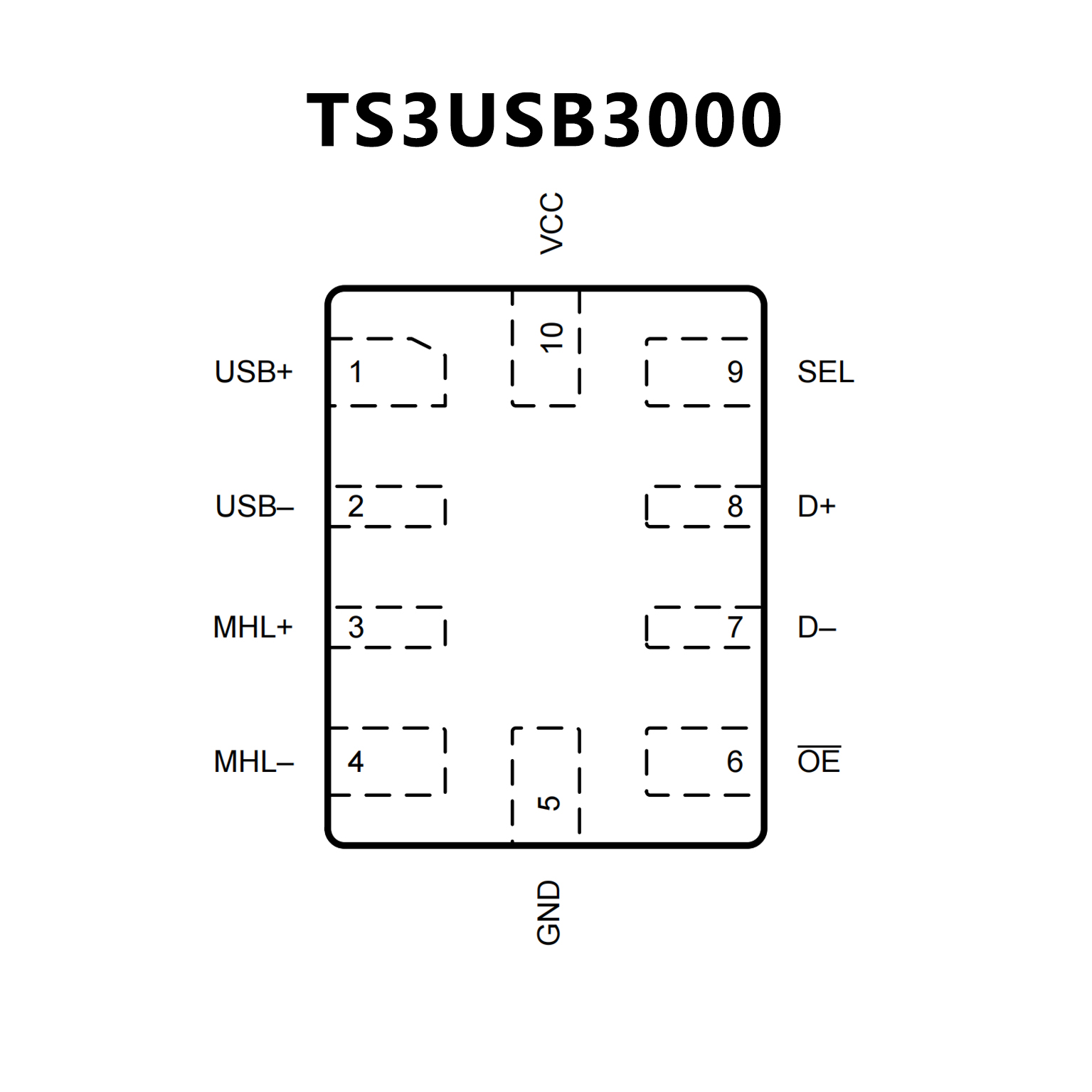

PIN CONFIGUTION
