4-Bit 100 Mb/s Configurable Dual-Supply Level Translator, PI4ULS3V304 Replace NLSX5014.
PI4ULS3V304
PI4ULS3V304.pdf
PI4ULS3V304.pdfFEATURES
• 0.85V to 2.7V on A Port and 1.35V to 3.6V on B Port
• VCCA may be greater than, equal to, or less than VCCB
• High-Speed with 140 Mb/s Guaranteed Date Rate
• 100 pF Capacitive Drive Capability
• Low Bit-to-Bit Skew
• Overvoltage Tolerant Enable and I/O Pins
• Non-preferential Power-Up Sequencing
• Power-Off Protection
• Package: UQFN1.7x2.0-12L

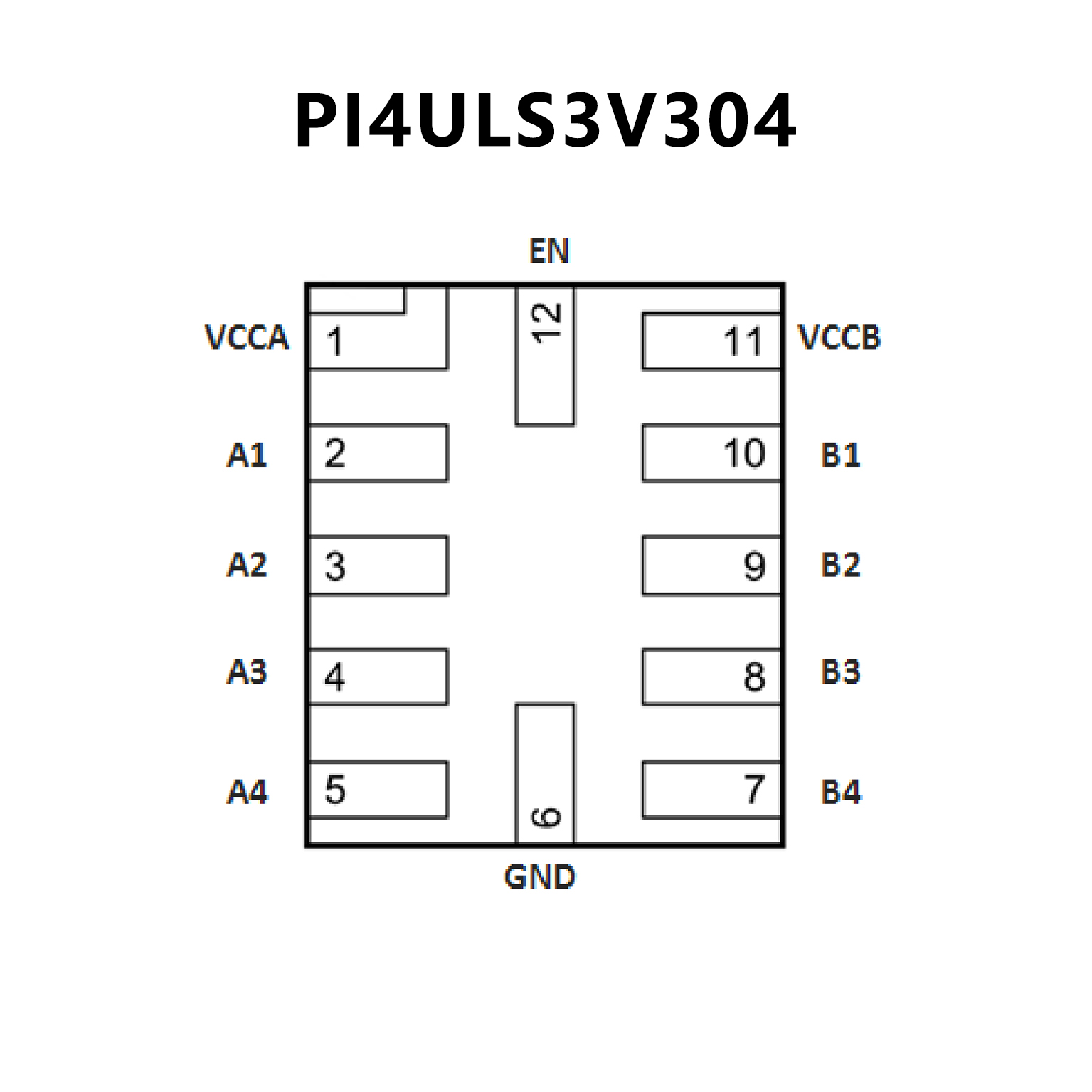

PIN CONFIGUTION
CROSS
FEATURES
• Wide VCC, VL Operating Range: 0.9 V to 4.5 V
• VL and VCC are independent
− VL may be greater than, equal to, or less than VCC
• High 100 pF Capacitive Drive Capability
• High−Speed with 140 Mb/s Guaranteed Date Rate
for VCC, VL > 1.8 V
• Low Bit−to−Bit Skew
• Overvoltage Tolerant Enable and I/O Pins
• Non−preferential Powerup Sequencing
• Power−Off Protection
• Small packaging: 1.7 mm x 2.0 mm UQFN12, SOIC14,
TSSOP14
• These Devices are Pb−Free, Halogen Free/BFR Free and
are RoHS Compliant

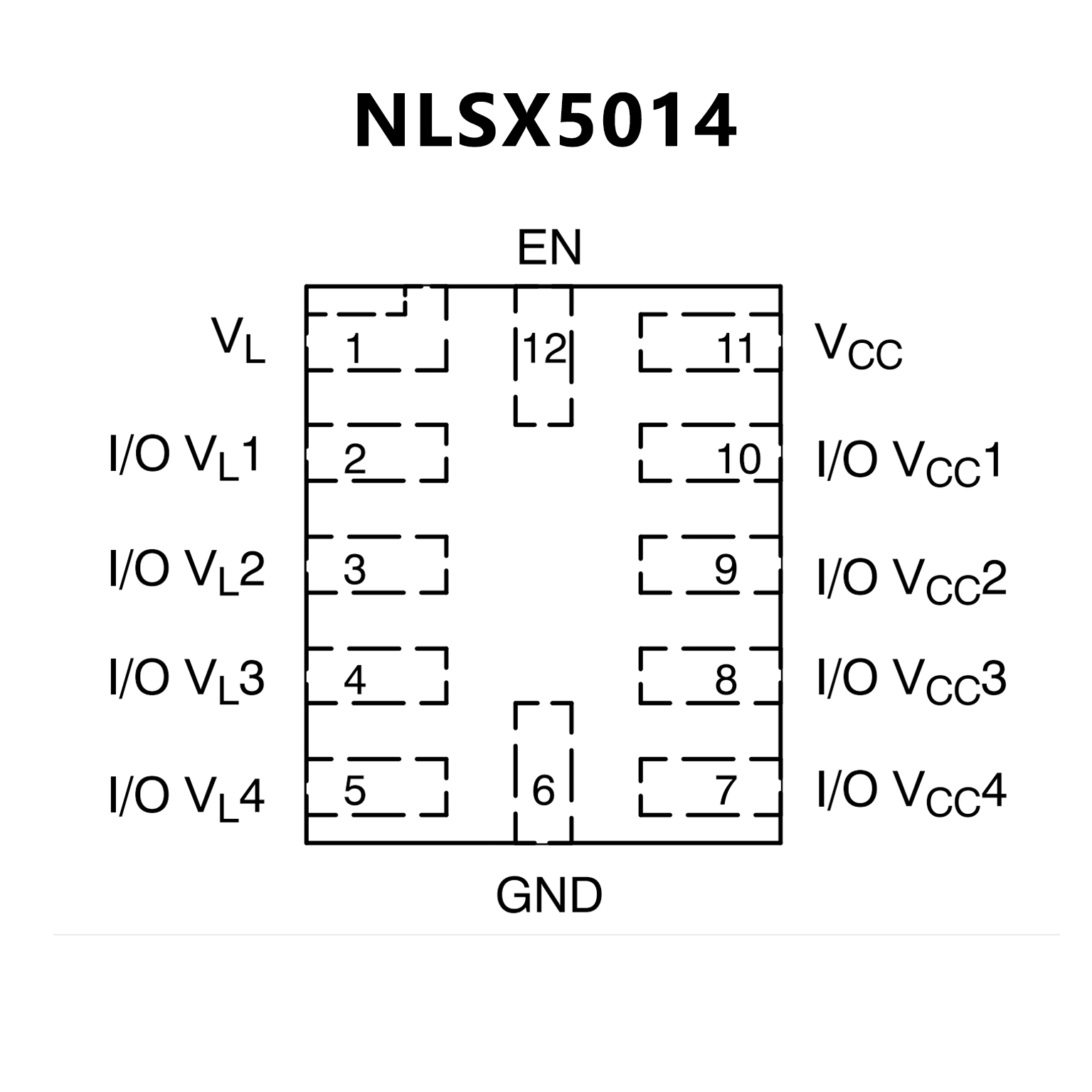

PIN CONFIGUTION
