4-Bit 100 Mb/s Configurable Dual-Supply Level Translator, PI4ULS3V304 Replace NLVSX4014.
PI4ULS3V304 PI4ULS3V304.pdf
FEATURES

 0.85V to 2.7V on A Port and 1.35V to 3.6V on B Port

 VCCA may be greater than, equal to, or less than VCCB

 High-Speed with 140 Mb/s Guaranteed Date Rate

 100 pF Capacitive Drive Capability

 Low Bit-to-Bit Skew

 Overvoltage Tolerant Enable and I/O Pins

 Non-preferential Power-Up Sequencing

 Power-Off Protection

 Package: UQFN1.7x2.0-12L







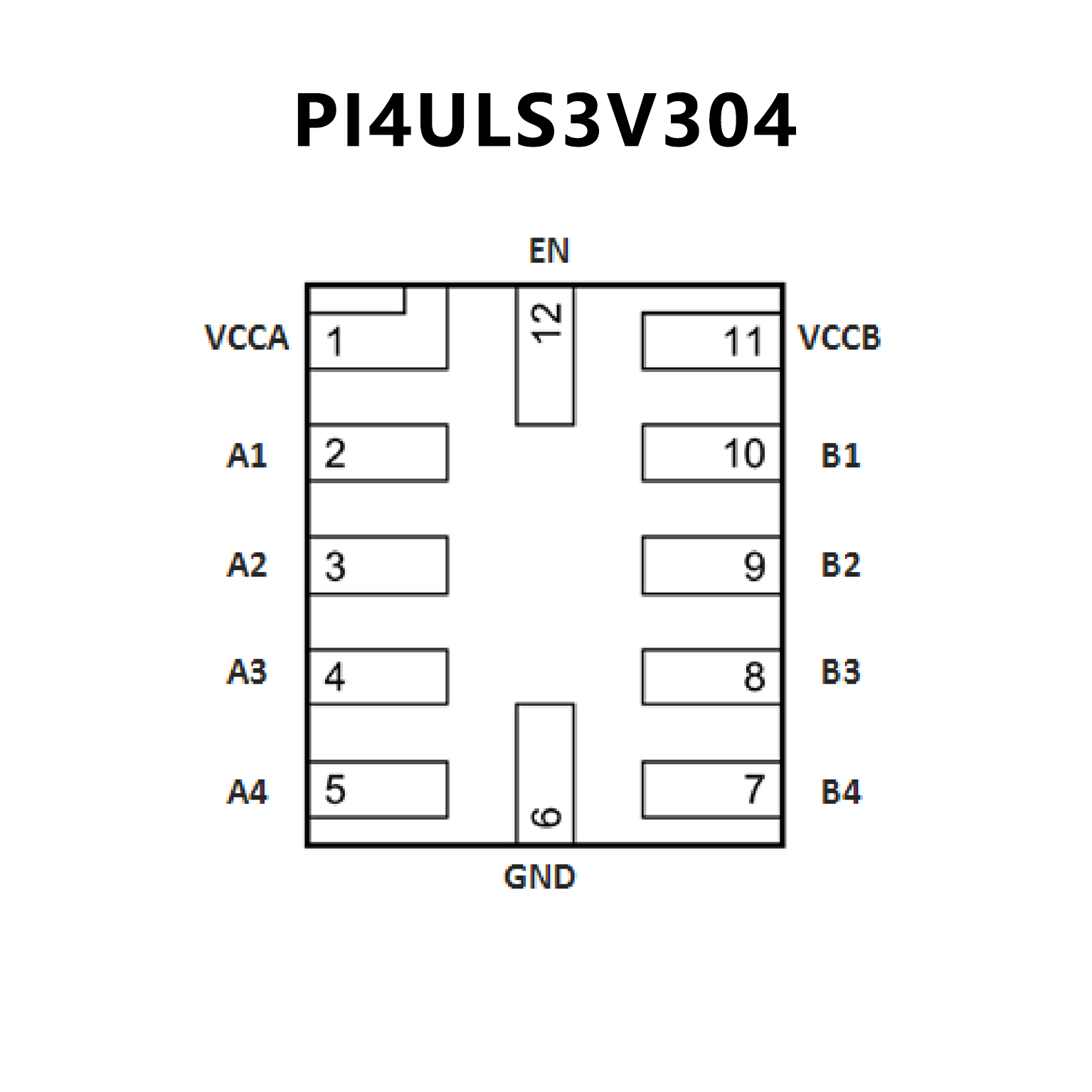

PIN CONFIGUTION
CROSS
NLVSX4014 NLVSX4014.pdf

No.14327

FEATURES

• Wide High−Side VCC Operating Range: 1.3V to 4.5V

  Wide Low−Side VL Operating Range: 0.9V to (VCC−0.4)V
• Power Supply Isolation
  All Outputs are in the High Impedance State if Either
  VL or VCC is at Ground
• High−Speed with 100 Mb/s Guaranteed Date Rate for
  VL > 1.6 V
• Low Bit−to−Bit Skew
• Overvoltage Tolerant Enable and I/O Pins
• Non−preferential Powerup Sequencing
• Small packaging: 1.7 mm x 2.0 mm UQFN12
• NLV Prefix for Automotive and Other Applications Requiring
  Unique Site and Control Change Requirements; AEC−Q100
  Qualified and PPAP Capable
• These are Pb−Free Devices

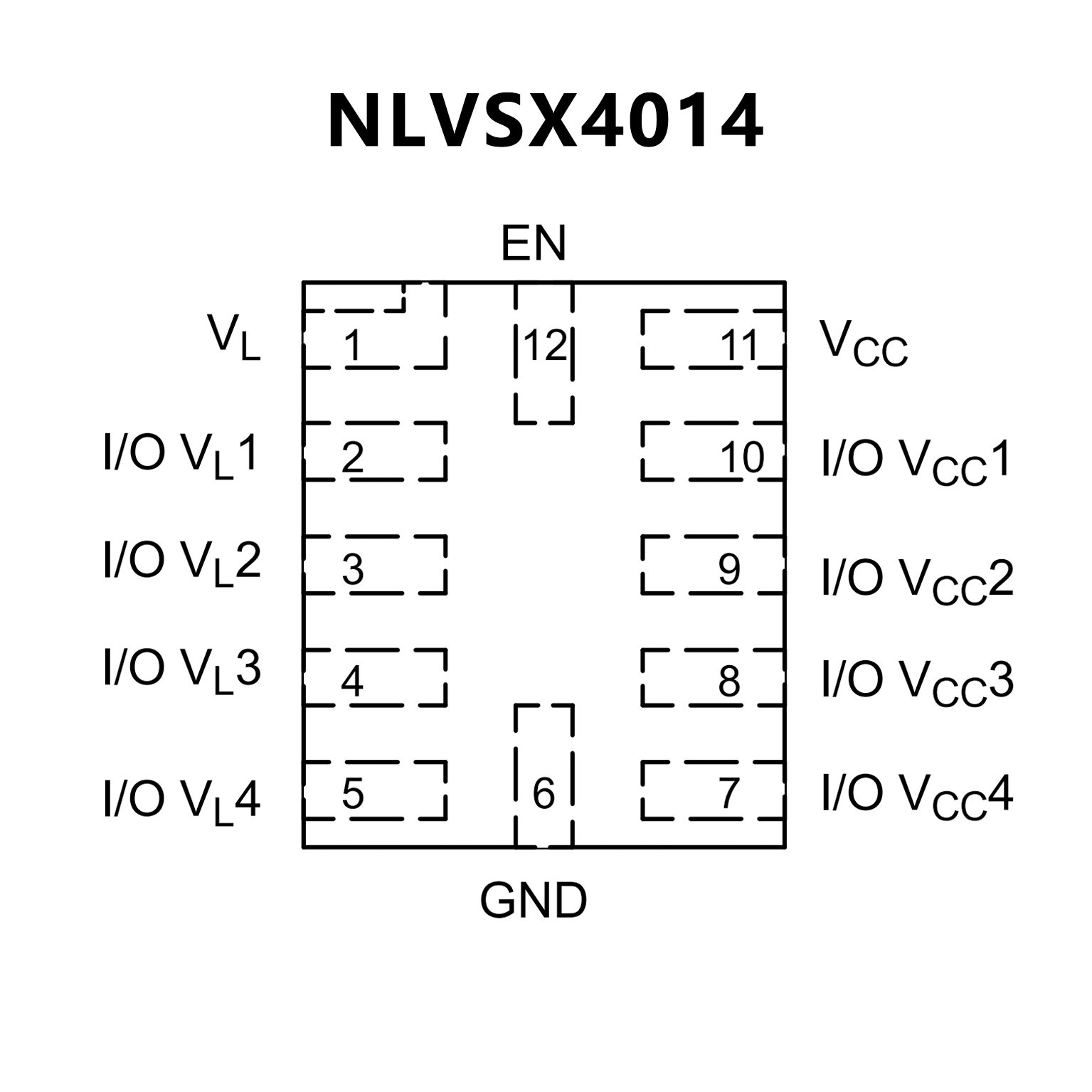

PIN CONFIGUTION
