4-Bit 100 Mb/s Configurable Dual-Supply Level Translator, PI4ULS3V304 Replace NLVSX5004.
PI4ULS3V304 PI4ULS3V304.pdf
FEATURES

 0.85V to 2.7V on A Port and 1.35V to 3.6V on B Port

 VCCA may be greater than, equal to, or less than VCCB

 High-Speed with 140 Mb/s Guaranteed Date Rate

 100 pF Capacitive Drive Capability

 Low Bit-to-Bit Skew

 Overvoltage Tolerant Enable and I/O Pins

 Non-preferential Power-Up Sequencing

 Power-Off Protection

 Package: UQFN1.7x2.0-12L

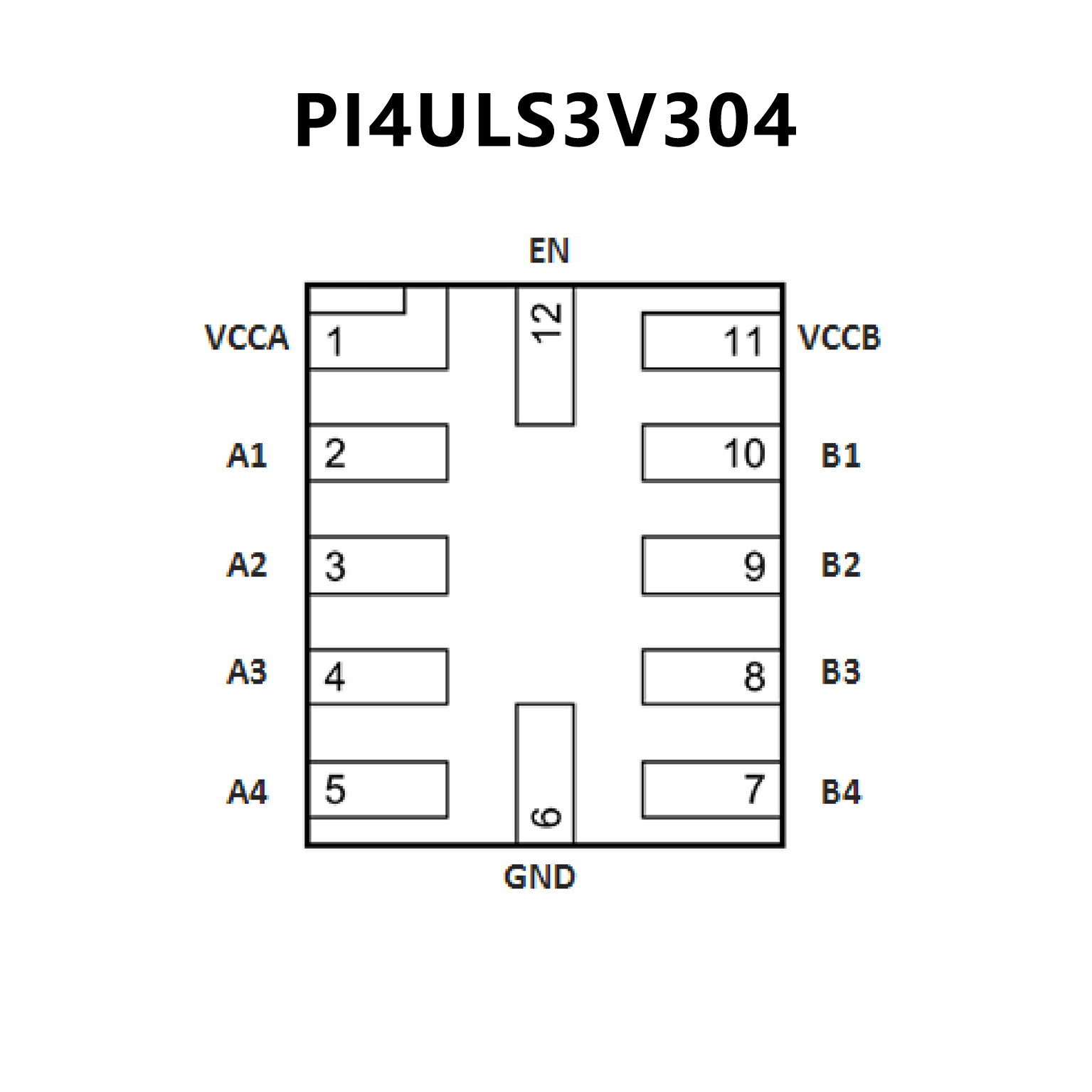

PIN CONFIGUTION
CROSS
NLVSX5004 NLVSX5004.pdf

No.14329

FEATURES

 Wide VCCA, VCCB Operating Range: 0.9 V to 3.6 V

 VCCA and VCCB are independent
  − VCCA may be greater than, equal to, or less than VCCB
 High 100 pF Capacitive Drive Capability
 High−Speed w/ 140 Mbps Guaranteed Date Rate for VCCA,
  VCCB > 1.8 V
 Low Bit−to−Bit skew
 Overvoltage Tolerant Enable and I/O Pins
 Non−preferential Power−Up Sequencing
 Partial Power−Off Protection
 Available packaging:
  UQFN−12, SOIC14, TSSOP14, QFN−14, Other packages
 NLV Prefix for Automotive and Other Applications Requiring
  Unique Site and Control Change Requirements; AEC−Q100
  Qualified and PPAP Capable

 These Devices are Pb−Free, Halogen Free/BFR Free and

  RoHS Compliant

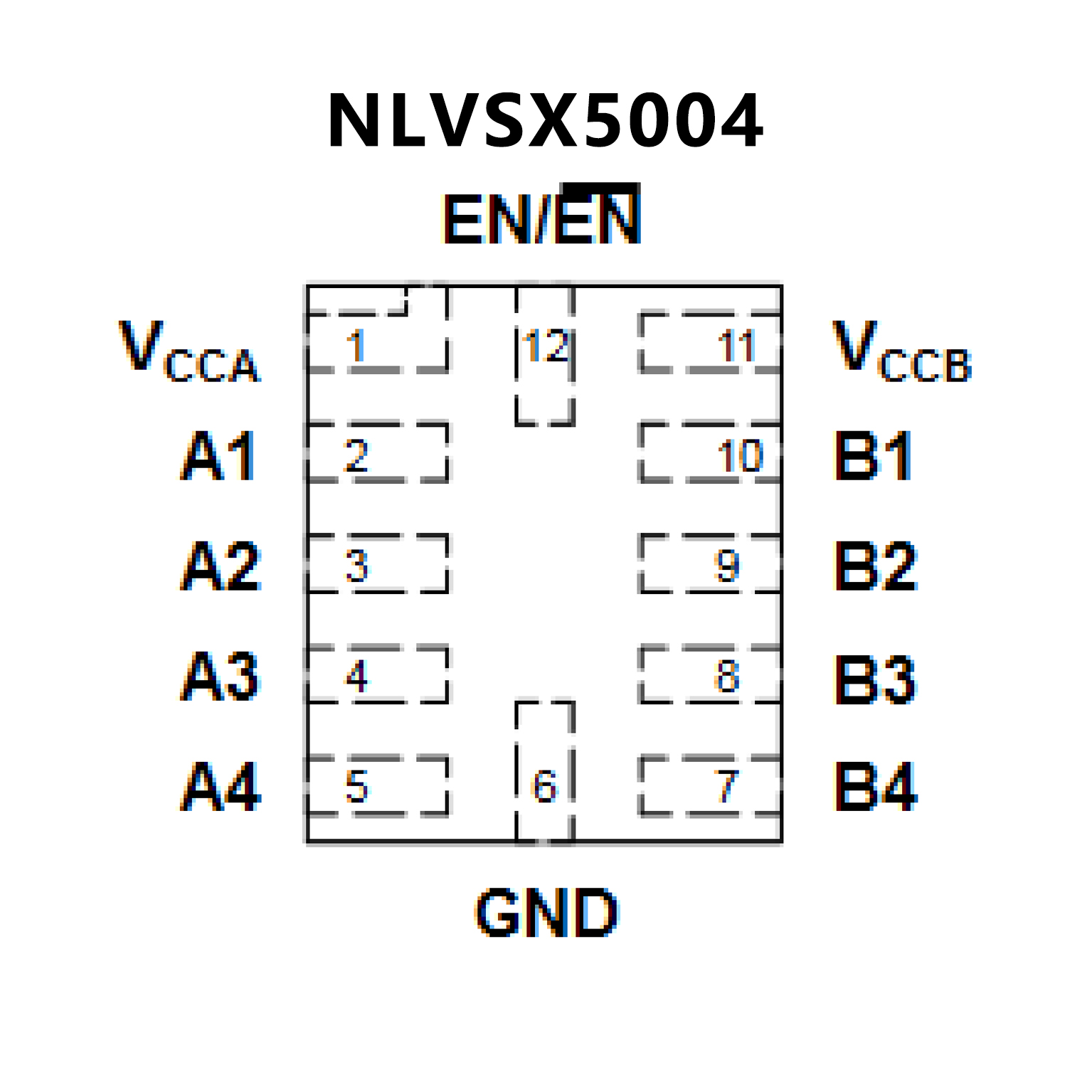

PIN CONFIGUTION
