Low Voltage Dual SPDT Analog Switch, PI5A23157 Replace TS5A23157.
FEATURES

• CMOS Technology for Bus and Analog Applications

• Low propagation delay

• Low typical On-Resistance

• Signal passing bandwidth,220 MHz

• Wide Vpp Range: 1.65V to 5.5V

• Rail-to-Rail Signal Range

• High Off Isolation: -65dB @ 10MHz

• Crosstalk Rejection Reduces Signal Distortion:

  -66dB @ 10MHz

• Break-Before-Make Switching

• Extended Industrial Temperature Range:

 -40°Cto 125°C

• ESD protection :2kV(HBM)

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free “Green” Device (Note 3)

• For automotive applications requiring specific change

  control

• Packaging (Pb-free & Green):

  10-pin UQFN (ZUA),2mm x 1.5mm

  10-pin MSOP (U), 3mm x 3mm

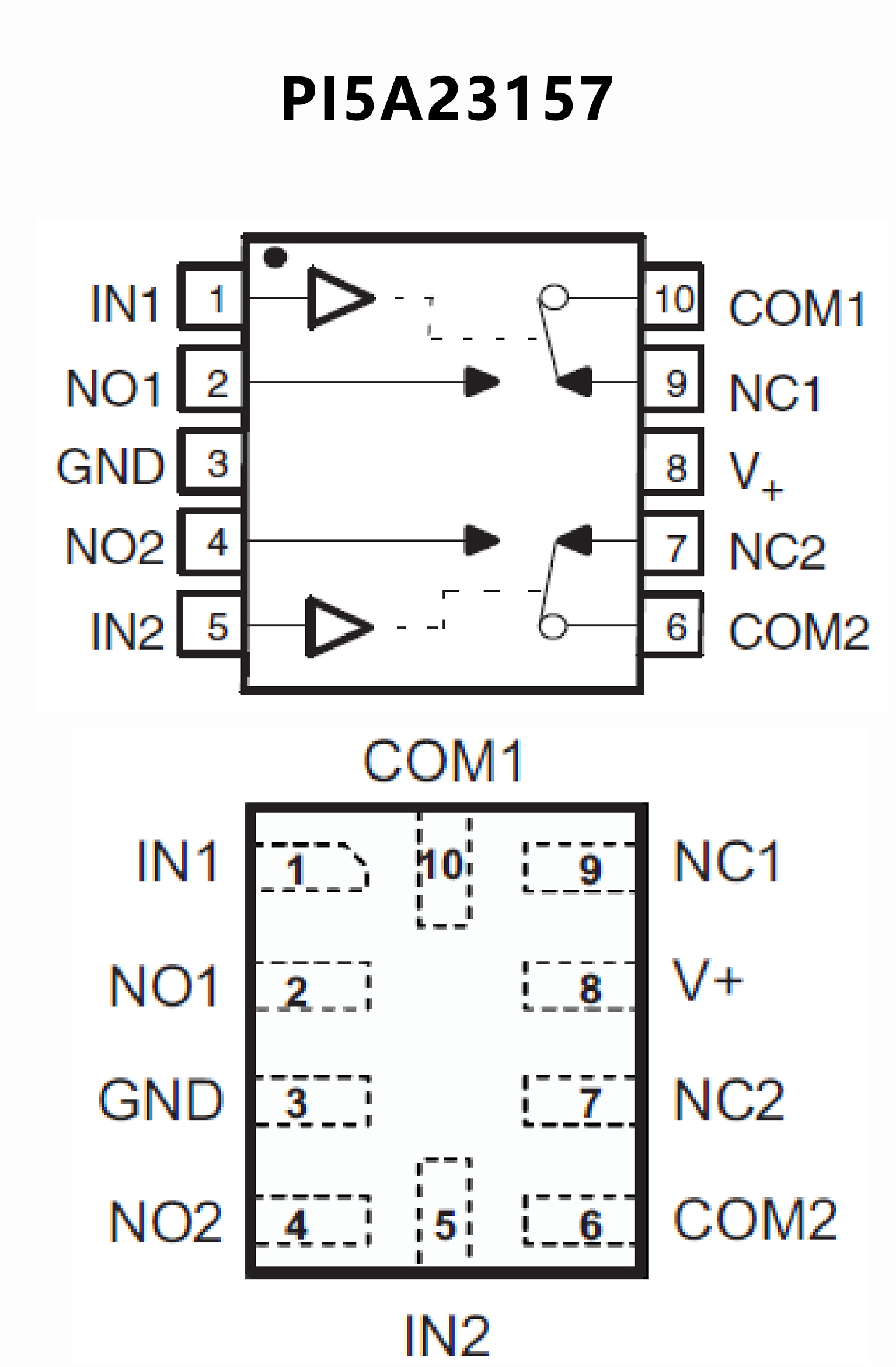

PIN CONFIGUTION
CROSS
TS5A23157 TS5A23157.pdf

No.14287

FEATURES

• Low ON-State Resistance (15 Ω at 125℃)

• 125℃ Operation
• Control Inputs are 5-V Tolerant
• Specified Break-Before-Make Switching
• Low Charge Injection
• Excellent ON-Resistance Matching
• Low Total Harmonic Distortion
• 1.8-V to 5.5-V Single-Supply Operation
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
• ESD Performance Tested Per JESD 22
– 2000-V Human-Body Model
(A114-B, Class II)

– 1000-V Charged-Device Model (C101)

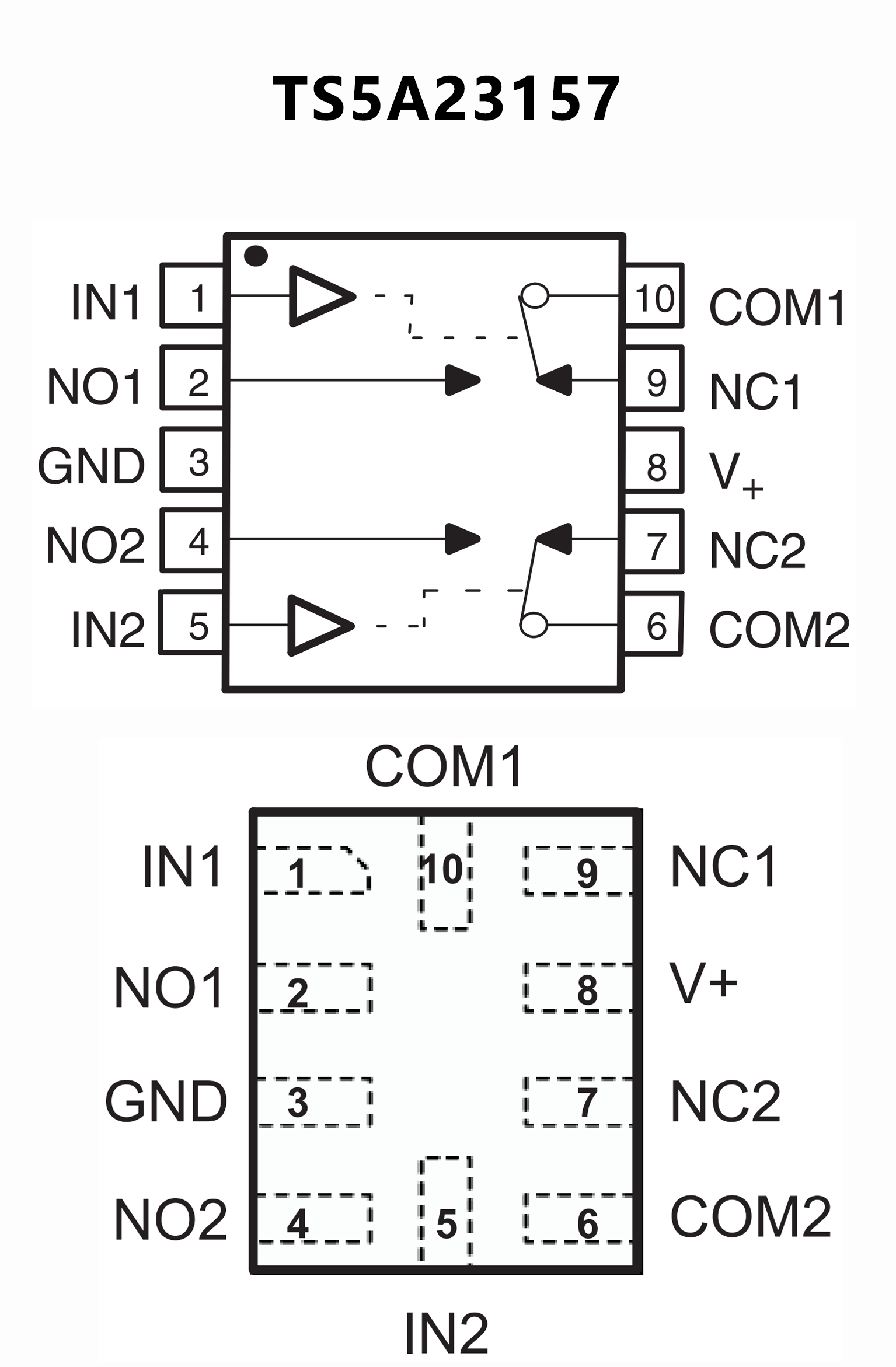

PIN CONFIGUTION
