Low Voltage SPDT Analog Switch 2:1 Mux/Demux Bus Switch, PI5A3157BCEX P2P TS5A3157.

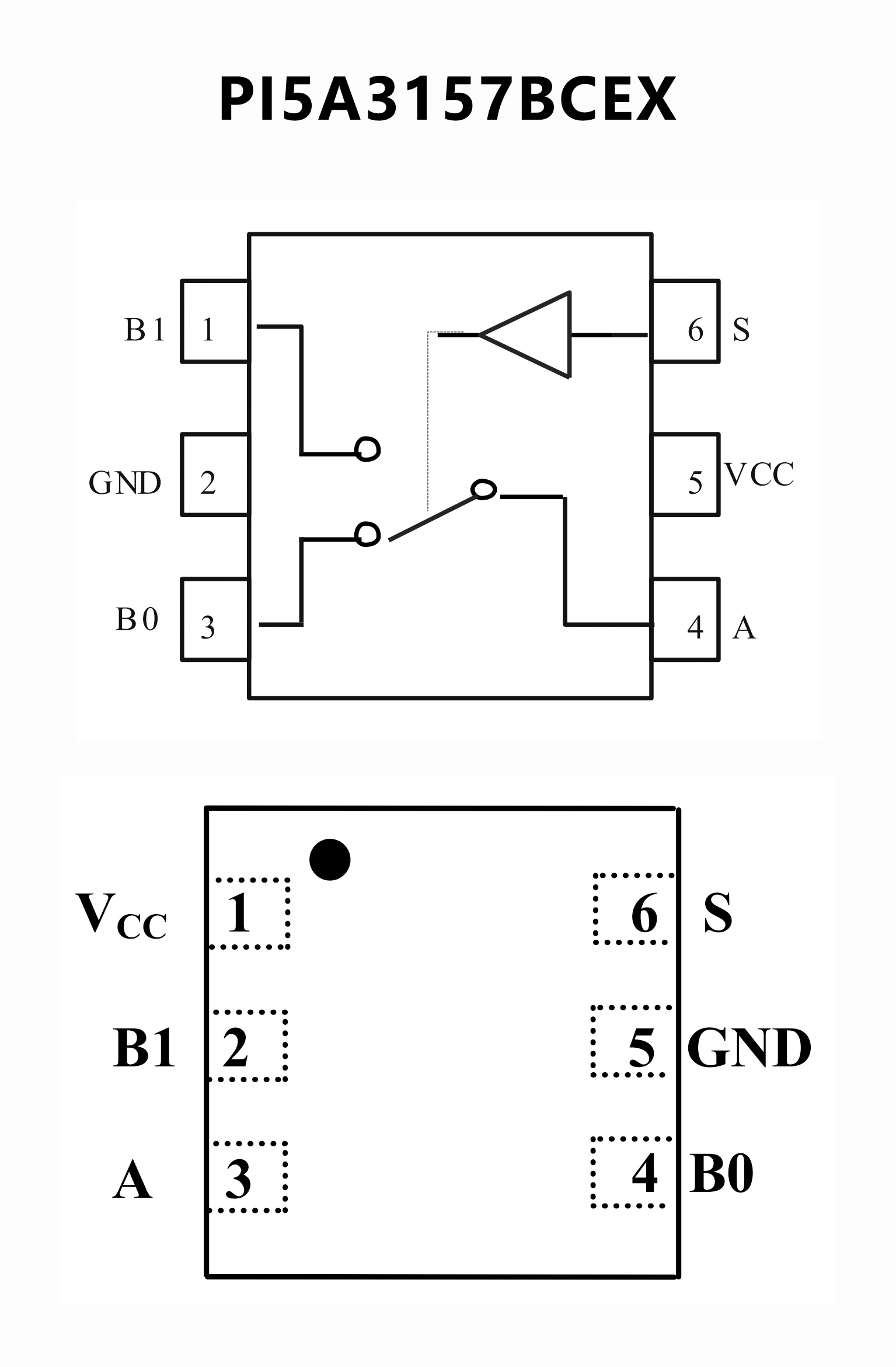

PI5A3157BCEX PI5A3157BCEX.pdf
FEATURES

• CMOS Technology for Bus and Analog Applications

• Low On-Resistance: 802 at 3.0V

• Wide VCC Range: 1.65V to 5.5V

• Rail-to-Rail Signal Range

• Control Input Overvoltage Tolerance: 5.5V

• Fast Transition Speed: 2ns at 5.0V

High Off Isolation: -63dB @ 10MHz

Break-Before-Make Switching

High Bandwidth: 350MHz

Extended Industrial Temperature Range:

  -40°C to 85°C

• PI5A3157B Is Improved Direct Replacement for

  NC7SB3157

• Packaging (Pb-free & Green):

  -6-pin UDFN lmmxlmm

  -6-pin SC70

PIN CONFIGUTION
CROSS

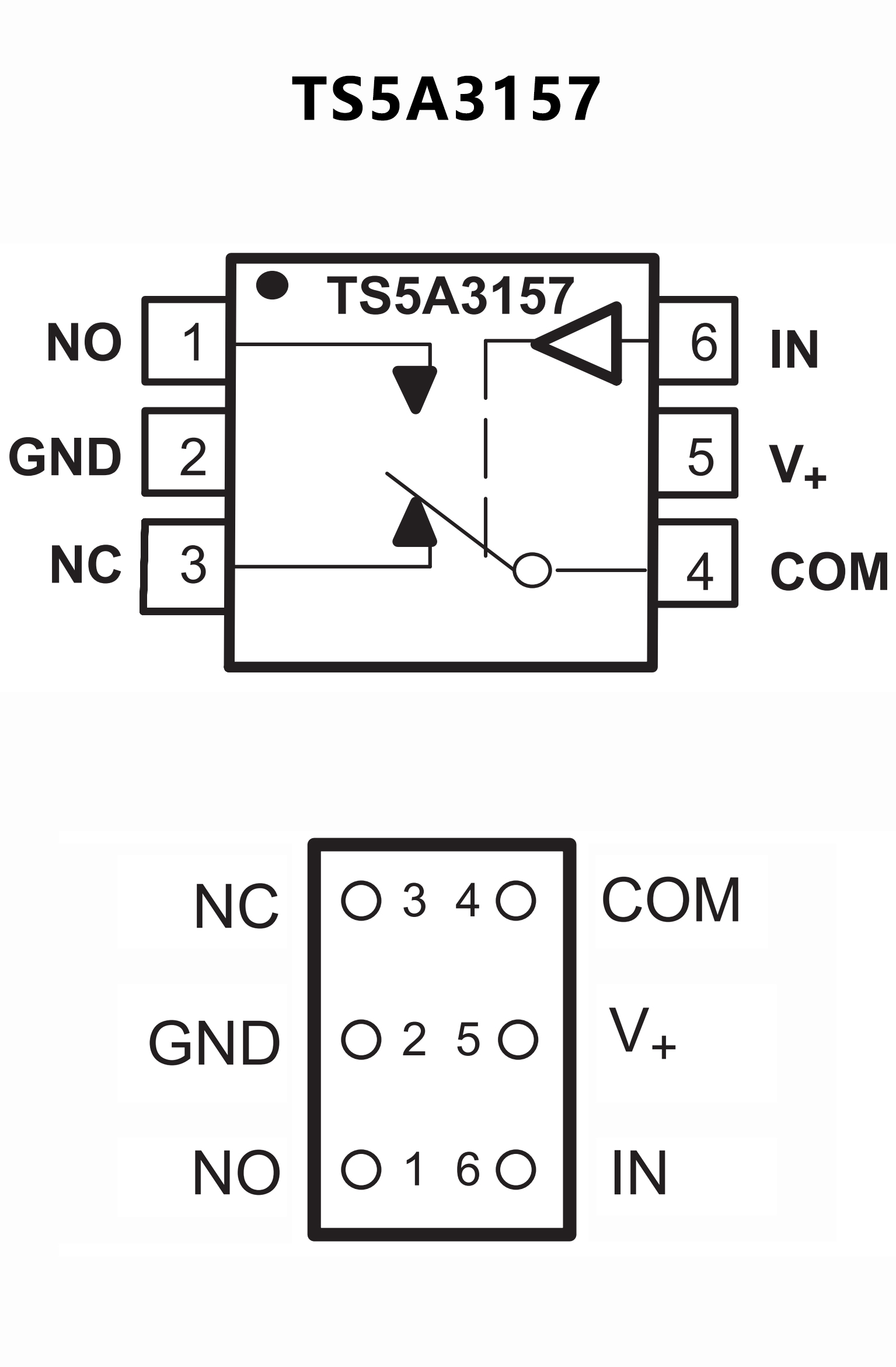

TS5A3157 TS5A3157.pdf

No.14302

FEATURES

• Low ON-State Resistance (10 Ω)

• Control Inputs Are 5-V Tolerant

• Low Charge Injection

• Excellent ON-State Resistance Matching

• Low Total Harmonic Distortion (THD)

• 1.65-V to 5.5-V Single-Supply Operation

• Latch-Up Performance Exceeds 100 mA

  Per JESD 78, Class II

• ESD Performance Tested Per JESD 22

  2000-V Human-Body Model

  (A114-B, Class II)

  1000-V Charged-Device Model (C101)





PIN CONFIGUTION
