Low Voltage SPST 0.8Ω Analog Switch, PI5A3167 Replace TS5A3167.
PI5A3167
PI5A3167.pdf
PI5A3167.pdfFEATURES
• CMOS Technology for Bus and Analog Applications
• Low On-Resistance: 0.8Ω at 3.0V
• Wide VCC Range: 1.65V to 5.5V
• Rail-to-Rail Signal Range
• Control Input Overvoltage Tolerance: 5.5V
• Fast Transition Speed: 2ns at 5.0V
• High Bandwidth: 200 MHz
• I/O pins Have Power-off Protection Functions
• Extended Industrial Temperature Range:
-40°C to 85°C
• Packaging (Pb-free & Green):
-5-pin SOT23
-5-pin SC70

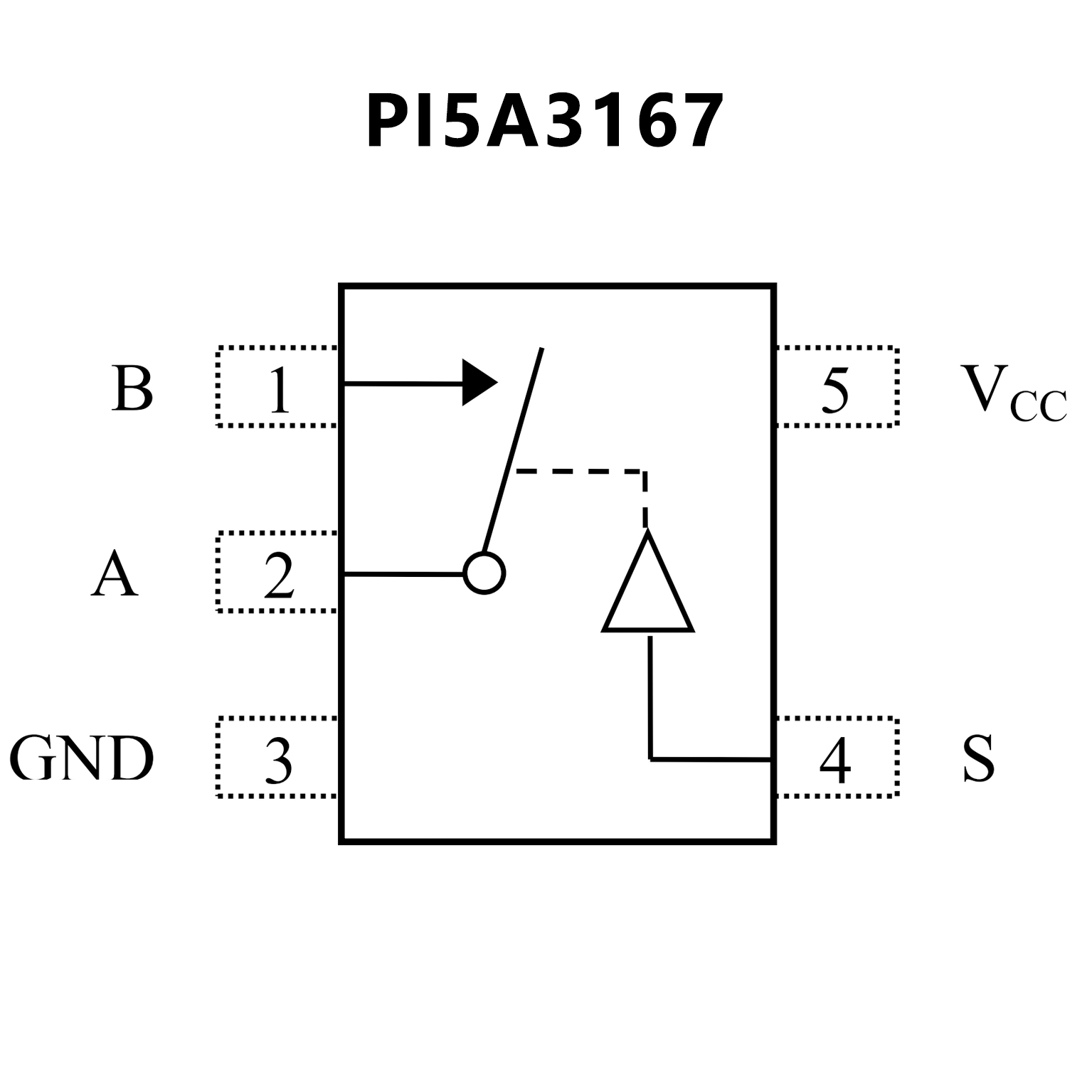

PIN CONFIGUTION
CROSS
FEATURES
• Isolation in Powered-Off Mode, VCC = 0
• Low ON-State Resistance (0.9 Ω)
• Control Inputs Are 5.5-V Tolerant
• Low Charge Injection
• Low Total Harmonic Distortion (THD)
• 1.65-V to 5.5-V Single-Supply Operation
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
• ESD Performance Tested Per JESD 22
– 2000-V Human-Body Model (A114-B, Class II)
– 1000-V Charged-Device Model (C101)

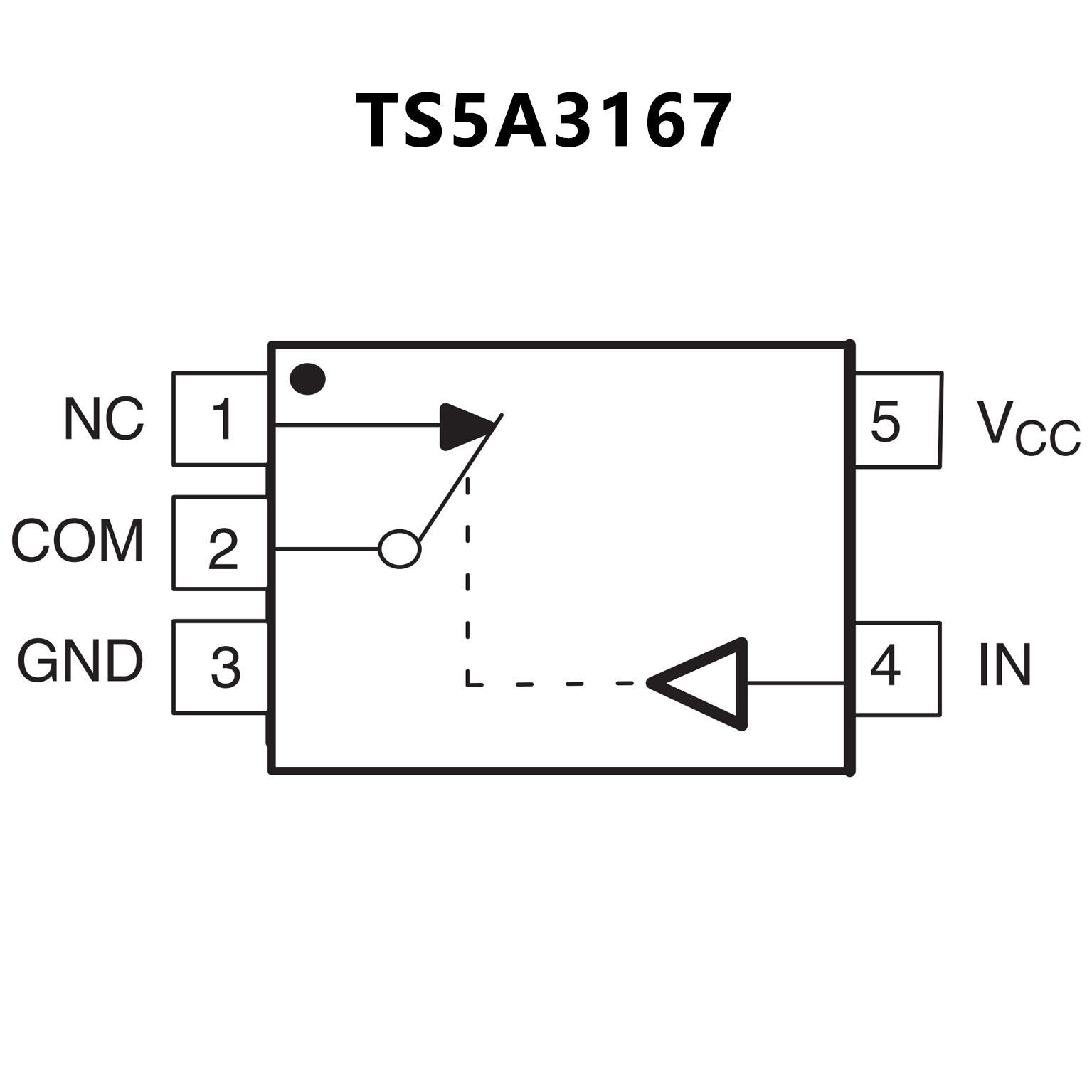

PIN CONFIGUTION
