Negative Voltage SPDT Switch, PS4157N Replace TMUX4157N.
FEATURES
 Operating Voltage Range: VEE = −12 V to −4 V
 Switch Signal Voltage Range: VIS = VEE to GND
 Positive Control Signal Voltage: VIN = 0 to 3.3 V
 Low ON Resistance: RON ≤ 5 Ω when VEE =−10 V
• Extended Industrial Temperature Range: -55°C to 125°C
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 For automotive applications requiring specific change control
 Packaging (Pb-free and Green):
  6-pin Small Compact SC70

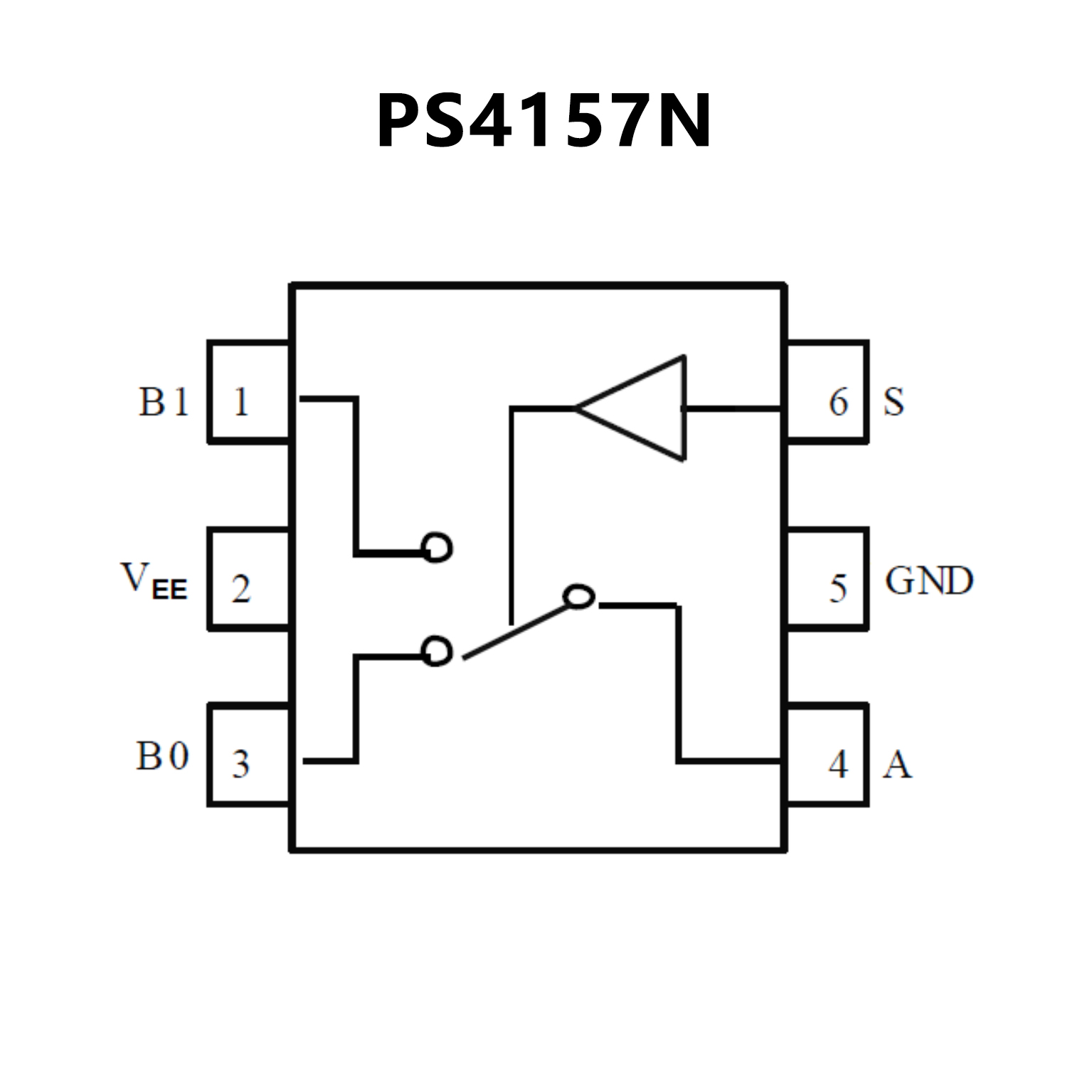

PIN CONFIGUTION
CROSS
TMUX4157N TMUX4157N.pdf

No.14321

FEATURES
• Negative Voltage Support: -4 V to -12 V
• Rail-to-Rail Operation
• Bidirectional Signal Path
• 1.8 V Logic Compatible
• Fail-Safe Logic
• High Continuous Current Support: 150 mA
• Low On-Resistance: 1.8 Ω
• -55°C to +125°C Operating Temperature
• Break-Before-Make Switching
• ESD Protection HBM: 2000 V

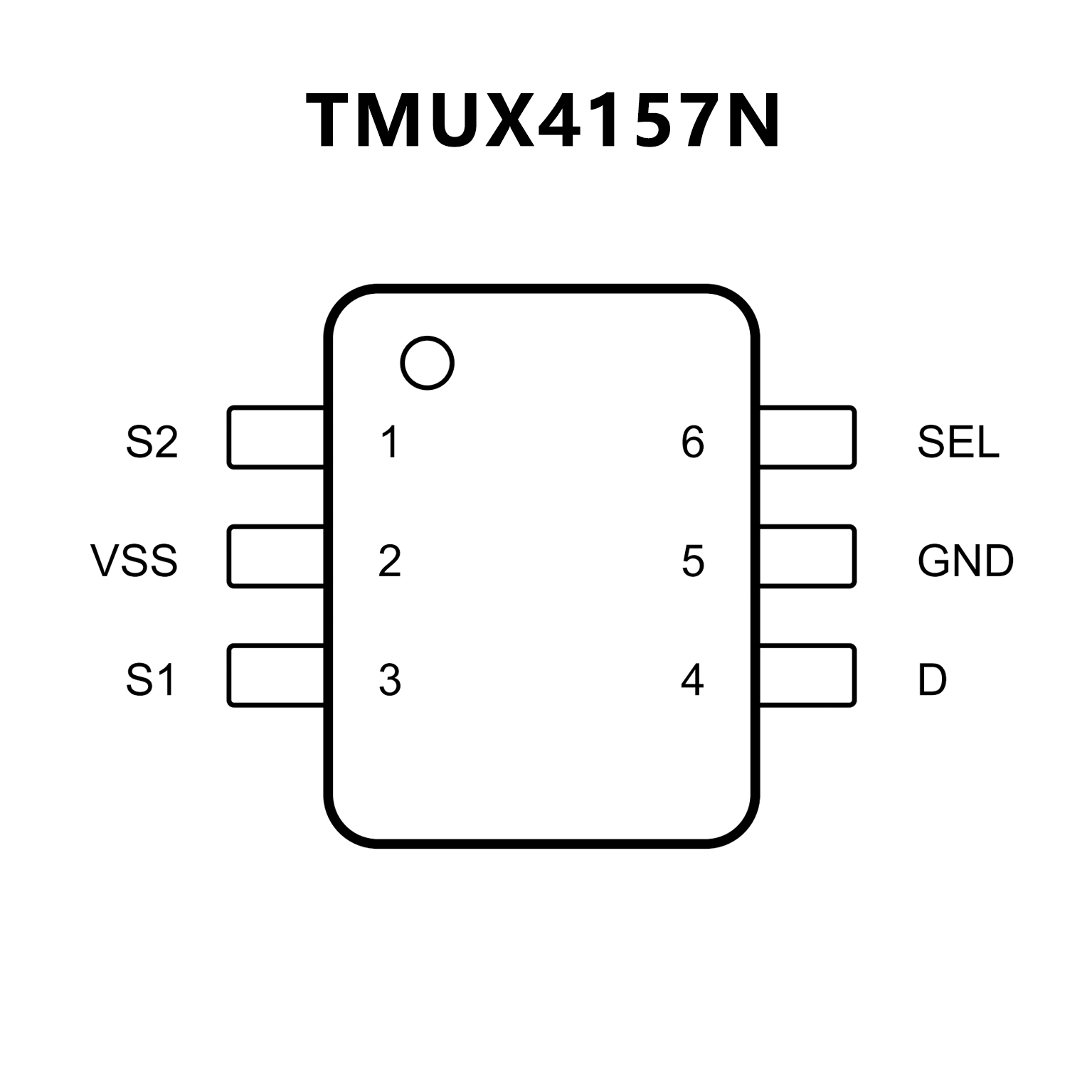

PIN CONFIGUTION
