Precision 8-Channels, Differential 4-Channels, 36V Analog Multiplexers, PS509 Replace MUX509.
FEATURES

• Low On-Capacitance

  PS508: 30pF
  PS509: 20pF
 Low Input Leakage: 30pA
 Low Charge Injection: 0.9pC
 Rail-to-Rail Operation
 Wide Supply Range: ±5V to ±18V, 10V to 36V
 Low On-Resistance: 125Ω
 Transition Time: 171ns
 Break-Before-Make Switching Action
 EN Pin Connectable to VDD
 Logic Levels: 2V to VDD
 Low Supply Current: 135µA
 ESD Protection HBM: 2000V
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 For automotive applications requiring specific change control
 Packaging (Pb-free & Green):
  16-pin TSSOP (L)
  16-pin QSOP (Q)
  16-pin SOIC (W)

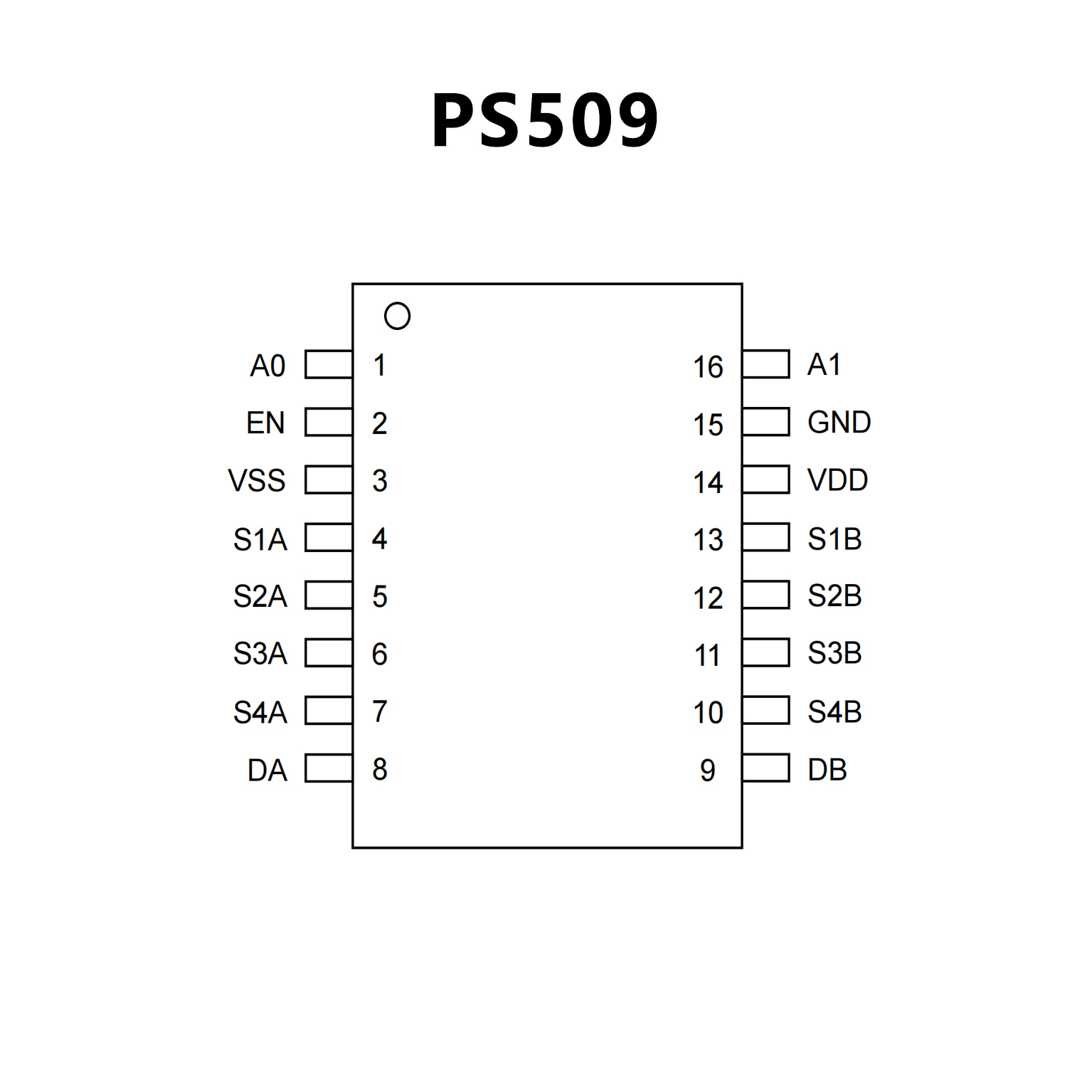

PIN CONFIGUTION
CROSS
MUX509 MUX509.pdf

No.14311

FEATURES

• Low On-Capacitance

  – MUX508: 9.4 pF
  – MUX509: 6.7 pF
• Low Input Leakage: 10 pA
• Low Charge Injection: 0.3 pC
• Rail-to-Rail Operation
• Wide Supply Range: ±5 V to ±18 V, 10 V to 36 V
• Low On-Resistance: 125 Ω
• Transition Time: 92 ns
• Break-Before-Make Switching Action
• EN Pin Connectable to VDD
• Logic Levels: 2 V to VDD
• Low Supply Current: 45 µA
• ESD Protection HBM: 2000 V

• Industry-Standard TSSOP and SOIC Packages

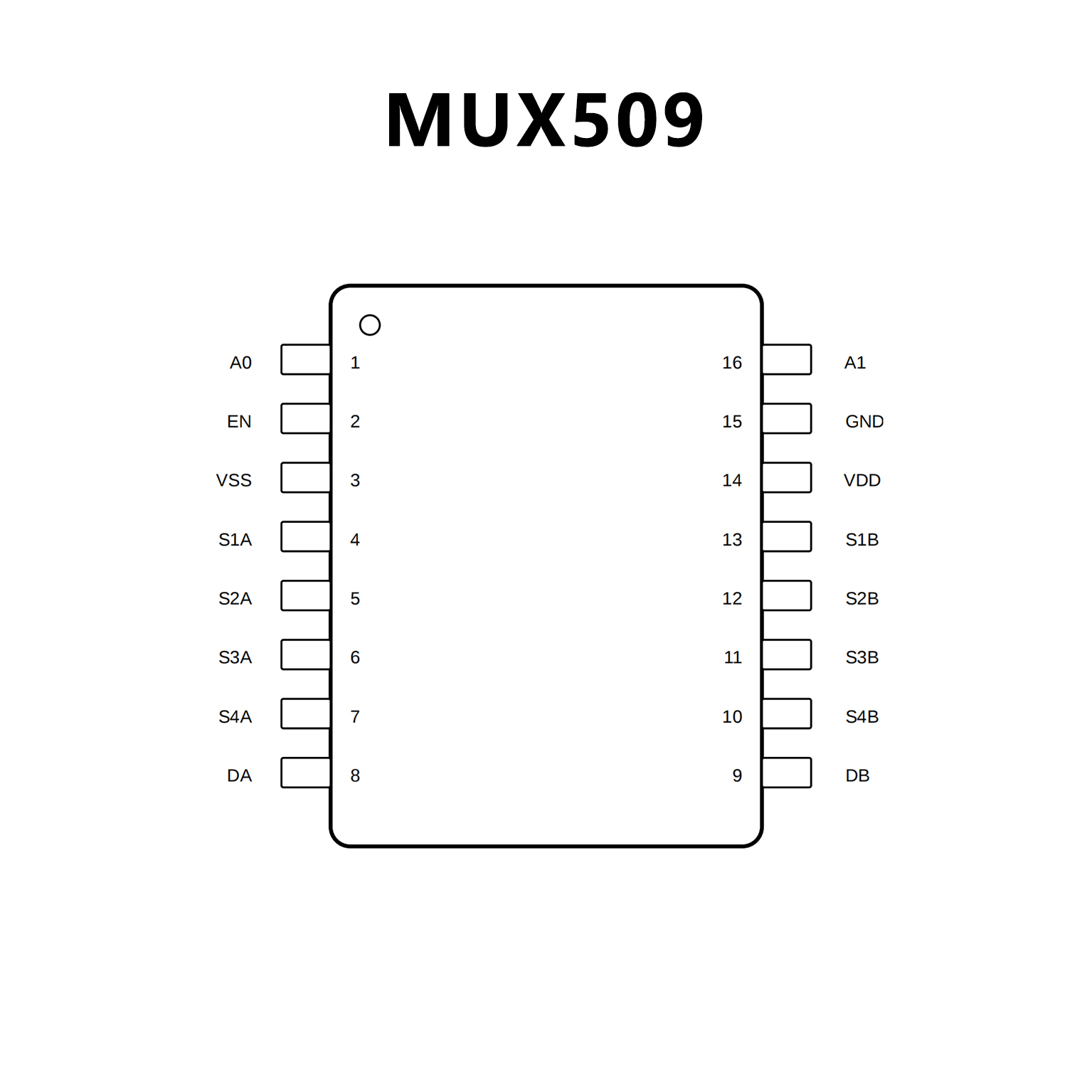

PIN CONFIGUTION
