Low Voltage Bidirectional SPDT Analog Switch, PSMUX1247 Replace TMUX1247.
FEATURES

• Wide Vpp Range: 1.08V to 5.5V

• Low Supply Current: 4nA

• Low On-Resistance 302

• 1.8 V Logic Compatible

• Voltages on the control pins to be applied before the

  supply pin

• Signal Passing Bandwidth, 500MHz

• Transition Time: 14 ns

• Break-before-make switching

• Rail-to-Rail Signal Range

• High Off Isolation: -65dB @ 1MHz

• Crosstalk Rejection Reduces Signal Distortion:-65dB@1MHz

• Extended Industrial Temperature Range: -40°C to 125°C

  ESD Protection : 2kV(HBM)

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• For automotive applications requiring specific change control

•  Packaging (Pb-free & Green): 6-pin SC-70 (C)

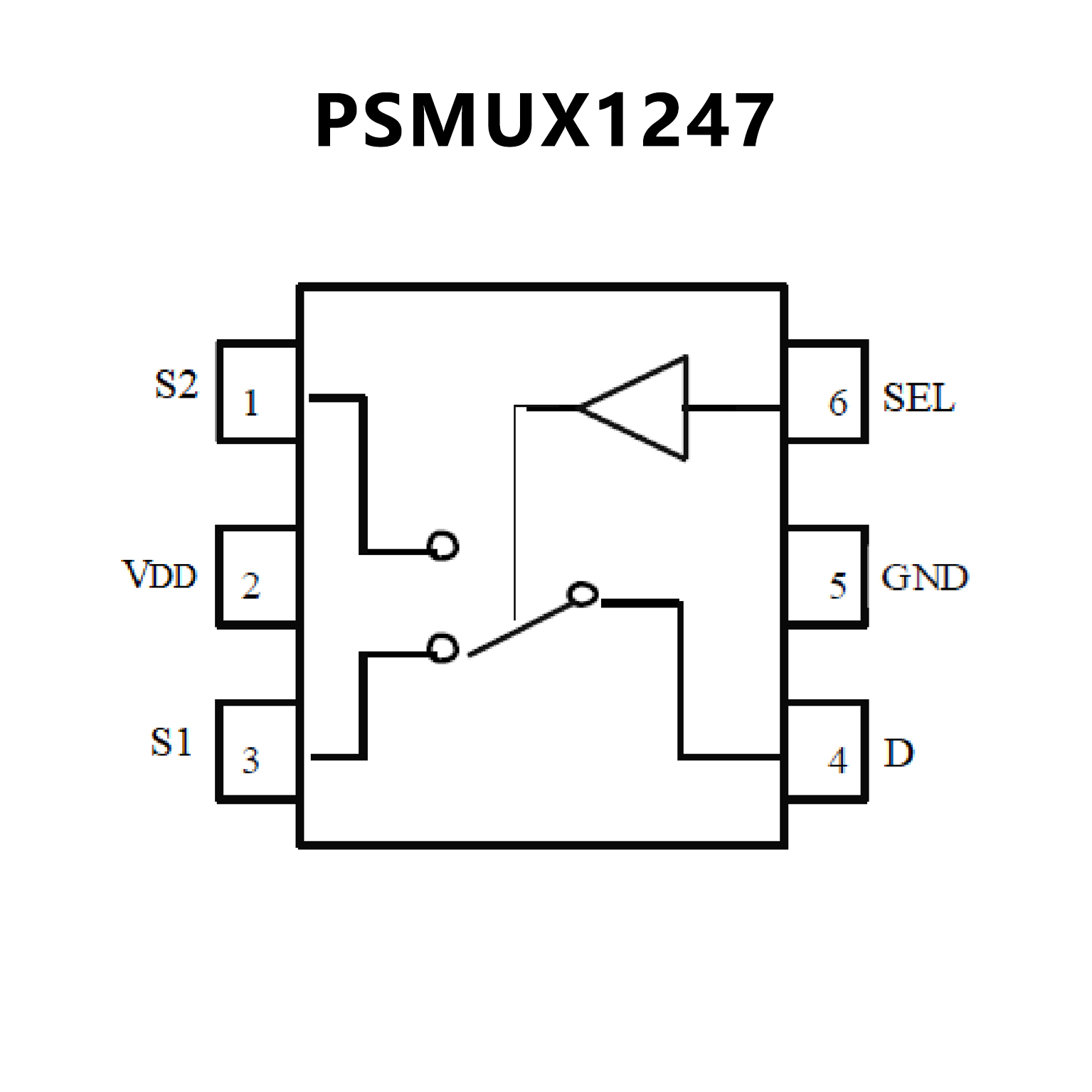

PIN CONFIGUTION
CROSS
TMUX1247 TMUX1247.pdf

No.14303

FEATURES

• Rail to rail operation

• Bidirectional signal path
• 1.8 V Logic compatible
• Fail-safe logic
• Low on-resistance: 3 Ω
• Wide supply range: 1.08 V to 5.5 V
• -40°C to +125°C Operating temperature
• Low supply current: 4 nA
• Transition time: 14 ns
• Break-before-make switching
• ESD protection HBM: 2000 V

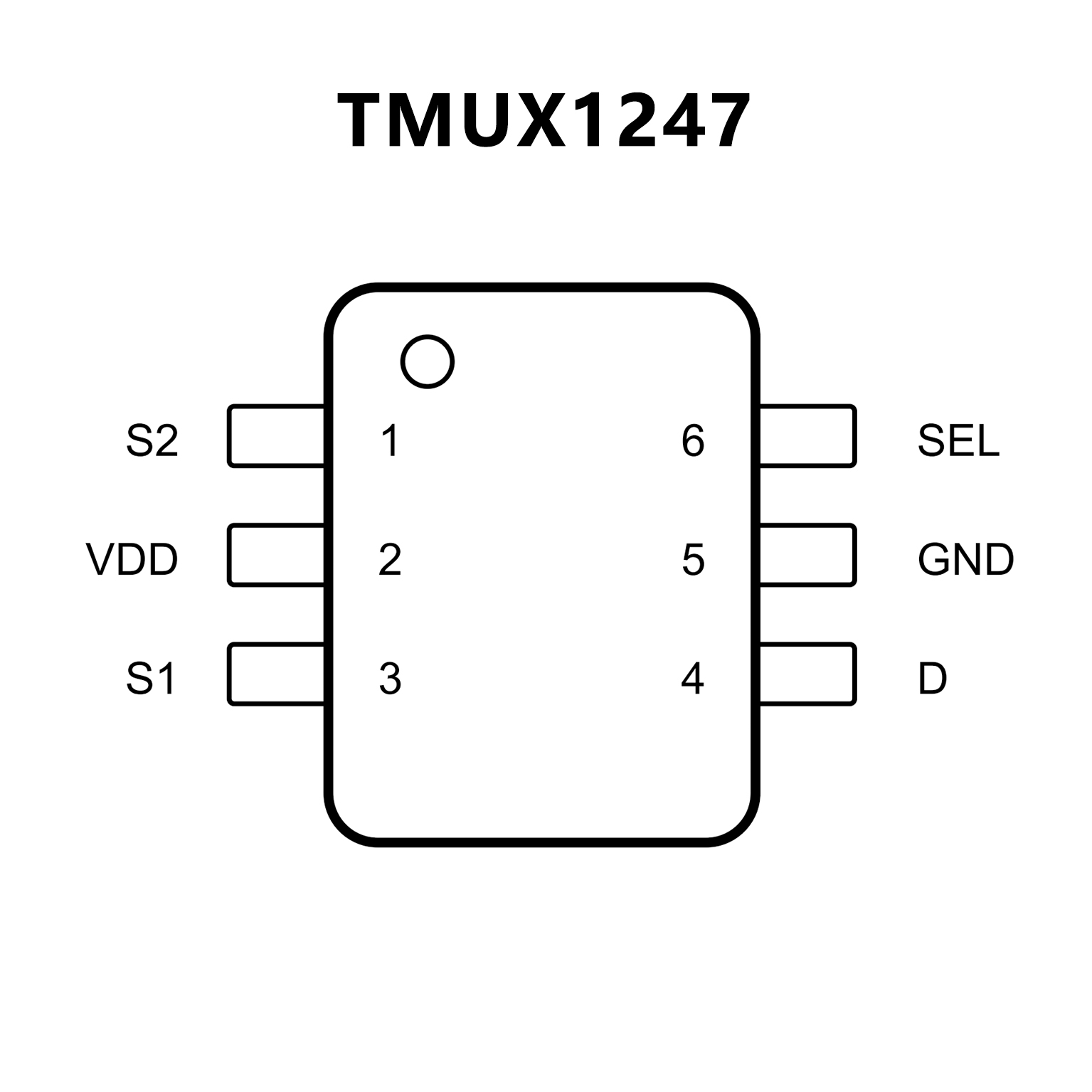

PIN CONFIGUTION
