Low Voltage Bidirectional SPDT Analog Switch, PSMUX1248 Replace TMUX1248.
PSMUX1248
PSMUX1248.pdf
FEATURES
• Wide Vpp Range: 1.08V to 5.5V
• Low Supply Current: 4nA
• Low On-Resistance 302
• 1.8 V Logic Compatible
• Voltages on the control pins to be applied before the
supply pin
• Signal Passing Bandwidth, 50OMHz
• Transition Time: 14ns
• Break-before-make Switching
• Rail-to-Rail Signal Range
• High Off Isolation: -65dB @ 1MHz
• Crosstalk Rejection Reduces Signal Distortion: -65dB@
1MHz
• Extended Industrial Temperature Range: -40°C to 125C
• ESD Protection : 2kV(HBM)
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control
• Packaging (Pb-free & Green): 6-pin SC-70 (C)

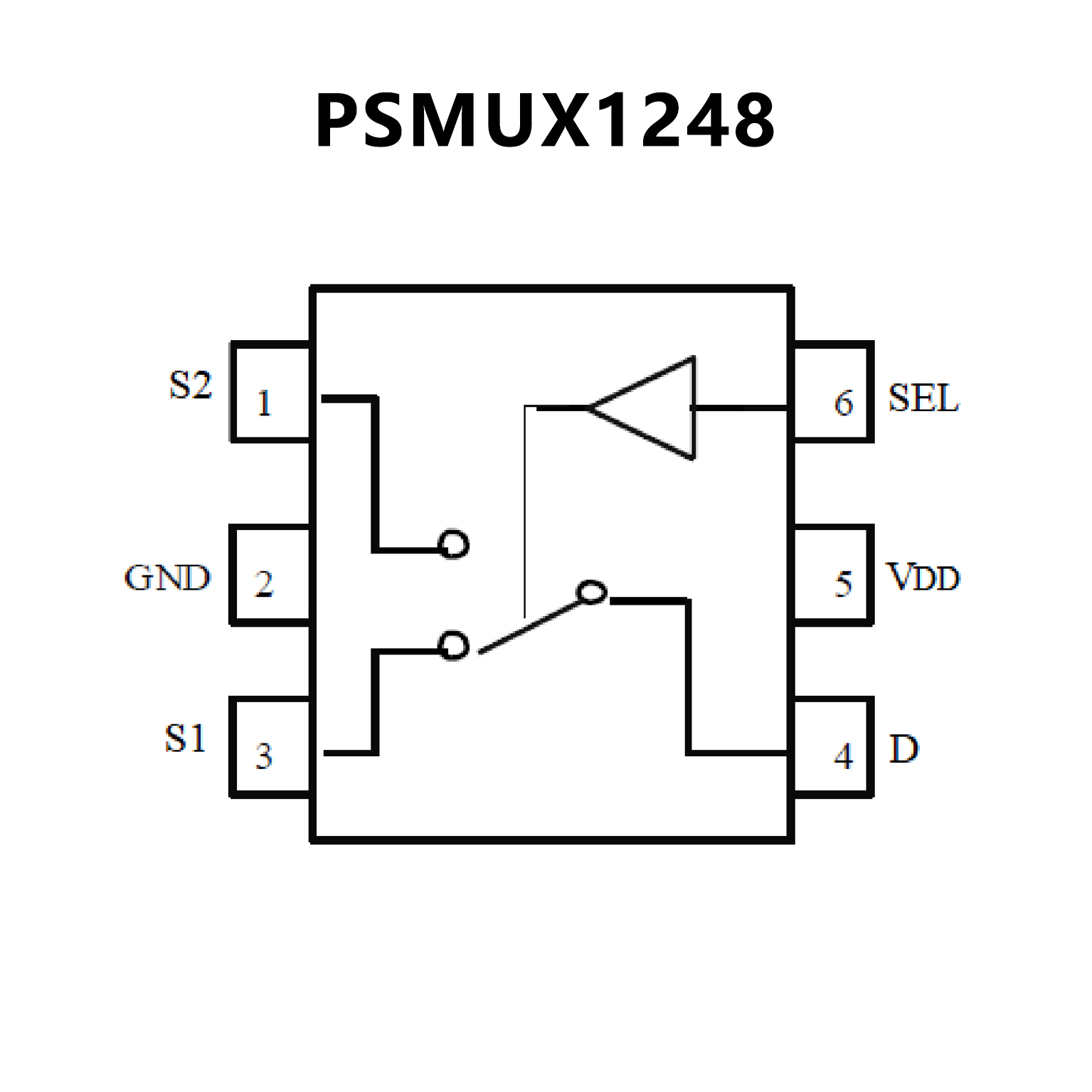

PIN CONFIGUTION

CROSS
FEATURES
• Rail-to-rail Operation
• Bidirectional Signal Path
• 1.8 V Logic Compatible
• Fail-safe Logic
• Control input overvotlage tolerance: 5.5 V
• Low On-resistance: 3 Ω
• Wide Supply Range: 1.08 V to 5.5 V
• -40°C to +125°C Operating temperature
• Low supply current: 7 nA
• Break-before-make switching

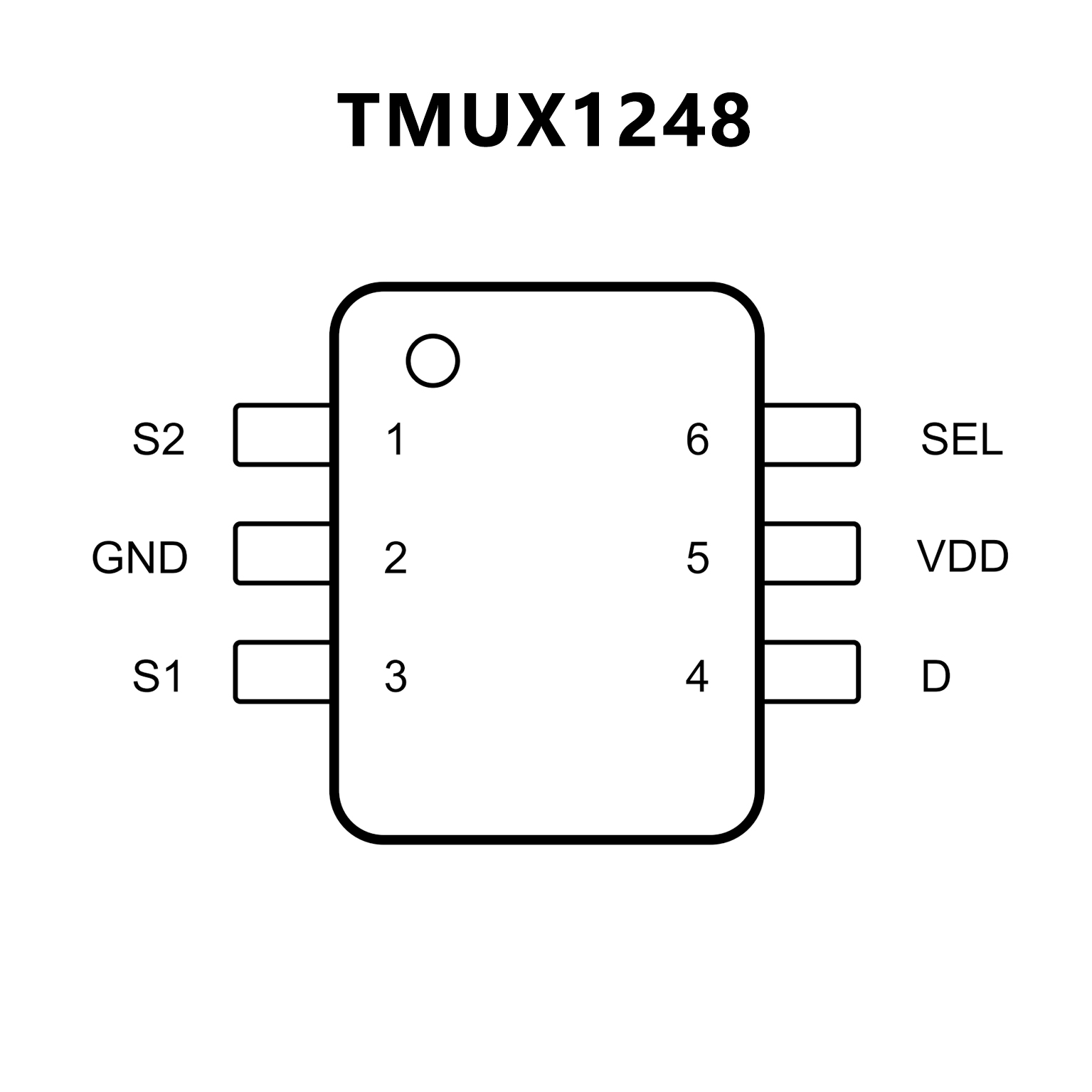

PIN CONFIGUTION
