21A, High-Efficiency, Fully Integrated, Synchronous, Boost Converter with Programmable Input Current Limit, SCT12A6 P2P MP3431.
FEATURES

• Wide Input Voltage Range: 2.7V-20V

• Wide Output Voltage Range: 4.5V-20V
• Fully Integrated 10mΩ High Side FET and
  6.5mΩ Low Side FET
• Programmable Peak Current Limit Up to 16A
• Typical Shut-down Current: 5uA
• Quiescent Current: 170uA
• Fixed 600KHz Switching Frequency
• Selectable PFM and FCCM at Light-load
• Parallel Mode
• External Soft Start and Compensation
• Output Overvoltage Protection
• Thermal Shutdown Protection
• QFN-13 3mm x 4mm Package




PIN CONFIGUTION
CROSS
MP3431 MP3431.pdf

No.14429

FEATURES

 2.7V to 13V Start-Up Voltage

• 0.8V to 13V Operation Voltage

 Up to 16V Output Voltage

 Supports 30W Average Power Load and

  40W Peak Power Load from 3.3V

 Programmable Input Current Limit

 21.5A Internal Switch Current Limit

 Integrated 6.5mΩ and 10mΩ Power MOSFET

 >95% Efficiency for 3.6V VIN to 9V/3A

 Selectable PSM, >23kHz USM, and FCCM

  in Light-Load Condition

 600kHz Fixed Switching Frequency

 Adaptive COT for Fast Transient Response

 External Soft Start and Compensation Pins

 Programmable UVLO and Hysteresis

 150°C Over-Temperature Protection (OTP)

 Available in a QFN-13 (3mmx4mm) Package

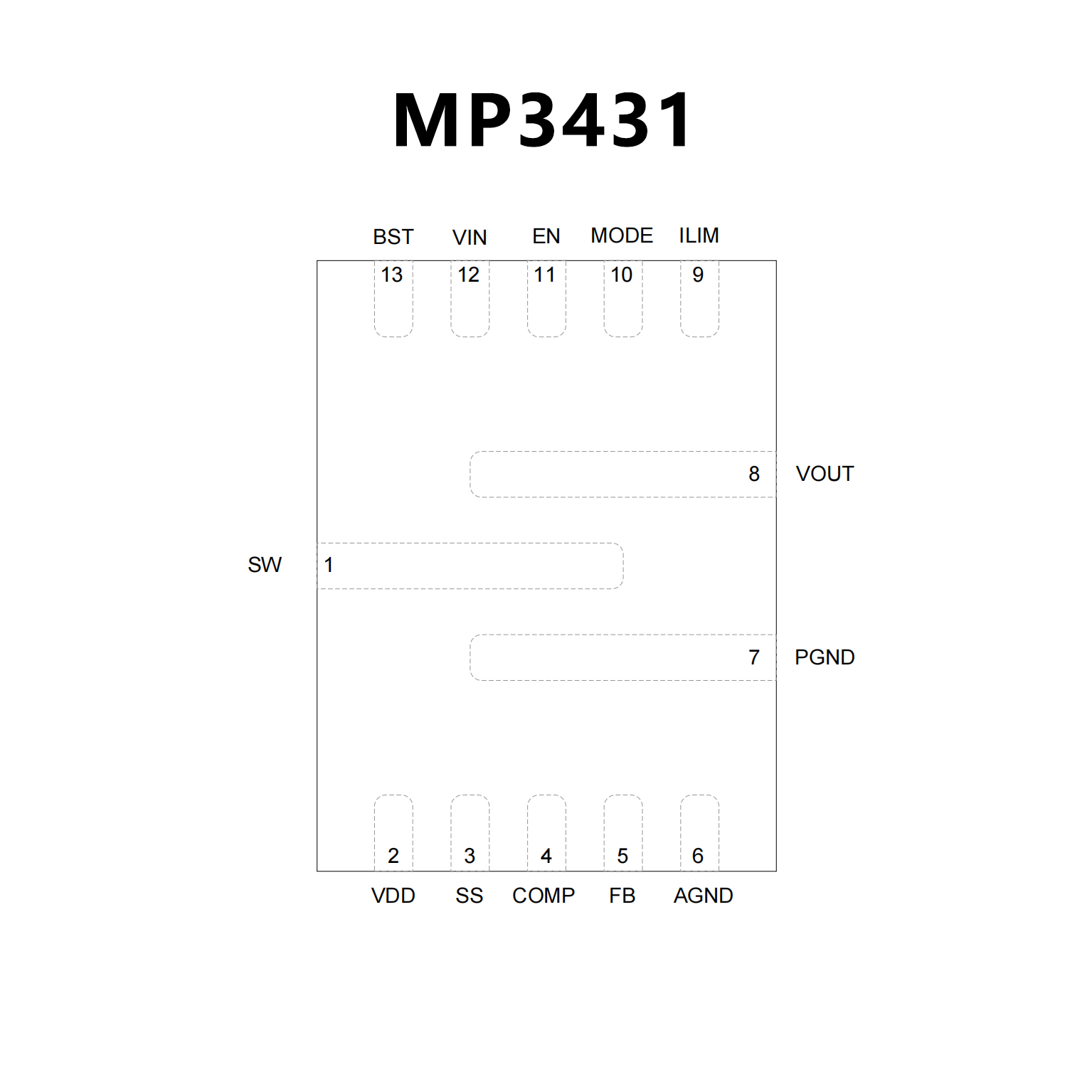

PIN CONFIGUTION
