2.8V-6V Vin 3A Synchronous Step Down Convertor, SCT2130Q Replace MPQ2179.
SCT2130Q
SCT2130Q.pdf
SCT2130Q.pdfFEATURES
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
• Input Voltage Range: 2.8V-6V
• Up to 3A Continuous Output Current
• Low Shutdown Current: 0.7uA
• 0.6V±1.1% Feedback Reference Voltage
• 2.1MHz Switching Frequency
• Integrated 25mΩ High-Side and 20mΩ Low-Side
Power MOSFETs
• Adjustable output voltage from 0.6V to 5V
• Active output discharge
• Programmable Soft Start Time
• Power Good Indicator
• Integrated Protection Feature
- Cycle-by-cycle current limit
- Under-voltage Lockout
- HICCUP Over Current Protection
- Thermal Shutdown Protection:160°C
• QFN-8L 1.5mm*2mm Package
• Available in a Wettable Flank Package

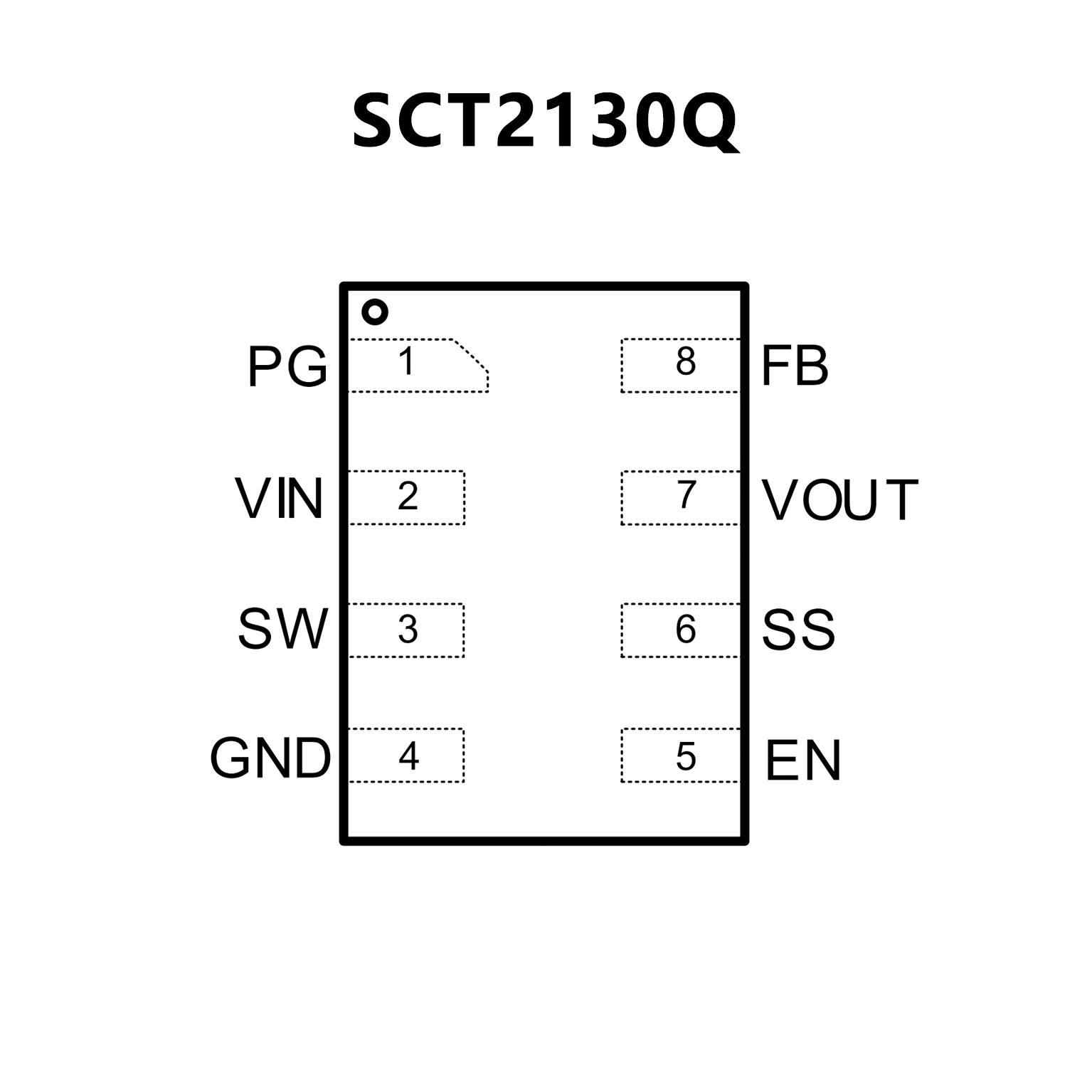

PIN CONFIGUTION
CROSS
FEATURES
• Wide 2.5V to 5.5V Operating Input Voltage Range
• Up to 3A Peak Output Current
• 2.4MHz Switching Frequency
• EN for Power Sequencing
• 1% FB Accuracy
• Output Adjustable from 0.6V
• 65mΩ and 35mΩ Internal Power MOSFET Switches
• 100% Duty On
• Output Discharge
• Power Good (PG)
• External Soft Start (SS) Control
• Output Over-Voltage Protection (OVP)
• Short-Circuit Protection (SCP) with Hiccup Mode
• Forced Continuous Conduction Mode (FCCM)
• Available in a QFN-8 (1.5mmx2mm) Package
• Available in a Wettable Flank Package
• AEC-Q100 Grade 1

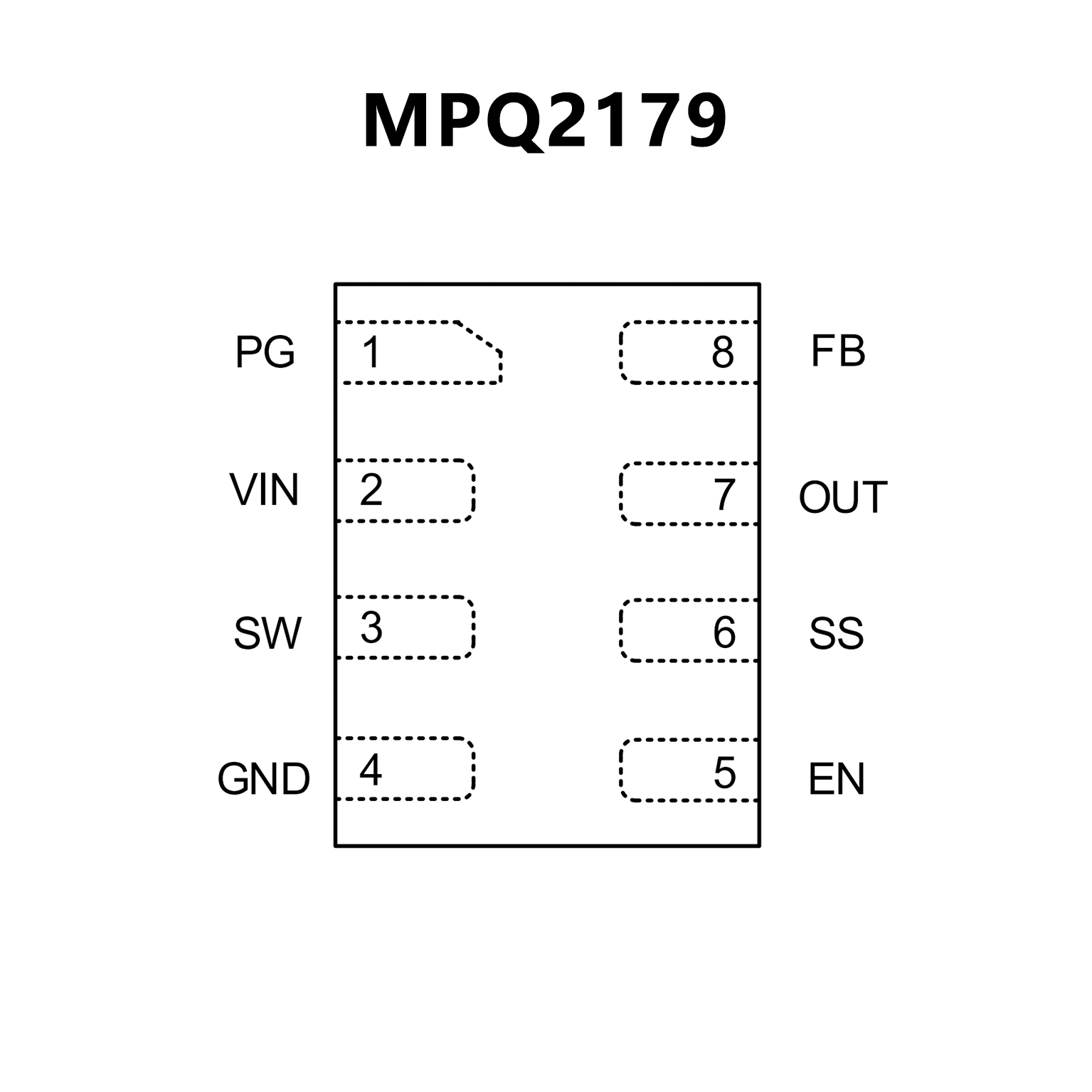

PIN CONFIGUTION
